304L Forged Steel Lap Joint Flange with 300LBS Pressure Rating
Basic Properties
Place of Origin:
China
Brand Name:
Best
Certification:
API/CE/ISO/PED
Model Number:
1/2''-48''
Trading Properties
Minimum Order Quantity:
1 Pcs
Price:
1 usd/pcs
Payment Terms:
L/C/ TT
Supply Ability:
100000 Ton/Year
Product Summary
Lap joint flange made from forged 304L steel with 300LBS pressure rating. Designed for easy assembly/disassembly in piping systems. Available in various materials and pressure classes to match specific requirements.
Product Details
Highlight:
stainless steel flanges
,carbon steel forged flanges
Name:
Lap Joint Flange
Pressure:
300LBS
Material:
304L
Place Of Origin:
China
Model Number:
RC-BL Flange
Type:
Forged Steel Flanges
Product Description
Material Selection and Nominal Pressure of Flanges
Product Specifications
Product Name: Lap Joint Flange
Pressure: 300 lbs
Material: 304L
Manufacturing: Forged Steel Flanges
Available Materials: St 37-2 / C 22-3/8 / 15 Mo 3 / 13 CrMo 44
A flange is defined as a plate type device, normally round, that is attached to the end of a pipe, fitting, valve or other object to facilitate the assembly and disassembly of a piping system.
Flanges are manufactured in all the different materials to match the material of the pipe and fittings to which they are being attached. While some flanges are made of Cast Iron, the vast majority of flanges are forged carbon steel.
Forged steel flanges are made in seven primary ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500 & Class 2500
Flange Types
- Weld Neck Flanges
- Slip-On Flanges
- Lap Joint Flanges
- Threaded Flanges
- Socket Weld Flanges
- Blind Flanges
Forged Flanges Specifications
| Parameter | Specifications |
|---|---|
| Size | ½" TO 54" |
| Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Material |
Carbon Steel: A-105, A-350 LF2 [NACE + HIC] etc. Alloy Steel: F-5, F-9, F-11, F-22, F-91 etc. Stainless Steel: SS 304, SS 304L SS316, SS 316L, SS 316Ti, SS 321, SS 347, SS 304H, 317L, 347H, Etc. Duplex SS: F-51, F-55 High Strength Steel: A694 Gr 52, 60, 65, 70, AISI 4130, 4140 Nickel Alloys: Monel 400, Inconel 625, Inconel 825, Alloy 20, etc. |
| Standards | ASME B 16.5, ASME B 16.47, API 6A |
| Type | SORF, WNRF, SWRF, BLRF, Threaded etc. |
| Specials | Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc. |
150lb Flange Dimensions
| Nominal Bore | Pipe OD A | Flange dia. B | Raised Face dia. D | Flange Thickness T | Welding Neck | Slip-on Screwed Socket-weld | Bolt PCD | No. of Bolts | Bolt Hole dia. |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 21.4 | 88.9 | 34.9 | 11.1 | 47.6 | 15.9 | 60.3 | 4 | 15.9 |
| 20 | 27.0 | 98.4 | 42.9 | 12.7 | 52.4 | 15.9 | 69.8 | 4 | 15.9 |
| 25 | 34.1 | 107.9 | 50.8 | 14.3 | 55.6 | 17.5 | 79.4 | 4 | 15.9 |
| 32 | 42.9 | 117.5 | 63.5 | 15.9 | 57.1 | 20.6 | 88.9 | 4 | 15.9 |
| 40 | 48.4 | 127.0 | 73.0 | 17.5 | 61.9 | 22.2 | 98.4 | 4 | 15.9 |
| 50 | 60.3 | 152.4 | 92.1 | 19.0 | 63.5 | 25.4 | 120.6 | 4 | 19.0 |
| 65 | 73.0 | 177.8 | 104.8 | 22.2 | 69.8 | 28.6 | 139.7 | 4 | 19.0 |
| 80 | 88.9 | 190.5 | 127.0 | 23.8 | 69.8 | 30.2 | 152.4 | 4 | 19.0 |
| 90 | 101.6 | 215.9 | 139.7 | 23.8 | 71.4 | 31.7 | 177.8 | 8 | 19.0 |
| 100 | 114.3 | 228.6 | 157.2 | 23.8 | 76.2 | 33.3 | 190.5 | 8 | 19.0 |
| 125 | 141.3 | 254.0 | 185.7 | 23.8 | 88.9 | 36.5 | 215.9 | 8 | 22.2 |
| 150 | 165.1 | 279.4 | 215.9 | 25.4 | 88.9 | 39.7 | 241.3 | 8 | 22.2 |
| 150 | 168.3 | 279.4 | 215.9 | 25.4 | 88.9 | 39.7 | 241.3 | 8 | 22.2 |
| 200 | 219.1 | 342.9 | 269.9 | 28.6 | 101.6 | 44.4 | 298.4 | 8 | 22.2 |
| 250 | 273.1 | 406.4 | 323.8 | 30.2 | 101.6 | 49.2 | 361.9 | 12 | 25.4 |
| 300 | 323.9 | 482.6 | 381.0 | 31.7 | 114.3 | 55.6 | 431.8 | 12 | 25.4 |
| 350 | 355.6 | 533.4 | 412.7 | 34.9 | 127.0 | 57.1 | 476.2 | 12 | 28.6 |
| 400 | 406.4 | 596.9 | 469.9 | 36.5 | 127.0 | 63.5 | 539.7 | 16 | 28.6 |
| 450 | 457.2 | 635.0 | 533.4 | 39.7 | 139.7 | 68.3 | 577.8 | 16 | 31.7 |

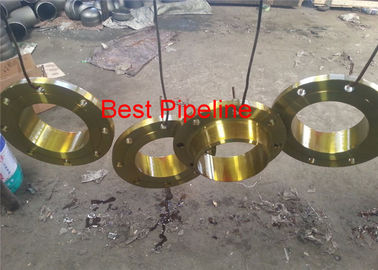

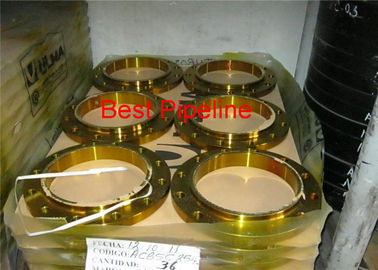

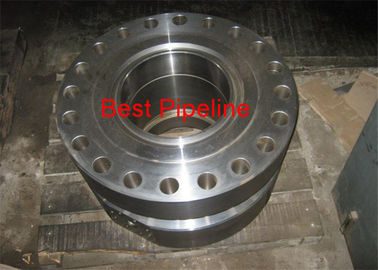

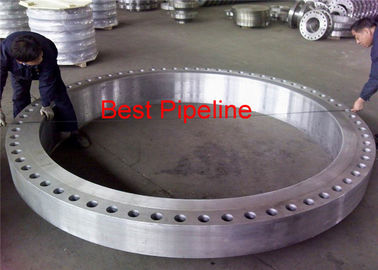

Product Images
