304L Material 300LBS Pressure JIS 7805-1976 Standard Slip-On Flange and Lap Joint Flange
Basic Properties
Place of Origin:
China
Brand Name:
Best
Certification:
API/CE/ISO/PED
Model Number:
1/2''-48''
Trading Properties
Minimum Order Quantity:
1 Pcs
Price:
1 usd/pcs
Payment Terms:
L/C/ TT
Supply Ability:
100000 Ton/Year
Product Summary
Lap joint flange made from forged 304L steel, rated for 300 lbs pressure. Ideal for easy assembly/disassembly in piping systems. Available in various sizes and materials to match project requirements.
Product Details
Highlight:
stainless steel flanges
,carbon steel forged flanges
Name:
Lap Joint Flange
Pressure:
300LBS
Material:
304L
Place Of Origin:
China
Model Number:
RC-BL Flange
Type:
Forged Steel Flanges
Product Description
1kg/Cm² JIS 7805-1976 (KS 7815-85) 1 SLIP-ON WELDING STEEL PIPE FLANGES - FLANGE FOR EXE.GAS PIPE (F-TYPE)
Product Overview
Product Name: Lap Joint Flange
Pressure: 300 lbs
Material: 304L
Manufacturing: Forged Steel Flanges
Pressure: 300 lbs
Material: 304L
Manufacturing: Forged Steel Flanges
A flange is defined as a plate-type device, typically round, that is attached to the end of a pipe, fitting, valve, or other object to facilitate the assembly and disassembly of a piping system.
Flanges are manufactured in various materials to match the pipe and fittings to which they are attached. While some flanges are made of cast iron, the vast majority are forged carbon steel.
Flange Types
- Weld Neck Flanges
- Slip-On Flanges
- Lap Joint Flanges
- Threaded Flanges
- Socket Weld Flanges
- Blind Flanges
Forged Steel Flange Specifications
Forged steel flanges are available in seven primary pressure ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500 & Class 2500
Size Range
½" TO 54"
Pressure Rating
150#, 300#, 600#, 900#, 1500#, 2500#
Standards
ASME B 16.5, ASME B 16.47, API 6A
Types
SORF, WNRF, SWRF, BLRF, Threaded, etc.
Available Materials
Carbon Steel
A-105, A-350 LF2 [NACE + HIC] etc.
Alloy Steel
F-5, F-9, F-11, F-22, F-91 etc.
Stainless Steel
SS 304, SS 304L, SS316, SS 316L, SS 316Ti, SS 321, SS 347, SS 304H, 317L, 347H, etc.
Duplex SS
F-51, F-55
High Strength Steel
A694 Gr 52, 60, 65, 70, AISI 4130, 4140
Nickel Alloys
Monel 400, Inconel 625, Inconel 825, Alloy 20, etc.
Special Components
Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.
150lb Flange Dimensions
| Nominal Bore | Pipe OD A | Flange dia. B | Raised Face dia. D | Flange Thickness T | Welding Neck | Slip-on Screwed Socket-weld | Bolt PCD | No. of Bolts | Bolt Hole dia. |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 21.4 | 88.9 | 34.9 | 11.1 | 47.6 | 15.9 | 60.3 | 4 | 15.9 |
| 20 | 27.0 | 98.4 | 42.9 | 12.7 | 52.4 | 15.9 | 69.8 | 4 | 15.9 |
| 25 | 34.1 | 107.9 | 50.8 | 14.3 | 55.6 | 17.5 | 79.4 | 4 | 15.9 |
| 32 | 42.9 | 117.5 | 63.5 | 15.9 | 57.1 | 20.6 | 88.9 | 4 | 15.9 |
| 40 | 48.4 | 127.0 | 73.0 | 17.5 | 61.9 | 22.2 | 98.4 | 4 | 15.9 |
| 50 | 60.3 | 152.4 | 92.1 | 19.0 | 63.5 | 25.4 | 120.6 | 4 | 19.0 |
| 65 | 73.0 | 177.8 | 104.8 | 22.2 | 69.8 | 28.6 | 139.7 | 4 | 19.0 |
| 80 | 88.9 | 190.5 | 127.0 | 23.8 | 69.8 | 30.2 | 152.4 | 4 | 19.0 |
| 90 | 101.6 | 215.9 | 139.7 | 23.8 | 71.4 | 31.7 | 177.8 | 8 | 19.0 |
| 100 | 114.3 | 228.6 | 157.2 | 23.8 | 76.2 | 33.3 | 190.5 | 8 | 19.0 |
| 125 | 141.3 | 254.0 | 185.7 | 23.8 | 88.9 | 36.5 | 215.9 | 8 | 22.2 |
| 150 | 165.1 | 279.4 | 215.9 | 25.4 | 88.9 | 39.7 | 241.3 | 8 | 22.2 |
| 150 | 168.3 | 279.4 | 215.9 | 25.4 | 88.9 | 39.7 | 241.3 | 8 | 22.2 |
| 200 | 219.1 | 342.9 | 269.9 | 28.6 | 101.6 | 44.4 | 298.4 | 8 | 22.2 |
| 250 | 273.1 | 406.4 | 323.8 | 30.2 | 101.6 | 49.2 | 361.9 | 12 | 25.4 |
| 300 | 323.9 | 482.6 | 381.0 | 31.7 | 114.3 | 55.6 | 431.8 | 12 | 25.4 |
| 350 | 355.6 | 533.4 | 412.7 | 34.9 | 127.0 | 57.1 | 476.2 | 12 | 28.6 |
| 400 | 406.4 | 596.9 | 469.9 | 36.5 | 127.0 | 63.5 | 539.7 | 16 | 28.6 |
| 450 | 457.2 | 635.0 | 533.4 | 39.7 | 139.7 | 68.3 | 577.8 | 16 | 31.7 |

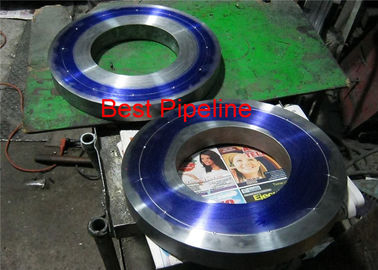

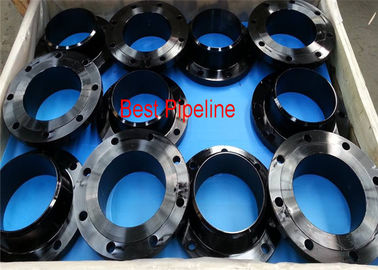

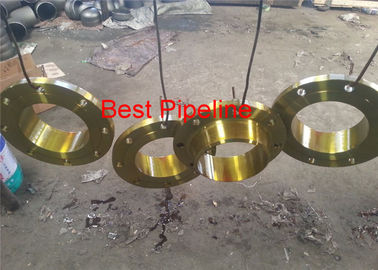

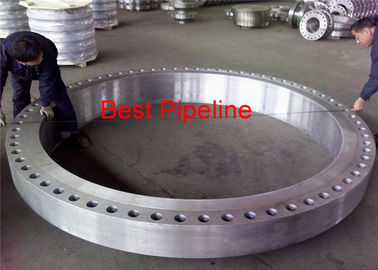

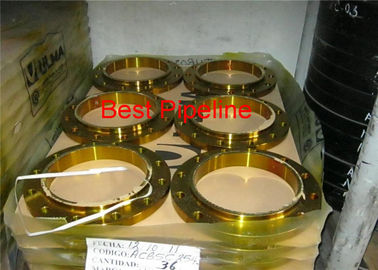

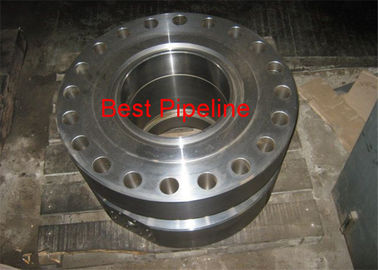

Product Images
