ASME B16.47 Flat Face Weld Neck Flange with 300lbs Pressure Long Weld Neck Flange
Basic Properties
Place of Origin:
China
Brand Name:
Best
Certification:
API/CE/ISO/PED
Model Number:
1/2''-48''
Trading Properties
Minimum Order Quantity:
1 Pcs
Price:
1 usd/pcs
Payment Terms:
L/C/ TT
Supply Ability:
100000 Ton/Year
Product Summary
ASME B16.47 Large Diameter Forged Steel Flanges - Welding Neck & Blind Class 300 (PN 50). Made from carbon steel, stainless steel, and alloy materials. Certified with API and ISO9001. Available in various types including long weld neck, spectacle blinds, and special ring flanges.
Product Details
Highlight:
weld neck flanges
,stainless steel flanges
Name:
LARGE DIAMETER FORGED STEEL FLANGES
Pressure:
300lbs
Standard:
ASME B16.47
Place Of Origin:
China
Model Number:
RC-BL Flange
Type:
WELDING NECK & BLIND
Product Description
ASME B16.47 Flat Face Weld Neck Flange, Long Weld Neck Flange 300lbs Pressure
Product Overview
Product Name: LARGE DIAMETER FORGED STEEL FLANGES WELDING NECK & BLIND CLASS 300 (PN 50) ASME B16.47 SERIES A ASTM A-105
Available Flange Types
- ANSI/ASME Forged Flanges
- MSS-SP-44 Flanges / ANSI B16.47 Series A
- API Type 6A - RTJ Face Flanges
- API-605 Flanges / ANSI B16.47 Series B
- A.G.A. Orifice Unions - Furnished with or without Hardware
- ASME Boiler Code Flanges
- Class 125 Lightweight Flanges - For low pressure applications
- Plate Flanges - From 1/4" through 8" thick, including AWWA C-207 and all other special designs
- ANSI Long Weld Necks & Special Body Connectors
- Spectacle Blinds
- Special Ring Flanges
Material Specifications
Carbon Steel
ASTM/ASME SA-105, A-350 LF-2, LF-3, A694, SA-516-70, A36
Chrome Alloys
A-182-F-1, F-5, F-6, F-7, F-9, F-11, F-12, F-22, F-51
Stainless Steel
A-182 - F-304, 304L, 316, 316L, 309, 310, 317L, 321, 347, Alloy 20
Aluminum
1100, 2014, 3003, 5083, 5086, 6061, 7075
Other Alloys
Hastalloy, Inconel, Incolloy, Monel, Copper, Naval Brass, Titanium
Technical Specifications
| Category | Specifications |
|---|---|
| Material |
Carbon steel: ASTM A105, A350 LF1/LF2, CL1/CL2, A234, S235JRG2, P245GH, P250GH, P280GH, 16MN, 20MN, 20# Stainless steel: ASTM A182, F304/304L, F316/316L Alloy steel: ASTM A182 F12, F11, F22, F5, F9, F91, etc. |
| Standards | ANSI, DIN, JIS, UNI, EN |
| Types | Welding Neck, Slip On, Blind, Long Welding Neck, Lap Joint, Socket Welding, Threaded, Flat Flange |
| Surface Treatment | Anti-rust oil, clear/black/yellow lacquer, hot-dipped galvanized, electrical galvanized |
| Connection | Welding, Threaded |
| Manufacturing | Forged, Casting |
| Size Range | DN10 - DN3600 |
| Heat Treatment | Normalizing, Annealing, Quenching + Tempering |
| Certifications | API, ISO9001:2008, ISO14001:2004 |
| Applications | Water works, Shipbuilding, Petrochemical & Gas, Power industry, Valve industry, General pipe connecting projects |

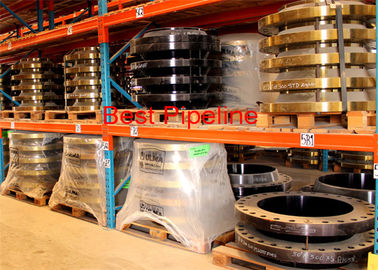

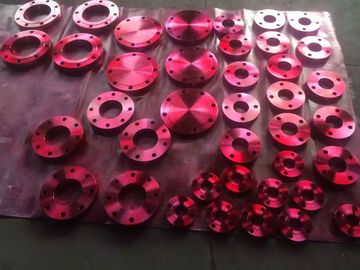

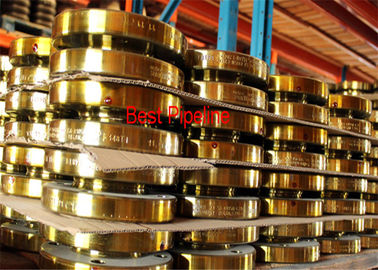

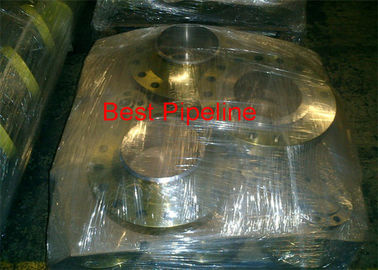

Product Images
Manufacturing Process
Flange Types Diagram
