PN-H-74200 Black ERW Steel Pipe Unalloyed Steel 12Al S195T Plain Ends

Certification
China BEST PIPELINE EQUIPMENT CO.,LTD certification
China BEST PIPELINE EQUIPMENT CO.,LTD certification
I'm Online Chat Now

PN-H-74200 Black ERW Steel Pipe Unalloyed Steel 12Al S195T Plain Ends

PN-H-74200  Black ERW Steel Pipe Unalloyed  Steel  12Al  S195T Plain Ends
PN-H-74200  Black ERW Steel Pipe Unalloyed  Steel  12Al  S195T Plain Ends PN-H-74200  Black ERW Steel Pipe Unalloyed  Steel  12Al  S195T Plain Ends PN-H-74200  Black ERW Steel Pipe Unalloyed  Steel  12Al  S195T Plain Ends PN-H-74200  Black ERW Steel Pipe Unalloyed  Steel  12Al  S195T Plain Ends

Large Image :  PN-H-74200 Black ERW Steel Pipe Unalloyed Steel 12Al S195T Plain Ends

Product Details:

Place of Origin: China
Brand Name: Best
Certification: API /CE / ISO /TUV
Model Number: 1/2'' -48''

Payment & Shipping Terms:

Minimum Order Quantity: 1 TONS
Price: 450 USD/TON
Packaging Details: 1) In bundle with strip; 2) First packing by plastic bag then strip; Details packing please see the picture in the detial description.
Delivery Time: Shipped in 25 days after payment
Payment Terms: L/C, T/T
Supply Ability: 100000 Ton/Year
Detailed Product Description
Standard: PN-H-74200 DIN 2440 DIN 2441 EN 10255 Grade: 12X 12Al St33 S185 S195T
Technique: SAW/UOE Finish: Bared
Keyword: Welded Steel Pipe/ Tubes Inspection: With Hydraulic Testing
Surface: Barded /Painting/3PE
High Light:

erw steel tube

,

erw mild steel pipe

Production Information : PN-H-74200 Black ERW Steel tubes made of unalloyed steel with threaded or plain ends Grade : 12X 12Al St33 S185 S195T




Pipe type Steel grade Pipe resistance properties
    Rm [Mpa] Re [Mpa] A5 [%]
    NZF NBK GZF GBK BKW BK NZF NBK NZF NBK GZF GBK BKW BK
PRECISE R35, R45, 18G2A according to PN-91/H-74240 10, 20, 35, 45 according to PN-H-74245:1996 R35 360 340 400 450 215 24 26 9 6
  R45 430 400 450 520 255 22 24 8 5
  18G2A 510 490 550 600 365 22 24 7 4
  10 345 315 355 390 195 25 25 10 6
  20 440 390 390 490 225 21 21 8 4
  35 540 510     255 17 17
  45 640 590     295 14 14
AIRCRAFT 10, 20, 35, 45, 18G2A according to PN-H 74245:1996 10 345 315 355 390 195 25 25 10 6
  20 440 390 390 490 225 21 21 8 4
  35 540 510     255 17 17
  45 640 590     295 14 14
  18G2A 510 490 540 490 365 22 24 6 4
PIPELINE R, R35, R45, R55, 18G2A according to PN-84/H-74220 10, 20, 35, 45 according to PN-H-74245:1996   GZF GBK   GZF GBK
  R35 345 235 25
  R45 440 255 21
  R55 540 295 17
  18G2A 510 350 22
  10 315 195 25
  20 390 225 21
  35 510 255 17
  45 590 295 14
SHIP BUILDING R35, R45, A according to BN-85/0648-62 R35 345 235 25
  R45 440 255 21
  A 400-490 235 22
BOILER K10, K18, 16M according to PN-85/H-74252 K10 360-480 235 25
  K18 440-540 255 21
  16M 440-540 285 22
  15HM 440-570 295 22
BRAKING according to PN-H-74249:1996 R35 345 235 25
PIPELINE AND BOILER according to BV:1992, Section 4-4 360 360-480 (K10) 215 24
  410 410-530 (K18 Io) 235 22
BOILER AND BOILER III according to GL: 1992, Section 2 360 360-480 (K10) 235 25
  410 410-530 (K18 IIIo) 255 21
PIPELINE, STRUCTURAL, BOILER according to LR:1998, Part 2, Chapter 6 Sec. 2 360 360-480 (R35) 215 24
  410 410-530 (R45) 235 22
  360 360-480 (K10) 215 24
PIPELINE, STRUCTURAL, BOILER according to DNV:1996, Part 2,Chapter 2 Sec.1 NVD 400-520 (R35) 235 22
  NVA 400-520 (K18 Io) 235 22
  NVD 400-520 (K10) 235 22
SHIP BUILDING according to DNV:1996, Part 2, Chapter 2 Sec.4 TS 360 360-500 235 25
  TS 410 410-550 235 22
A CLASS PIPELINE STEEL FOR GAS PIPELINES according to PN-H-74221:1994 L210 335-475 210 25
  L240 370-510 240 21
  L290 420-560 290 20
  L360 460-600 360 19


Packaging & Delivery

Packaging Details

1) In bundle with strip;
2) First packing by plastic bag then strip;
Details packing please see the picture in the detial description.
3) In bulk
4)Client" requirements
Delivery:
1)Container:
25 tons/container for pipe with usual outer diameter.
For 20" container the max length is 5.8m;
For 40" container the max length is 11.8m.
2) Bulk carrier:
It is no requirements to the length of the pipe. But its booking space time is long.



.Coating Standard:



ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water ISO 21809 Petroleum and natural gas industries -- External coatings for buried or submerged pipelines used in pipeline transportation systems DIN 30670 Polyethylene coatings of steel pipes and fittings



.End:



square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled



.Surface:



Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,? Fusion Bond Epoxy, 3-layers PE)



.Application:



It products are widely applied to water, sewage, gas, air,heating steam and low pressure liquid transportation pipes, wire casing, scaffolding , fire use for metal structural.

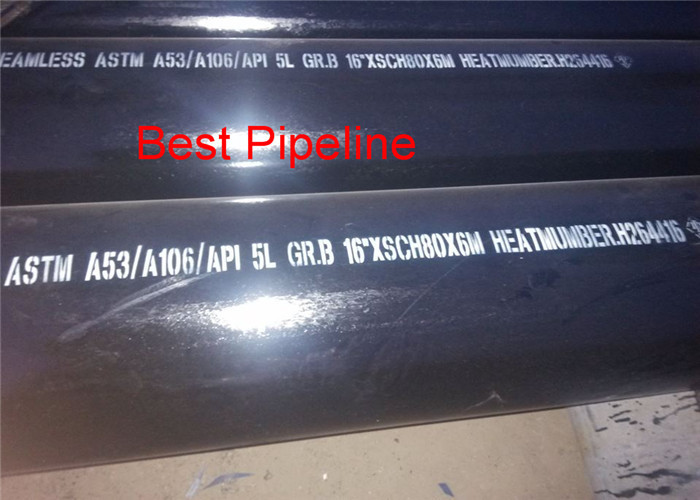

Product Show



PN-H-74200  Black ERW Steel Pipe Unalloyed  Steel  12Al  S195T Plain Ends 0

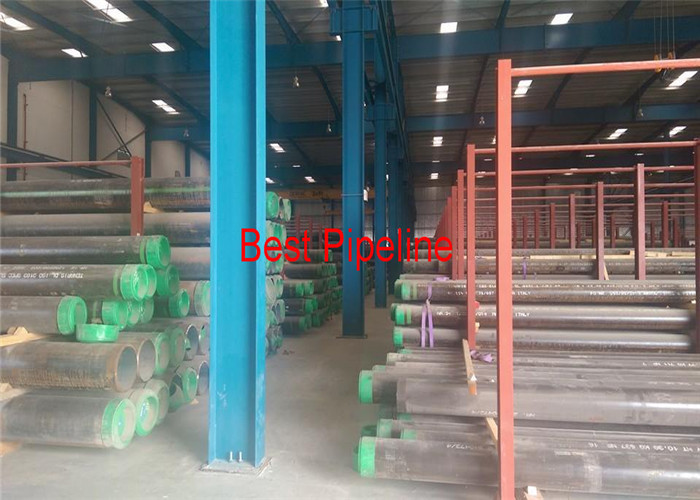

Production Line

PN-H-74200  Black ERW Steel Pipe Unalloyed  Steel  12Al  S195T Plain Ends 1

PN-H-74200  Black ERW Steel Pipe Unalloyed  Steel  12Al  S195T Plain Ends 2



Testing :

PN-H-74200  Black ERW Steel Pipe Unalloyed  Steel  12Al  S195T Plain Ends 3
