20MNV6 BS4360 GR Alloy Steel Seamless Pipes High Yield With Ferritic Pearlitic Steel
| Place of Origin | China/Japan |
|---|---|
| Brand Name | BEST |
| Certification | API, CE, PED, ISO |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Pipes May be furnished bard or coated and with capped ends |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C /TT |
| Supply Ability | 10000ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Europe | EN10924-1 | Germany | W.Nr1.5217 20MNV6 |
|---|---|---|---|
| Great Britain | BS4360 GR | FRance | NFA49312 20MV6 |
| Packing | Pipes May Be Furnished Bard Or Coated And With Capped Ends | Specific Qualification | TUV:AD WO-TRD100 / PED97/23/EC /IBR |
| Test | Heat Analysis/Tensile Test/Impact Test /NDE/PMI | OD Tolerance | ±1% Or ±0.5mm , Whichever Is The Greater |
| High Light | alloy steel pipe,alloy steel seamless tubes |
||
Product Description
Name : 20MNV6/280X Alloy seamless Steel Pipes with high yield and tensile strength due to the micro alloying effect
Principal application fields :
Ferritic pearlitic steel:
20MnV6 is a carbon-manganese steel micro alloyed with vanadium, characterized by excellent machinability and weldability with high yield and tensile strength due to the micro alloying effect of the vanadium. The low carbon content and the vanadium addition allows surface hardening by carburizing or nitriding. It will also respond to induction hardening with moderate improvement in tensile and yield strength.
20MnV6 is used extensively by all industry sectors for a wide range of applications utilizing its considerable machinability.
Typical applications are: Chrome plating, cylinders, conveyor rolls, hollow shafts, nuts, rings.
1.CHEMICAL COMPOSITION
| Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
| Ck45 | 0.42-0.50 | 0.50-0.80 | 0.04 | 0.035 | 0.035 | ||
| ST52 | 0.22 | 1.6 | 0.55 | 0.035 | 0.04 | ||
| 20MnV6 | 0.16-0.22 | 1.30-1.70 | 0.10-0.50 | 0.035 | 0.035 | 0.10-0.20 | |
| 42CrMo4 | 0.38-0.45 | 0.60-0.90 | 0.15-0.40 | 0.03 | 0.03 | 0.90-1.20 | |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | 0.80-1.10 |
2.MECHANCIAL PROPERTIES
| Material | T.S N/MM2 | Y.S N/MM2 | E%(MIN) | CHARPY | CONDITION |
| CK45 | 610 | 355 | 15 | >41J | NORMALIZE |
| CK45 | 800 | 630 | 20 | >41J | Q + T |
| ST52 | 500 | 355 | 22 | NORMALIZE | |
| 20MnV6 | 750 | 590 | 12 | >40J | NORMALIZE |
| 42CrMo4 | 980 | 850 | 14 | >47J | Q + T |
| 40Cr | 1000 | 800 | 10 | Q + T |
3. SUPPLY CONDITION :Ground and chrome plated
4. CHROME THICKNESS : 20 to 30 micron
5. SURFACE ROUGHNESS : Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA : ISO f7 on the diameter
7. OVALITY : Half of the tolerance ISO f7
8. STRAIGHTNESS : ≤0.2MM/M
9. SURFACE HARDNESS : 850-1150HV (vickers 100g)
10. COHESION No cracks , breaking or detaching after thermic shock (warming up at 300 celsius degrees and cooling in water)
11. POROSITY : Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-1
12. CORROSION RESISTANCE Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY : Good
14. PACKING : Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE : All certificate related with material heat treatment and plating is required

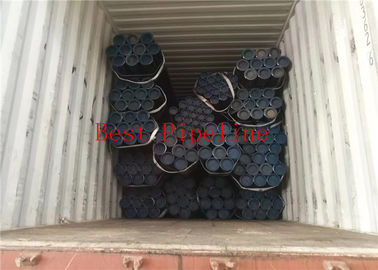

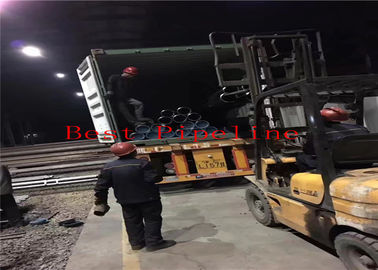

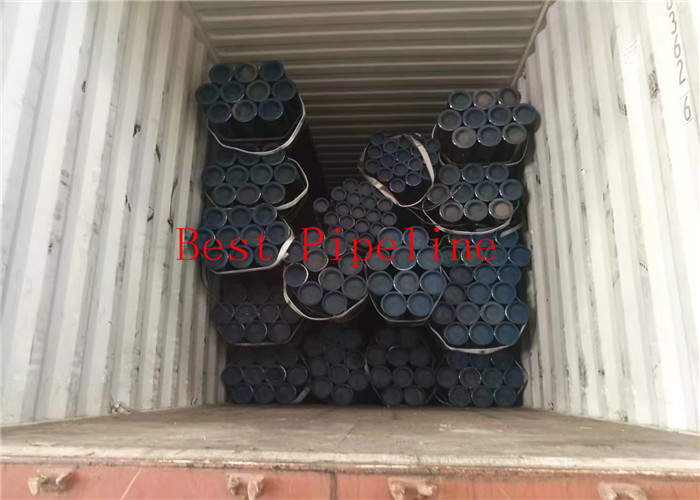

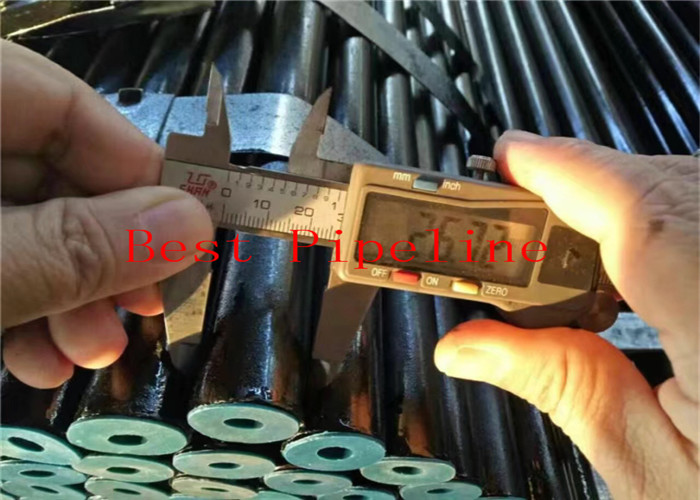

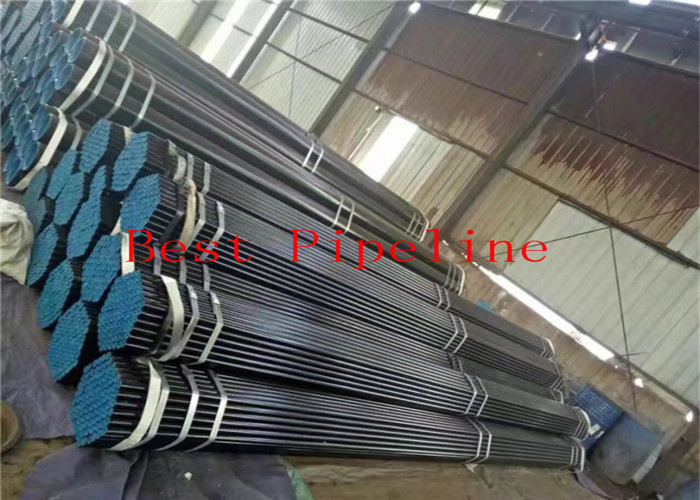

20MNV6/280X Alloy seamless Steel Pipes Pictures
