440c Seamless Stainless Steel Tubing Round Bar Diameter 3-800mm F7 20MNV6/280X

Place of Origin China
Brand Name Best
Certification API/CE/ISO/PED
Model Number 40mm--360mm
Minimum Order Quantity 1 Pcs
Price 500 usd/ton
Packaging Details 30 days normally, according to order quantity
Delivery Time 30 days normally, according to order quantity
Payment Terms L/C, D/A, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000 Ton/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard AISI, ASTM, DIN, EN, GB, JIS Type Round
Delivery State Annealing/Quenching Dimensions 40mm--360mm
Application Annealing/Quenching Length According To Order(1.5m--6m)
High Light

alloy steel seamless tubes

,

seamless alloy steel tube

Leave a Message
Product Description

Product Name : 440c stainless steel round bar Round Bar : Diameter 3-800mm



Product Information :



Diameter 40mm--360mm
Surface According to order
Delivery state Annealing/Quenching and tempering
Length according to order(1.5m--6m)
Tolerance according to order
Product Keywords super duplex stainless steel plate price per kg,steel round bar,steel plate 3mm thick







Chemical composition

material
C
Si
Mn
P
S
Cr
Ni
Mo
Cu
35CrMoA
0.34-0.39
0.17-0.37
0.40-0.70
0.015
max
0.010
max
0.80-1.10
0.30
max
0.15-0.25
0.25max
42CrMoA
0.39-0.45
0.17-0.37
0.50-0.80
0.015
max
0.010
max
0.90-1.20
0.20
max
0.20-0.25
0.25max

Equivalent Steel Grade

DIN
ASTM A29
JIS G4105
BS
GB



EN ISO 10250
1.7225
4140
SCM440
708M40/708A42/709M40
42CrMo
42CrMo4

Mechanical Properties

Grade
Tensile Strength
Mpa
Yield Strength
Mpa
Elongation
%
Reduction
%
-40℃Akv2/J
Hardness
10.9
≥1040
≥940
≥9
≥48
≥50
HRC32-39
8.8
≥830
≥660
≥12
≥52
≥70
HRC23-34







Surface Treatment Bar: Origin Black, Origin Annealing bright, Turned, Peeled, Grinded

Heat Treatment/ Anealing
1) Forging
Preheat the steel carefully, then raise the temperature to 1150-1200°C for forging. Do not forge below 850°C.
2)Annealing
Heat the AISI 4140 slowly to 800-850°C and allow enough time for the steel to be thoroughly heated. Cool slowly in the furnace to 480°C followed by air cooling.
3)Stress Relieving
When parts are heavily machined, ground or otherwise subject to cold work, stress relieving will be beneficial prior to hardening.
4)Hardening
AISI 4140 steel is usually supplied ready heat treated to 18-22HRC. If further heat treatment is required annealed AISI 4140 should be heated slowly to 840-875°C and after adequate soaking at this temperature quench in oil. Temper as soon as the tools reach room temperature.
5)Tempering
Heat the AISI 4140 carefully to a suitable temperature selected by reference to a tempering chart or table (usually between 550-700°C, soak at the temperature for 2 hours per 25mm of ruling section, then allow to cool in air. Tempering between 250-375°C is not advised as tempering within this range will seriously reduce the impact value.



Quality :



Our products will be from black round bar. We will order the raw material from first class steel making companies to guarantee the inner quality. You can also lock the raw material manufacturer for your order.

We will continually improves and expands the quantity and quality of our product which exactly meet customers need. We do whatever it takes to make our clients happy.
We will develop long-term commercial and technical partnerships with customers. And we are committed to continual quality improvement of all internal processes. The success of our quality program is affirmed by our strong customer retention rate.



Certification :



Achieving the ISO 9001:2008 Certification is just one example of our Products’ dedication to quality and continuous improvement. Each employee is responsible for understanding company expectations and adhering to the procedures of our Quality Management System.
Our Products ensures customers receive the material ordered with accurate supporting paperwork. Customers can count on proper documentation, on-time performance and effective follow-up.



Our company

Our story
Since beginning operation in 1996, We has been dedicated to providing more than just material supply, We has helped customers reduce costs and improve the bottom line. This approach to partnering with customers has made our Products a leader among Steel Round bar and one of the fastest growing companies in China.



Product Show

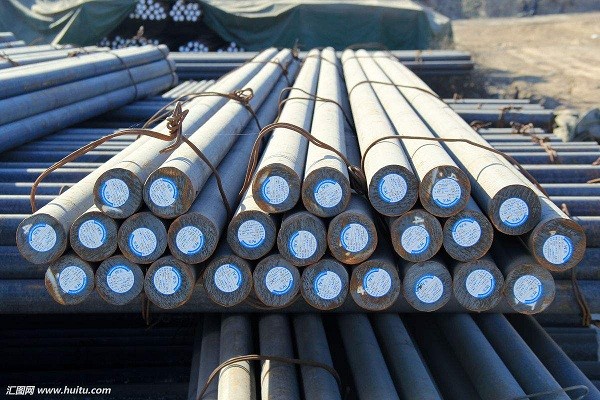

440c Seamless Stainless Steel Tubing Round Bar Diameter 3-800mm F7 20MNV6/280X 0

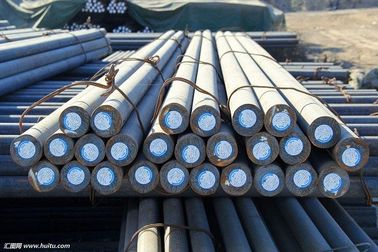

440c Seamless Stainless Steel Tubing Round Bar Diameter 3-800mm F7 20MNV6/280X 1

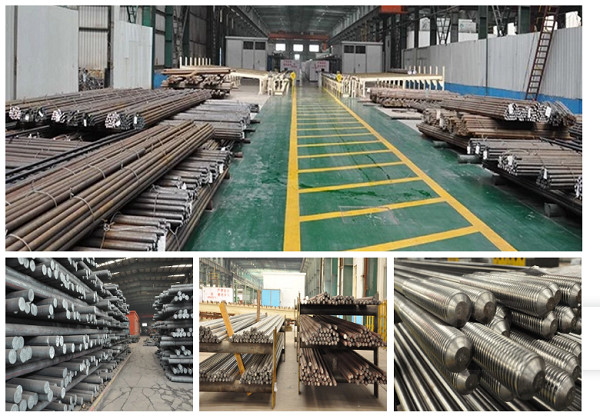

440c Seamless Stainless Steel Tubing Round Bar Diameter 3-800mm F7 20MNV6/280X 2

Quality Control

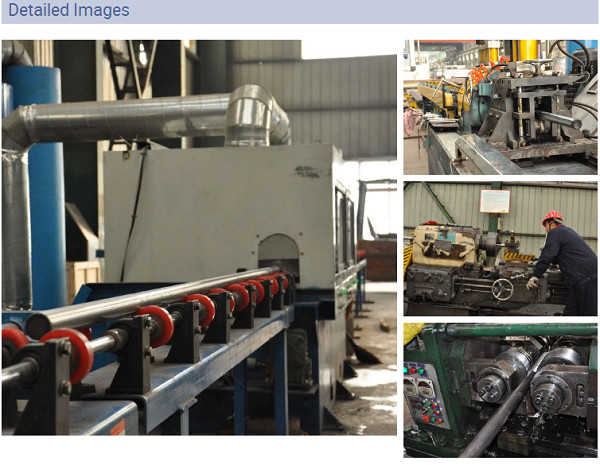

440c Seamless Stainless Steel Tubing Round Bar Diameter 3-800mm F7 20MNV6/280X 3
