X52 Nace MR0175 Incoloy Pipe Steel API Spec 5L 2004 Specification For Line Pipe
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API /CE / ISO /TUV |
| Model Number | 1/2'' -48'' |
| Minimum Order Quantity | 1 TONS |
| Price | 450 USD/TON |

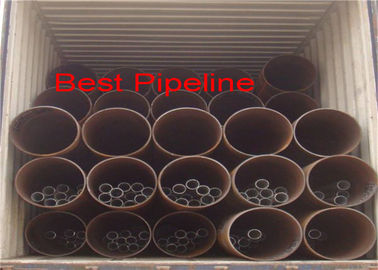

| Packaging Details | 1) In bundle with strip; 2) First packing by plastic bag then strip; Details packing please see the picture in the detial description. |
| Delivery Time | Shipped in 25 days after payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000 Ton/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | API Spec 5L:2004 | Grade | X52 NACE MR0175 |
|---|---|---|---|
| Technique | SAW/UOE | Finish | Bared |
| Keyword | Welded Steel Pipe/ Tubes | Inspection | With Hydraulic Testing |
| High Light | black steel pipe,spiral welded steel pipe |
||
Product Description
LSAW Steel Pipe Character Summary:
Longitudinally Submerged Arc Welding (LSAW / SAWL) Pipe: the pipe is produced by double-side submerged arc welding and expanded diameter. During the production used pre-welding and then precision welding process, it is stable welding process and high quality weld.
Through the mechanical expansion for the whole pipe, the stress of internal pipe is small and evenly distributed, can effectively prevent the stress corrosion cracking, it is high accuracy dimension and easy to be welded and constructed on-site.
| Product Name | LSAW Steel Pipe |
| Usage | Used for low pressure liquid delivery, such as water, gas, and oil. |
| Process |
LSAW - UO(UOE),RB(RBE),JCO(JCOE) DSAW -Double Submerged arc welded |
| Standard | API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711 |
| Certificate | API 5L PSL1 / PSL2 |
| Out Diameter | 355.6mm– 1828.8mm |
| Wall Thickness | 8 -50mm |
| Length | up to 12m |
| Steel Grade | |
| API 5L PSL1 / PSL2 | GR B, X42, X46, X52, X56, X60, X65, X70, X80 |
| ASTM A53 | GR A, GR B, GR C |
| EN | S275, S275JR, S355JRH, S355J2H |
| GB | Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555 |
| Surface | Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement |
| Test | Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test. |
Production Size
| Outside Diameter | 18 | 20 | 22 | 24 | 26 | 28 | ... | 44 | 46 | 48 | 52 | 56 | inch | |
| Wall Thickness | 457.2 | 508 | 558.80 | 609.6 | 660.4 | 711.2 | ... | 1117.6 | 1168.4 | 1219.2 | 1320.8 | 1422.4 | mm | |
| 0.375 | 9.53 | 105.21 | 117.15 | 129.08 | 141.02 | 152.96 | 164.90 | ... | 260.41 | 272.35 | 284.28 | 308.16 | 332.04 | API 5L Gr.B-X120 |
| 0.406 | 10.31 | 113.62 | 126.53 | 139.45 | 152.37 | 165.28 | 178.20 | ... | 281.52 | 294.44 | 307.35 | 333.19 | 359.02 | |
| 0.438 | 11.13 | 122.43 | 136.37 | 150.32 | 164.26 | 178.20 | 192.15 | ... | 303.69 | 317.63 | 331.57 | 359.46 | 387.35 | |
| 0.500 | 12.70 | 139.21 | 155.12 | 171.03 | 186.94 | 202.85 | 218.76 | ... | 346.03 | 361.94 | 377.85 | 409.67 | 441.49 | |
| 0.562 | 14.27 | 155.87 | 173.74 | 191.62 | 209.50 | 227.37 | 245.25 | ... | 388.26 | 406.14 | 424.01 | 459.77 | 495.52 | |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | |
| 1.875 | 47.63 | ... | 1216.09 | 1273.74 | 1331.39 | 1446.69 | 1561.99 | |||||||
| 2.000 | 50.80 | ... | 1256.74 | 1316.41 | 1376.07 | 1495.41 | 1614.74 | |||||||
| 2.125 | 53.98 | ... | 1336.41 | 1400.05 | 1463.69 | 1590.96 | 1718.24 | |||||||
| 2.362 | 60.00 | ... | 1415.83 | 1483.46 | 1551.08 | 1686.32 | 1821.57 | |||||||
| inch | mm | ... | 1564.82 | 1639.99 | 1715.15 | 1865.48 | 2015.81 | |||||||

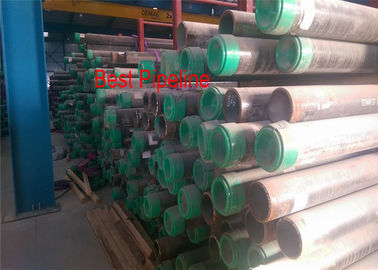

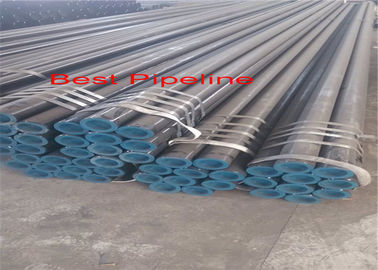

LSAW Steel Pipe Pictures
