API 5CT Standard Copper Coated Seamless Casing Pipe for Deep Drilling Applications
Basic Properties
Place of Origin:
China
Brand Name:
Best
Certification:
API
Model Number:
114.3 - 508 mm
Trading Properties
Minimum Order Quantity:
1 Tons
Price:
600 usd/ton
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,
Supply Ability:
100000Ton/Month
Product Summary
KN 45 11081:1997 seamless casing pipes for deep drilling. Available in API J55, K55, L80 grades, copper coated surface. Compliant with API 5CT, ISO 9001:2008. Custom sizes, lengths, and PSL levels available.
Product Details
Highlight:
steel casing pipe
,seamless casing pipe
Standard:
KN 45 11081:1997
Grade:
API J55, API K55, API L80,
Out Diameter:
API J55, API K55, API L80,
Application:
Seamless For Deep Drilling
Surface:
Copper Coated
Special Pipe:
API Pipes
Product Description
KN 45 11081 Drill Pipe Casing Cold Rolled Steel Sheet Seamless For Deep Drilling
Product Overview
Product Name: KN 45 11081:1997 Casing Pipes and tubes type III – seamless for deep drilling – Technical delivery conditions
We supply API 5CT standard casing pipe with assured quality and competitive pricing. Our strong relationships with domestic certified mills ensure all API series steel grades and connections are available at PSL 1, PSL 2, and PSL 3 levels as per your requirements.
Product Specifications
- Item: API 5CT Oil Casing Pipe
- Thickness: 4.24mm and more
- Outside Diameter: 60.32-339.72mm
- Length: R1(4.88-7.62M) R2(7.62-10.36M) R3(10.36-14.63M)
- Payment Terms: T/T, West Union, Escrow, L/C at sight
- Tolerance: Complies with standard or requirements
- Grade: API J55, K55, N80, L80, P110 (J55-P110 range)
- Standards: GB, ASTM, DIN, JIS, EN
- Surface Treatment: After Hot/Cold Rolled
- Packing: Standard exporting packing or as required
- Certificate: API 5CT (certificate No 5CT 0735) ISO 9001:2008
Casing Specifications
| Type | Label 1 (in) | Outside Diameter (mm) | Wall Thickness (mm) | Grade | Type of Thread | Length |
|---|---|---|---|---|---|---|
| Casing | 4-1/2 | 114.30 | 5.21-8.56 | H40-P110 | STC LC BC | 4.88-13.5m |
| 5 | 127.00 | 5.59-12.70 | H40-P110 | |||
| 5-1/2 | 139.70 | 6.20-22.22 | H40-P110 | |||
| 6-5/8 | 168.28 | 7.32-12.06 | H40-P110 | |||
| 7 | 177.80 | 5.87-22.22 | H40-P110 |
Oil Pipe Specifications
| Type | Label 1 (in) | Outside Diameter (mm) | Wall Thickness (mm) | Grade | Type of Thread | Length |
|---|---|---|---|---|---|---|
| Oil Pipe | 2-3/8 | 60.32 | 4.24-8.53 | H40-P110 | NU EU | 6.1-12.8m |
| 2-7/8 | 73.02 | 5.51-11.18 | H40-P110 | |||
| 3-1/2 | 88.90 | 5.49-13.46 | H40-P110 | |||
| 4 | 101.60 | 5.74-15.49 | H40-P110 | |||
| 4-1/2 | 114.30 | 6.88-16.00 | H40-P110 |
Material Grade Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Hardness |
|---|---|---|---|
| J55 | 379-522 | >517 | |
| K55 | 379-552 | >655 | |
| N80 | 552-758 | >689 | |
| L80-1 | 552-655 | >689 | 23-241 |
| C90 | 621-724 | >689 | 25.4-255 |
| C95 | 655-758 | >724 | |
| T95 | 655-758 | >724 | 25.4-255 |
| P110 | 758-965 | >862 |

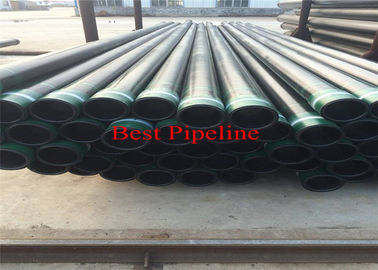

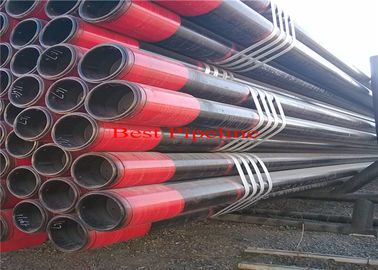

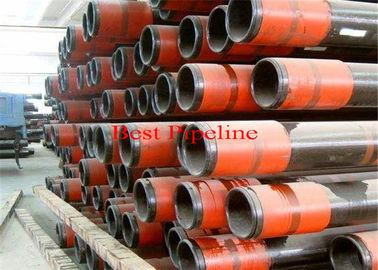

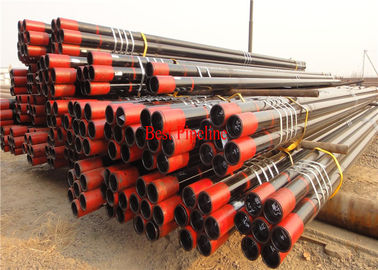

Product Image
