WB36 Black Painting Alloy Steel Seamless Pipes , Hot Rolled Square Tube
Place of Origin | China/Japan |
---|---|
Brand Name | BEST |
Certification | API, CE, PED, ISO |
Model Number | 1/2''-48'' |
Minimum Order Quantity | Negotiation |
Price | Negotiation |
Packaging Details | Pipes May be furnished bard or coated and with capped ends |
Delivery Time | 5-8 working days |
Payment Terms | L/C /TT |
Supply Ability | 10000ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCoated | Black Painting , Caps | Standard | API / GB / DIN/ ASTM /EN/NFA/BS/UNI/ISO/GOST/JIS /GB5310 |
---|---|---|---|
Certificate | EN10204 -3.1 /3.2 | Specific Qualification | TUV:AD WO-TRD100 / PED97/23/EC /IBR |
Identification And Marking | All Products Are Identified In Accordance With The Material Specification And/ Or In Accordance With P O Requirements (to Be Agreed). | OD Tolerance | ±1% Or ±0.5mm , Whichever Is The Greater |
High Light | alloy steel pipe,seamless alloy steel tube |
Name : WB36 (T36/P36, 15NiCuMoNb5-6-4) HOT ROLLED TUBES FOR HIGH TEMPERATURE AND PRESSURE APPLICATIONS
Definition :
WB36 is a bainitic Ni-Cu-Mo steel micro-alloyed with niobium. It is also known as 15NiCuMoNb5-6-4 according to EN 10216-2 and VdTÜV377/2, T36 according to ASTM A 213 and P36 according to ASTM A 335.
Application:
This grade is mainly used in high-pressure, medium-temperature feedwater lines (close to 400 °C).
Challenges :
WB36 exhibits excellent high-strength properties up to 450 °C. The reduced weight of the feedwater piping components compared with conventional carbon steel allows improved resistance to thermal fatigue and very good heat transfer.
Key advantages of Best Pipeline include:
- Production and delivery of our own steel products, especially boiler pipes made of X10CrMoVNb9-1 and X10CrWMoVNb9-2 grades as well as other materials designed for high-temperature service
- Design of the boiler parts, pipeline elements, Y-fittings and T-fittings
- Prefabrication and assembly of boiler and industrial piping
- Services:
- technical consultations on preparing delivery, production and assembly contracts/agreements in order to provide a constant control/inspection over fulfilling the requirements listed in the “Delivery Technical Conditions” and “Construction and Commissioning Requirements”.
- inspection and control over technological processes as per contracts/agreements in order to assure their realisation within the agreed time, cost reduction and quality of the final product
- examination and testing followed by the final acceptance performed by the Notified Bodies. Additional creep tests of materials designed for the high-temperature service
- free of charge preliminary examinations of pipelines in service using a portable SFM to determine their life assessment and evaluate the necessity of repairs, modernisation or further investments.
1. steel pipes for pressure equipment. Unalloyed steel pipes with specified room temperature properties – manufactured in accordance with PN-EN 10216-1 standard: |
P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2
|
2. pipes for pressure purposes in elevated temperatures – boiler pipes – manufactured in accordance with PN-EN 10216-2 standard: | P195GH, P235GH, P265GH, 16Mo3, 14MoV6-3, 13CrMo4-5, 10CrMo9-10, X10CrMoVNb9-1, X10CrWMoVNb9-2 |
3. pipes for pressure purposes made of fine-grained steel – manufactured in accordance with PN-EN 10216-3 standard: |
Standard quality: P355N, P460N, P620Q, P690Q;
|
4. pipes for pressure purposes made of alloyed and unalloyed steel for application at low temperatures – manufactured in accordance with PN-EN 10216-4 standard: |
P215NL, P255QL, P265NL, 26CrMo4-2, 11MnNi5-3, 13MnNi6-3, 12Ni14, X12Ni5, X10Ni9 |
5. seamless steel pipes for pressure purposes – pipes made of corrosion-resistant steel – manufactured in accordance with PN-EN 10216-5 standard: |
X2CrNi18-9, X2CrNi19-11, X5CrNi18-10, X6CrNiTi18-10, X6CrNiNb18-10, X2CrNiMo17-12-2, X5CrNiMo17-12-2, X1CrNiMoN25-22-2, X6CrNiMoTi17-12-2, X2CrNiMo18-14-3, X1NiCrMoCu25-20-5, X2CrNiMoN22-5-3, X15CrNiSi25-20
|
6. steel pipes for transportation of combustible fluids – pipes of requirement class A – manufactured in accordance with PN-EN 10208-1 standard: |
L210GA, L235GA, L245GA, L290GA, L360GA
|
7. steel pipes for transportation of combustible fluids – pipes of requirement class B – manufactured in accordance with PN-EN 10208-2 standard: |
L210GA, L235GA, L245GA, L290GA, L360GA
|

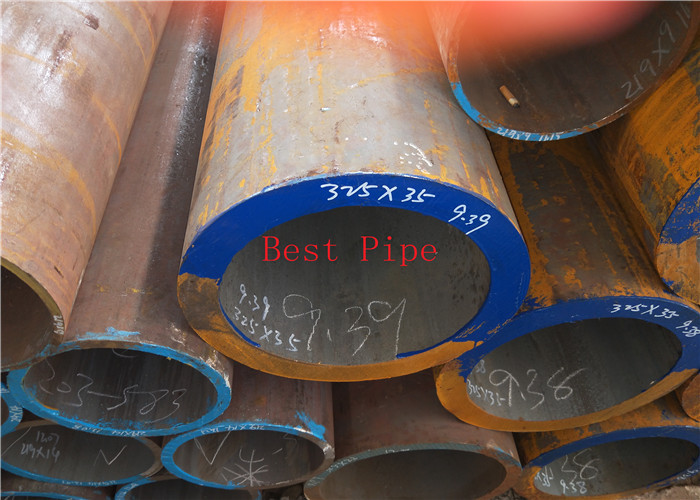

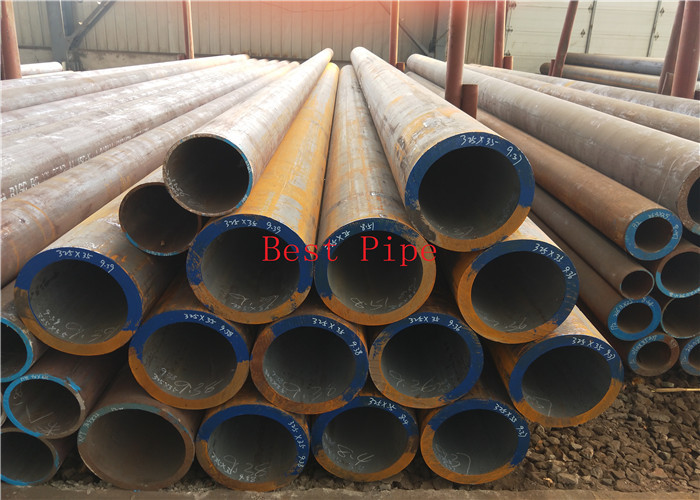

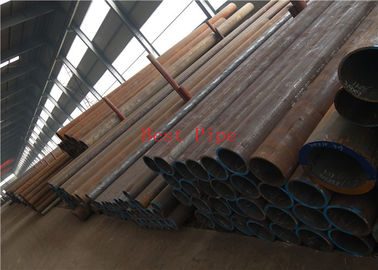

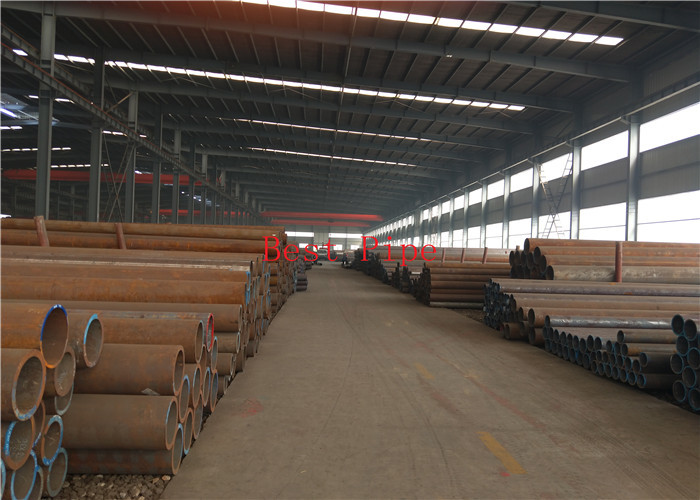

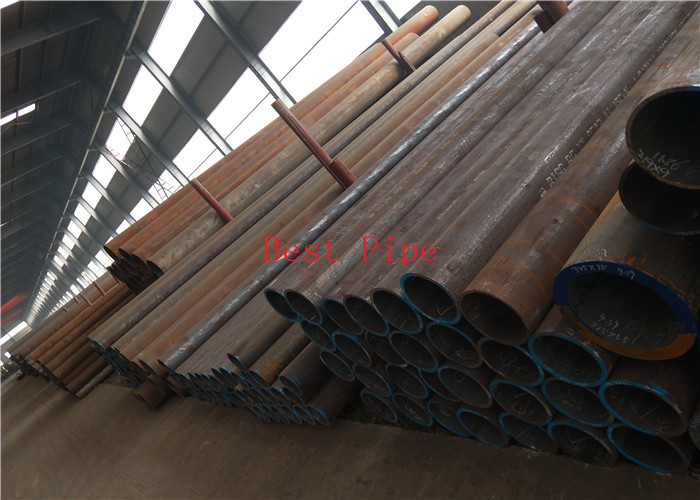

Product Show :
