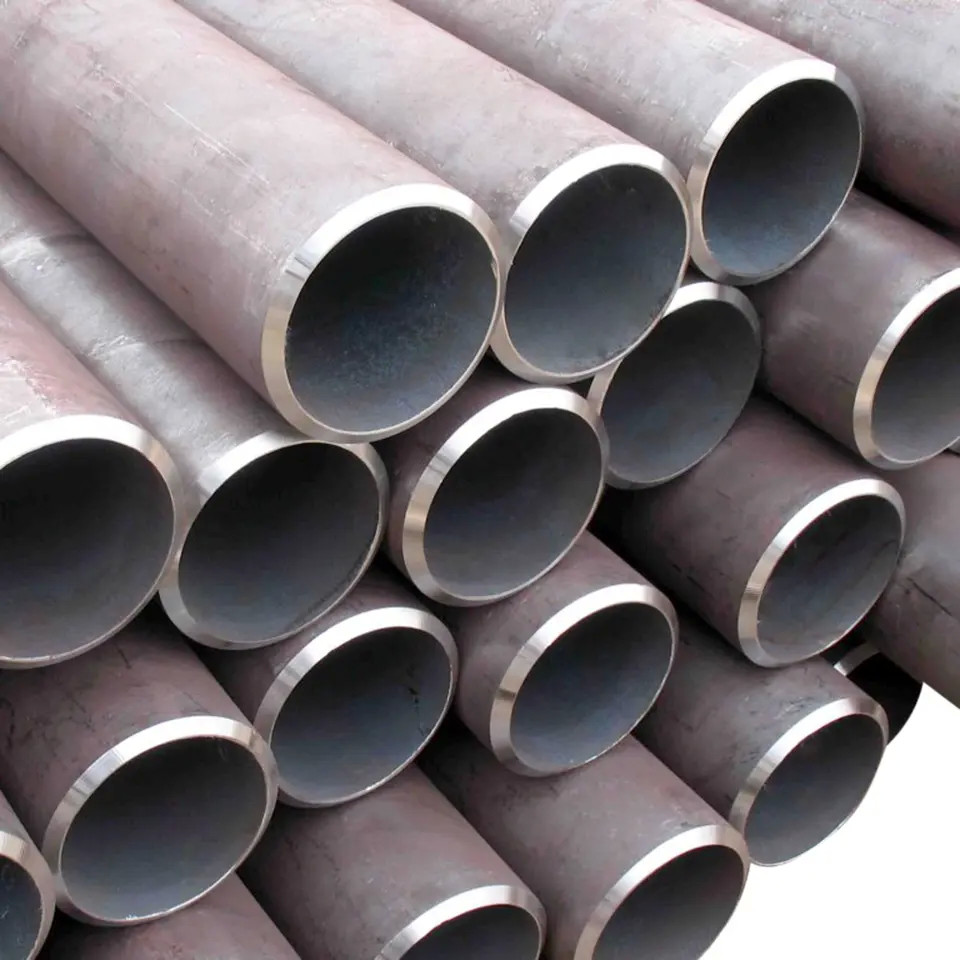

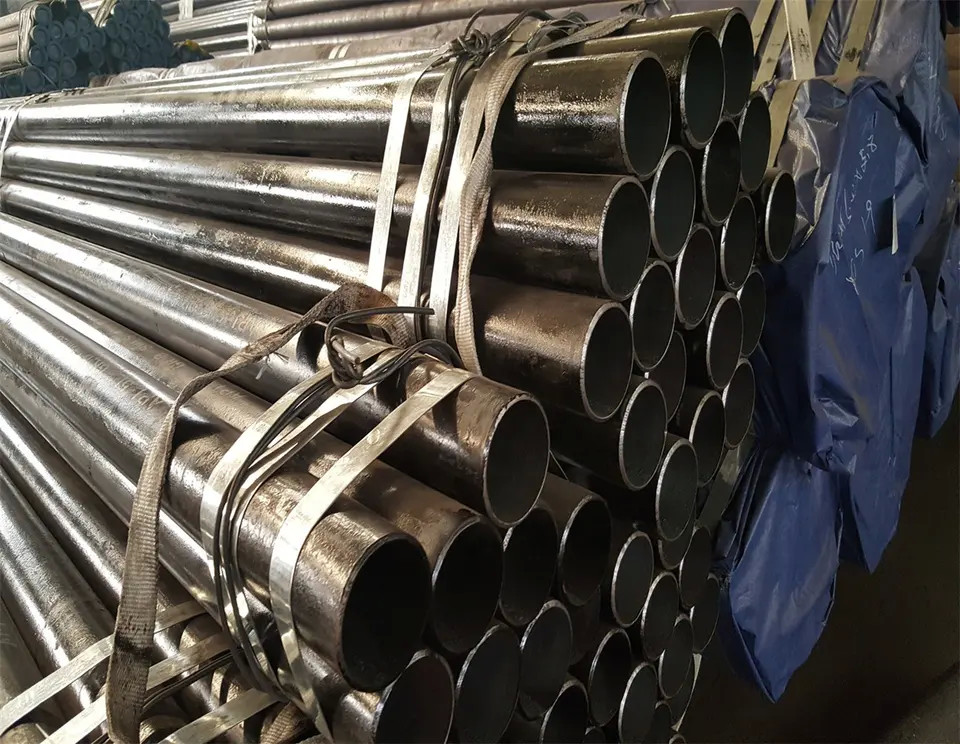

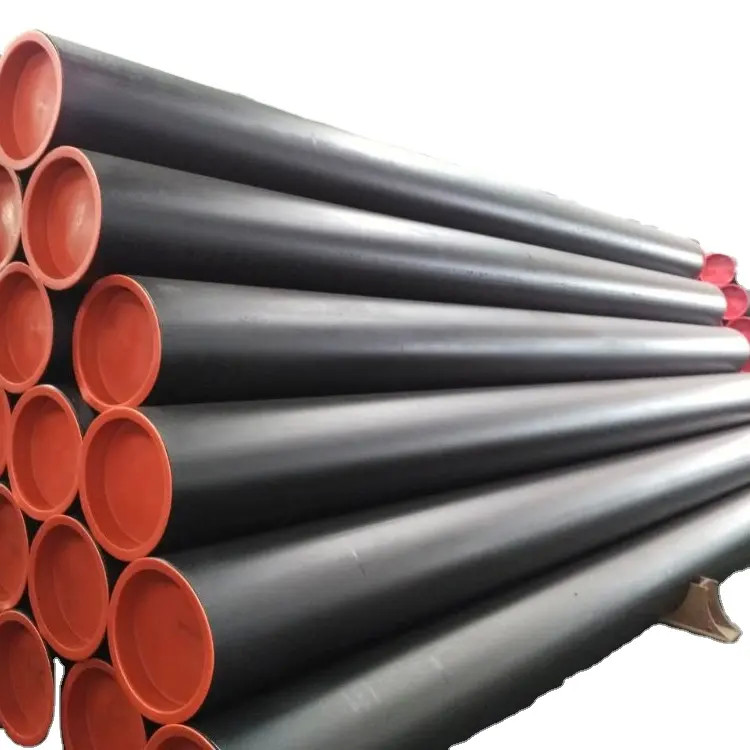

EN 10216-2 Steel Seamless Pipes 1.0348 P195GH Seamless Steel Pipes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | P195GH | Steel Number | 1.0348 |
|---|---|---|---|
| Type | Seamless Steel Pipe | Standard | En10216-2 |
| High Light | EN 10216-2 Steel Seamless Pipes,P195GH Seamless Steel Pipes,1.0348 Seamless Steel Pipes |
||
Product Description
Steel Grade: P195GH Steel Number: 1.0348
| Chemical composition (cast analysis)a, in % by mass | ||||||||||||||||||||||||
|
Quality guarantee
(1)Chemical analysis
(2)Tensile test(Tensile test at room temperature, Tensile test at elevated temperature)
(3)Flattening test
(4)Ring tensile test
(5)Drift expanding test
(6)Ring expanding test
(7)Impact test
(8)Leak tightness test(Hydrostatic test, Electromagnetic test)
(9)Dimensional inspection
(10) Visual examination
(11) Non-destructive testing
| Grade : | P195GH | ||
| Number: | 1.0348 | ||
| Classification: | Non-alloy quality steel | ||
| Standard: |
|
| C | Si | Mn | Ni | P | S | Cr | Mo | V | Nb | Ti | Al | Cu | - |
| max 0.13 | max 0.35 | max 0.7 | max 0.3 | max 0.025 | max 0.01 | max 0.3 | max 0.08 | max 0.02 | max 0.01 | max 0.04 | max 0.02 | max 0.3 | Cr+Cu+Mo+Ni < 0.7 |
Mechanical properties of steel P195GH (1.0348)
| Rm - Tensile strength (MPa) | 320-440 |
| Rp0.2 0.2% proof strength (MPa) | 195 |
| KV - Impact energy (J) longitud., | 0° 40 |
-10° 28 |
| KV - Impact energy (J) transverse, | 0° 27 |
| A - Min. elongation at fracture (%) longitud., | 27 |
| A - Min. elongation at fracture (%) transverse, | 25 |
