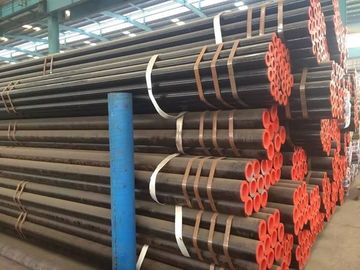

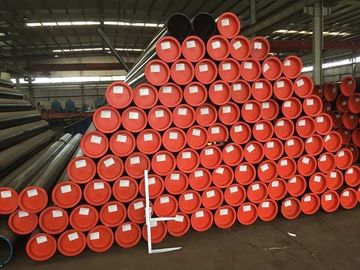

High Precision Boiler Steel Pipe EN 10025-2 2004 Hot Rolled API CE TUV ISO Approval
| Place of Origin | China |
|---|---|
| Brand Name | Global |
| Certification | API/CE/TUV/ISO |
| Model Number | 4inch Sch40 |
| Minimum Order Quantity | 1 tons |
| Packaging Details | Standard exported package |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface Treatment | Anti-corrosion Coating | Length | Random Length Or Fixed Length |
|---|---|---|---|
| Surface | Customers't Requirement | Usage | Boiler Pipe,Structure Pipe |
| Product Name | High Precision Seamless Steel Pipe | Type | Seamless Round Steel Pipe |
| High Light | stainless steel tubing,seamless stainless steel tubing |
||
Product Description
jindal steel pipe with Steel EN 10025-2: 2004 Hot rolled products of structural steels.
| Grade : | S185 | |
| Number: | 1.0035 | |
| Classification: | Non-alloy quality structural steel | |
| Standard: |
|
jindal steel pipe with Steel EN 10025-2: 2004 Hot rolled products of structural steels.
| - |
| Chemical composition is not specified |
Mechanical properties of steel S185 (1.0035)
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) flat and long products | 310-540 | 290-510 | 280-500 | 270-490 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 |
| ReH - Minimum yield strength (MPa) flat and long products | 185 | 175 | 175 | 175 | 175 | 165 | 155 |
| Nominal thickness (mm): | to 1 | 1 - 1.5 | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) parallel, | 10 | 11 | 12 | 13 | 14 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 | 150 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 18 | 17 | 16 | 15 | 15 |
Equivalent grades of steel S185 (1.0035)
| EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
European old EN |
Italy UNI |
Belgium NBN |
Spain UNE |
China GB |
Sweden SS |
Czechia CSN |
Finland SFS |
Austria ONORM |
Russia GOST |
Inter ISO |
Portugal NP |
|||||||||||||||||||||||||
| S185 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
