A519-4140 Material Alloy Steel Seamless Pipes Quenched Tempered Conditions

China A519-4140 Material Alloy Steel Seamless Pipes Quenched Tempered Conditions supplier
A519-4140 Material Alloy Steel Seamless Pipes Quenched Tempered Conditions supplier A519-4140 Material Alloy Steel Seamless Pipes Quenched Tempered Conditions supplier A519-4140 Material Alloy Steel Seamless Pipes Quenched Tempered Conditions supplier A519-4140 Material Alloy Steel Seamless Pipes Quenched Tempered Conditions supplier A519-4140 Material Alloy Steel Seamless Pipes Quenched Tempered Conditions supplier

Large Image :  A519-4140 Material Alloy Steel Seamless Pipes Quenched Tempered Conditions

Product Details:

Place of Origin: China/Japan
Brand Name: BEST
Certification: API, CE, PED, ISO
Model Number: 1/2''-48''

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation

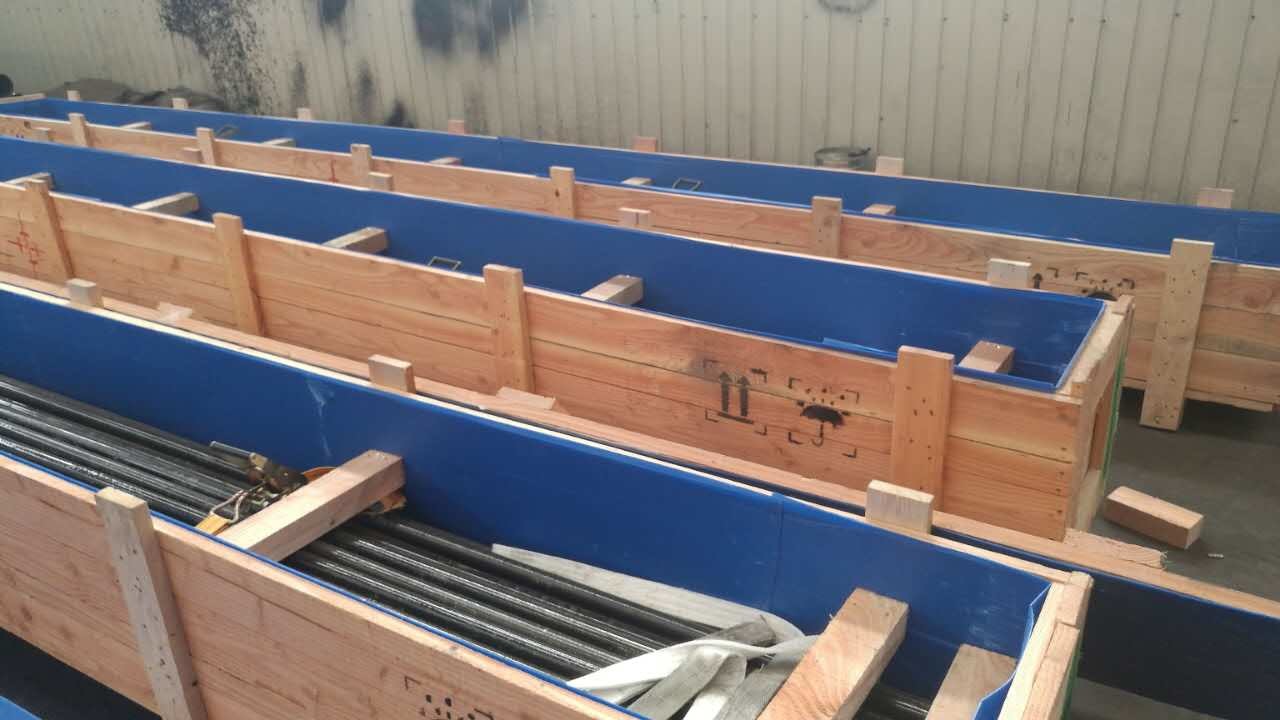

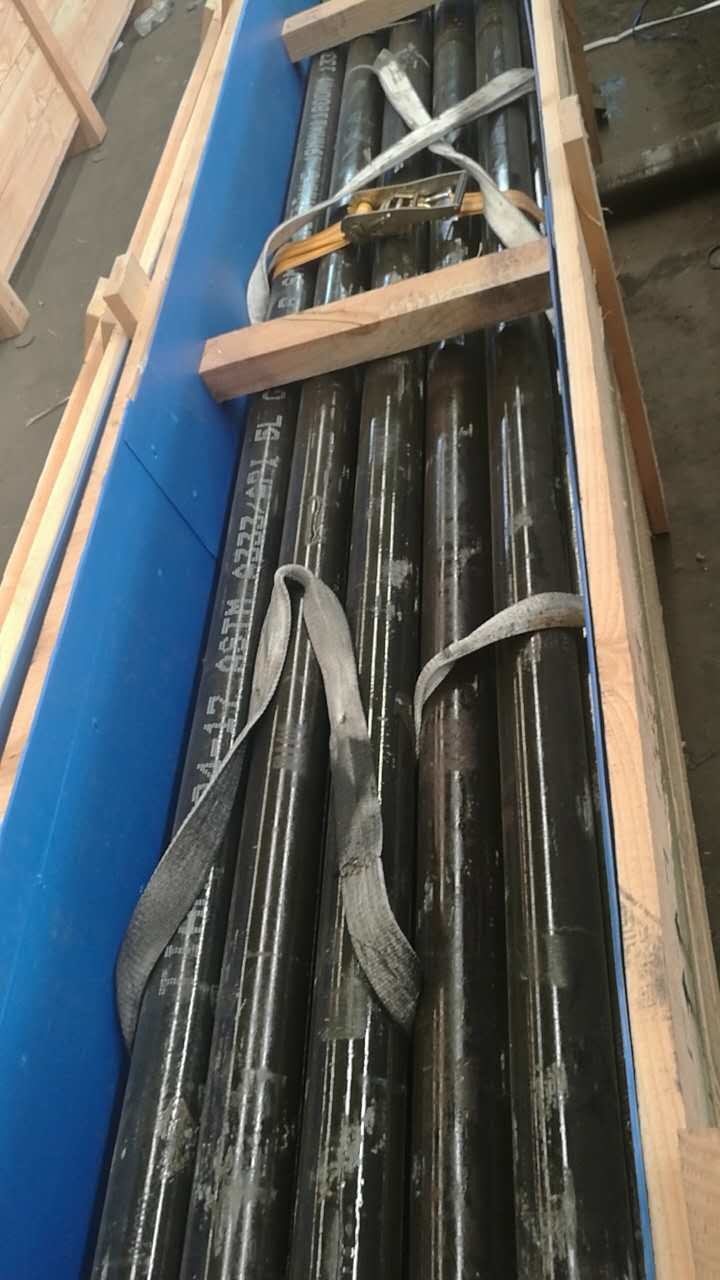

Packaging Details: Pipes May be furnished bard or coated and with capped ends
Delivery Time: 5-8 working days
Payment Terms: L/C /TT
Supply Ability: 10000ton/Month
Contact Now
Detailed Product Description
Coated: Black Painting , Caps Standard: API / GB / DIN/ ASTM /EN/NFA/BS/UNI/ISO/GOST/JIS /GB5310
Certificate: EN10204 -3.1 /3.2 Specific Qualification: TUV:AD WO-TRD100 / PED97/23/EC /IBR
Identification And Marking: All Products Are Identified In Accordance With The Material Specification And/ Or In Accordance With P O Requirements (to Be Agreed). OD Tolerance: ±1% Or ±0.5mm , Whichever Is The Greater

SEAMLESS
The complex chemical and physical properties of the various grades of carbon steel pipe
allow for a broad range of service usage. American Piping Products has the right grade,
size and price to meet your requirements including A/SA106 Grade B/C and API 5L X-42
through X-70. A/SA106 Grades B & C are utilized for services ranging from structural
supports to steam drum headers with temperature ranges up to 800°, API 5L X Grades
42 through 70 are utilized for the water and petroleum industry to transport liquids or
as platforms on offshore rigs.
½˝ nominal to 24˝ O.D. seamless pipe
Wall thickness: Schedule 40 up to 4.000˝
STANDARD CARBON STEEL PIPE SPECIFICATIONS & GRADES
A/SA106B/C
A/SA53B
FLANGES & FITTINGS
Carbon steel butt-weld fittings: A/SA234 WPB * WPC
Carbon steel forged fittings: A/SA105
Carbon steel flanges: A/SA105

WELDED
American Piping Products distributes an extensive selection of welded pipe including
Electronic Resistance Welded (ERW), Electronic Fusion Welded (EFW) and Double
Submerged Arc Welded (DSAW) carbon steel pipe along with their respective flanges
and fittings. We also carry A139 – Grade B and A252 Grades 2 & 3 spiral weld pipe
along with A691 chrome-moly pipe.
Carbon (ERW, EFW & DSAW) Pipe
¾˝ nominal to 60˝ O.D.
Wall thickness: Up to 1.500˝

4130 PIPE
Seamless pipe is tubing made to the pipe schedule. Alloy pipe in the power industry
generally refers to A335 material, but in the oil and gas market 4130 pipe is used.
This product is made to the pipe schedule but uses A519-4130 as the controlling
seamless specification. The material is then heat-treated to L80, P110 or the
customer’s specified properties. This material is easily welded and is generally used
for above-ground applications and utilizes the fittings, flanges and other piping
components with the same 4130 chemistry. This product is a good alternative
to replace X65 through X80 piping items where the usage or repair is too small for
mill production.
A519 – 4130
L80 and P110 heat-treated mechanicals
NPS 2˝ to 12˝
Schedules 120 through XXH
Non-scheduled walls through 1½˝

HIGH-SPEED STEEL

It is used for making tools, from which performance is required in addition to the high ductility (twist drills, threading tools, segments for circular saw blades, broaches), as well as some tools to work in the cold (punches to punch), also working tools roughing and finishing of high strength steels at high cutting speeds for machining stainless steels and stainless steels, to work on the machine, peelers (high-end mills, lathe and planer knives, drill bits, threading tools, segments and saw blades, milling cutters worm).

Technical specifications:

PN EN Werkstoff nr AISI
SW7M HS6-5-2C 1.3343 M2
SW18 HS18-0-1 1.3355 T1
SK5M HS6-5-2-5 1.3243
SK10V HS10-4-3-10

1.3207



It is used for the production of simple hand tools such as axes, hatchets, hammers and ordinary blacksmith, anvil, blacksmith tools support, files, knives, dies, markers, engraving tool, drag rings, punches punching knives, leather and paper.

Technical specifications:

PN EN Werkstoff nr AISI
N8E C80U 1.1525 W1 - C=0,8%
N9E     W1 - C=0,9%
N10E C105U 1.1545 W1 - C=1,0%
N12E C125U 1.1563 W1 - C=1,2%



HOT-WORK TOOL STEEL

Used to catalog the elements of molds for pressure die casting, extrusion tools for low-melting alloys, die inserts, dies, stamps, punches, dies, working under heavy load, dies hammer of medium size and deep grooves, loaded with inserts die, extrusion tools, shoes thread rolling, drawing dies, dies for iron alloys, etc.

Technical specifications:

PN EN Werkstoff nr AISI
WCL X37CrMoV5-1 1.2343 H11
WCLV X40CrMoV5-1 1.2344 H13
WNL 55NiCrMoV7 1.2714 L6
WLV 32CrMoV12-28 1.2365 H10
WWS1 X30WCrV5-3 1.2567
WWV X30WCrV9-3 1.2581 H21

COLD-WORK TOOL STEEL



Used in the production of tool kits for punching and cutting tools for sheet metal, thread rolling jaws of cold, dies and punches to the extrusion blade for cutting wood and metal, pneumatic chisels, punches, cutters, dies for cold, form into bending, straightening rolls, etc.

Technical specifications:

PN EN Werkstoff nr AISI
NC6
NC10
NC11 X210Cr12 1.2080 D3
NC11LV X153CrMoV12 1.2379 D2
NMV 90MnCrV8 1.2842 O2
NZ3 60WCrV8 1.2550 S1



Carbon steel is used in the production of medium-bearing, such as axles, crankshafts, eccentric, and toothed, spindles, rollers, pump rotors, pistons, levers, wedges, rods, screws, rings, etc.

Non-alloy steel arise from the construction, welded, riveted and joined with screws operating at ambient temperature.

Cutting steel is used for machining on automatic and high-speed machine tools for threading.

Technical specifications:

PN EN Werkstoff nr AISI
20 C22 1.1151 1020
45 C45 1.1191 1042
55 C55 1.1203 1055
St5 S275J2 1.0145
R35 E235N 1.0308 1010
P355 P355GH 1.0473
ST3S S235JR 1.0038
18G2A S355J2G3 1.0045
A1OX 11SMn30/9SMn28 1.0715
  11SMnPb28 1.0718





Appropriate for the production of heavily loaded, exposed to shocks, torsion or vibration, such as shafts, crankshafts, rotors, blades of steam turbines, spindles, levers, axles of vehicles, connecting rods, shafts, pumps and presses, parts control, rings.

Technical specifications:


PN EN Werkstoff nr AISI
36HNM 36CrNiMo4 1.6511 4340
34HNM 34CrNiMo6 1.6582 4337
40H 41Cr4 1.7035 5140
25HM 25CrMo4 1.7218 4130
35HGS
40HM 42CrMo4 1.7225 4140



Suitable for machine parts with high strength core with very high surface hardness.

Technical specifications:


PN EN Werkstoff nr AISI
40HMF 40CrMoV4-6 1.7711
38HMJ 41CrAlMo7-10 1.8509 D6


Practical for the production of machine parts with required surface layer with high hardness and ductile core, such as gears, screws, shafts, sleeves, large size – parts to be very high pressures and loads.

Technical specifications:

PN EN Werkstoff nr AISI
16HG 16MnCr5 1.7131 5115
15HN 17CrNi6-6 1.5918
17HNM 18CrNiMo7-6 1.6587 4820
18GHT
20HG 20MnCr5 1.7147 5120
18H2N2 19CrNi8 1.2722


Name : WB36 (T36/P36, 15NiCuMoNb5-6-4) HOT ROLLED TUBES FOR HIGH TEMPERATURE AND PRESSURE APPLICATIONS​


Definition :

WB36 is a bainitic Ni-Cu-Mo steel micro-alloyed with niobium. It is also known as 15NiCuMoNb5-6-4 according to EN 10216-2 and VdTÜV377/2, T36 according to ASTM A 213 and P36 according to ASTM A 335.

Application:

This grade is mainly used in high-pressure, medium-temperature feedwater lines (close to 400 °C).

Challenges :

WB36 exhibits excellent high-strength properties up to 450 °C. The reduced weight of the feedwater piping components compared with conventional carbon steel allows improved resistance to thermal fatigue and very good heat transfer.

Key advantages of Best Pipeline include:

  • Production and delivery of our own steel products, especially boiler pipes made of X10CrMoVNb9-1 and X10CrWMoVNb9-2 grades as well as other materials designed for high-temperature service
  • Design of the boiler parts, pipeline elements, Y-fittings and T-fittings
  • Prefabrication and assembly of boiler and industrial piping
  • Services:
    • technical consultations on preparing delivery, production and assembly contracts/agreements in order to provide a constant control/inspection over fulfilling the requirements listed in the “Delivery Technical Conditions” and “Construction and Commissioning Requirements”.
    • inspection and control over technological processes as per contracts/agreements in order to assure their realisation within the agreed time, cost reduction and quality of the final product
    • examination and testing followed by the final acceptance performed by the Notified Bodies. Additional creep tests of materials designed for the high-temperature service
    • free of charge preliminary examinations of pipelines in service using a portable SFM to determine their life assessment and evaluate the necessity of repairs, modernisation or further investments.



1. steel pipes for pressure equipment. Unalloyed steel pipes with specified room temperature properties – manufactured in accordance with PN-EN 10216-1 standard:

P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2


2. pipes for pressure purposes in elevated temperatures – boiler pipes – manufactured in accordance with PN-EN 10216-2 standard: P195GH, P235GH, P265GH, 16Mo3, 14MoV6-3, 13CrMo4-5, 10CrMo9-10, X10CrMoVNb9-1, X10CrWMoVNb9-2
3. pipes for pressure purposes made of fine-grained steel – manufactured in accordance with PN-EN 10216-3 standard:

Standard quality: P355N, P460N, P620Q, P690Q;

  • For application at elevated temperatures: P275NH, P355NH, P460HN, P620QH, P690QH;
  • For application at low temperatures: P275NL1, P355NL1, P460NL1, P620QL, P690QL1;
  • For application at special low temperatures: P275NL2, P355NL2, P460NL2, P690QL2
4. pipes for pressure purposes made of alloyed and unalloyed steel for application at low temperatures – manufactured in accordance with PN-EN 10216-4 standard:

P215NL, P255QL, P265NL, 26CrMo4-2, 11MnNi5-3, 13MnNi6-3, 12Ni14, X12Ni5, X10Ni9

5. seamless steel pipes for pressure purposes – pipes made of corrosion-resistant steel – manufactured in accordance with PN-EN 10216-5 standard:

X2CrNi18-9, X2CrNi19-11, X5CrNi18-10, X6CrNiTi18-10, X6CrNiNb18-10, X2CrNiMo17-12-2, X5CrNiMo17-12-2, X1CrNiMoN25-22-2, X6CrNiMoTi17-12-2, X2CrNiMo18-14-3, X1NiCrMoCu25-20-5, X2CrNiMoN22-5-3, X15CrNiSi25-20


6. steel pipes for transportation of combustible fluids – pipes of requirement class A – manufactured in accordance with PN-EN 10208-1 standard:

L210GA, L235GA, L245GA, L290GA, L360GA


7. steel pipes for transportation of combustible fluids – pipes of requirement class B – manufactured in accordance with PN-EN 10208-2 standard:

L210GA, L235GA, L245GA, L290GA, L360GA









 A519-4140 Material Alloy Steel Seamless Pipes Quenched Tempered Conditions
