Product Details:

Place of Origin: China /Japan
Brand Name: Best
Certification: API/CE/ISO /TUV/PED
Model Number: 1/2''-48''

Payment & Shipping Terms:

Minimum Order Quantity: 1Pcs
Price: 500 usd/Ton
Packaging Details: standard export packing or as required
Delivery Time: 5-8 working days
Payment Terms: L/C/ TT
Supply Ability: 1000000 Ton/year
Contact Now
Detailed Product Description
Standard: EN 10217-7 TC1 D3/T3/ ASTM A269 Material :: 1.4404 /316/316L
Size: 10inch Wall Thickness : 1.000 Inch Polish: Satin,Bright Or Mirror
Out Diameters: 6mm~2500mm Application: Seawater Heat Exchanger Tubes And Seawater Desalination Plant Pipes

Product Name :Standard : EN 10217-7 TC1 D3/T3 Welded stainless steel tube Quality : 1.4404 WITH ASTM A269 316(L)





What is 1.4404 ?





1.4404/ 1.4401 (ASTM 316/ 316L – ≈ SS2348)





By using 1.4404 (ASTM 316/ 316L – ≈ SS2348) you get a corrosion resistant austenitic stainless steel with good formability. The steel is modified for machining and has very good corrosion resistance. The steel is often used for details within building and construction, process industry.

The steel grade 1.4404 (also called ASTM 316/ 316L and ≈ SS2348) is a stainless ” acid-proof” steel which is easy to machine. The steel has improved machinability by, MAXIVAL®, and it is suitable for production of corrosion resistant products by machining. 1.4404 has a very good corrosion resistance which make it useful within a wide range of areas. It has an improved resistance to pitting and crevice corrosion in environments containing chlorides, due to the addition of moybdenium. It is non-magnetic but may become slightly magnetic after cold working and welding.





Typical application areas for 1.4404:



  • Construction
  • Building
  • Process Industry
  • Reinforcement



Product data sheet 1.4404

If you need further information about the properties of the steel grade, machining and welding:









Specifications : ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V
Dimensions : ASTM, ASME and API
Size : 1/8″NB TO 30″NB IN
ERW 316L Pipes & Tubes : 1/2″ NB – 24″ NB
EFW 316L Pipes & Tubes : 6″ NB – 100″ NB
316L Pipes & Tubes : 1/2″ NB – 16″ NB
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes
Specialized in : Large Diameter Size
Length : Single Random, Double Random & Cut Length.
Form : Round, Square, Rectangular, Hydraulic Etc
End : Plain End, Beveled End, Treaded





Stainlesss Steel 316L Pipes & Tubes Equivalent Grades







STANDARD WERKSTOFF NR. UNS JIS AFNOR BS GOST EN
SS 316L 1.4404 / 1.4435 S31603 SUS 316L Z3CND17‐11‐02 / Z3CND18‐14‐03 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 X2CrNiMo17-12-2 / X2CrNiMo18-14-3







TP 316L Stainless Steel Pipes & Tubes Chemical Composition :







Grade C Mn Si P S Cr Mo Ni N
316L min. 16.0 2.00 10.0
max. 0.08 2.00 0.75 0.045 0.03 18.0 3.00 14.0 0.10







Physical properties :







Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
316L 8000 193 15.9 16.2 17.5 16.3 21.5 500 740









ASTM A312 / A213 SS TP 316L Pipes & Tubing Mechanical properties:







Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316L 485 170 40% 95 217

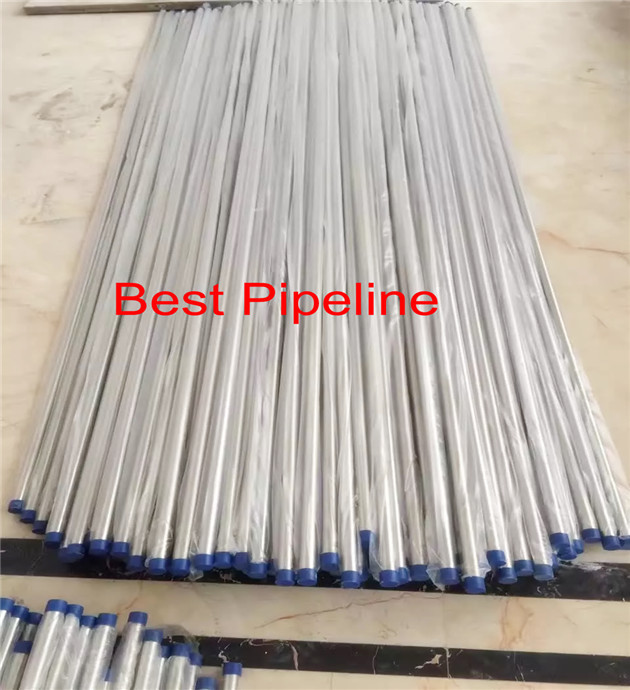

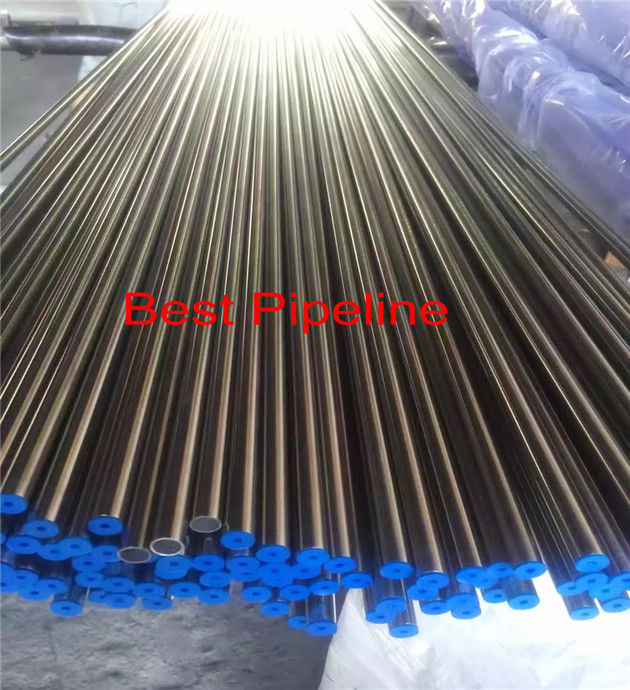

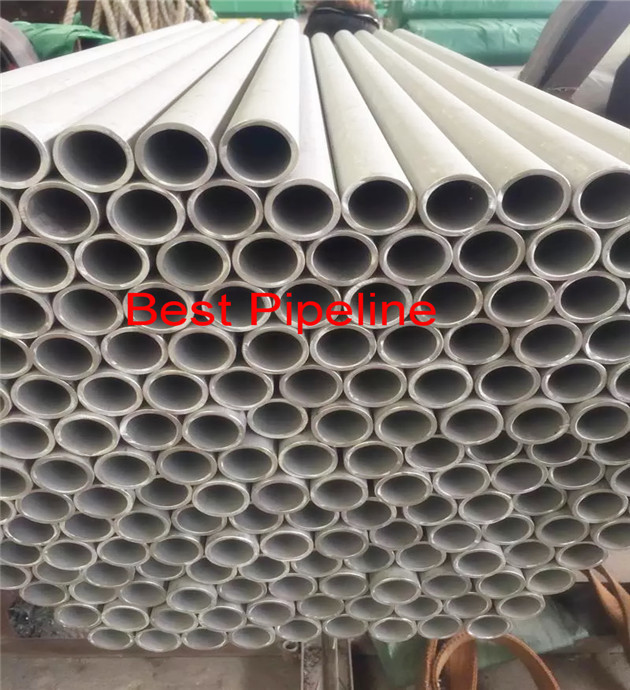

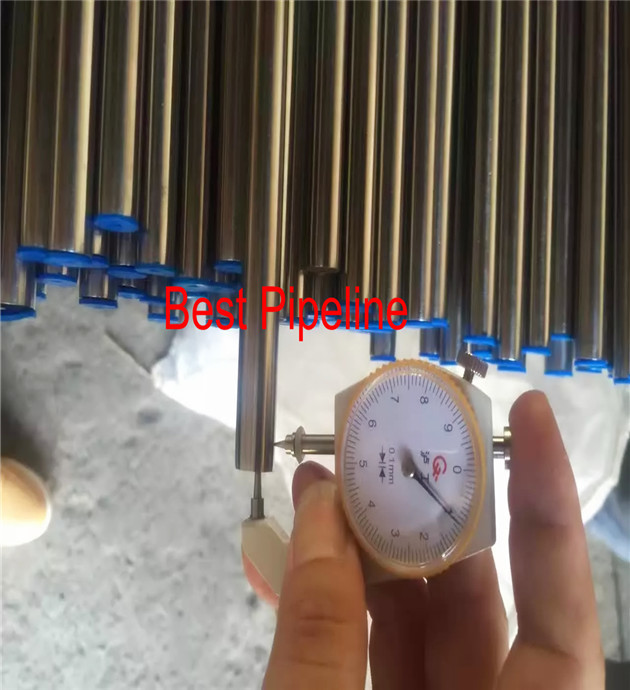

1.4404/ 1.4401 Welded stainless Steel Pipes pictures
