10 Inch Wall Thickness Stainless Steel Welded Tube With 850°C High Temperature
| Place of Origin | China /Japan |
|---|---|
| Brand Name | Best |
| Certification | API/CE/ISO /TUV/PED |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | 1Pcs |
| Price | 500 usd/Ton |
| Packaging Details | standard export packing or as required |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C/ TT |
| Supply Ability | 1000000 Ton/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | EN 10217-7 TC1 D3/T3 | Material | 1.4301/304/304L/316/316L |
|---|---|---|---|
| Size | 10inch Wall Thickness : 1.000 Inch | Polish | Satin,Bright Or Mirror |
| Out Diameters | 6mm~2500mm | Application | Seawater Heat Exchanger Tubes And Seawater Desalination Plant Pipes |
| High Light | stainless steel seamless pipe,seamless stainless steel tubing |
||
Product Description
Product Name : Standard : EN 10217-7 TC1 D3/T3 Welded stainless steel tube Material : 1.4301 /304/316L /304L
What is 1.4301?
| Material No. | 1.4301 |
|---|---|
| EN symbol (short) | X5CrNi18-10 |
| AISI/SAE | 304 |
| UNS | S 30400 |
| AFNOR | Z7CN 18-09 |
| B.S. | 304 S15 – 304 S31 |
| alloy | — |
| Registered work's label | — |
| Standards | EN 10088-3 |
Description
The stainless austenitic chromium-nickel steel 1.4301 shows good corrosion resistance (particularly in natural environmental media and in the absence of considerable chlorine and salt concentrations and sea water) and weldability. Application with acids have to be checked individually. However, after welding 1.4301 is not stable to intergranular corrosion. Good polishing and deep drawing property. It is used in the crude oil industry, chemical industry, petrochemical industry, automobile industry.
Our product range in 1.4301 are tubes and pipes, fittings and flanges, accessories
Chemical composition |
||||||||
| C ≤ % |
Si ≤ % |
Mn ≤ % |
P ≤ % |
S ≤ % |
Cr % |
Mo % |
Ni % |
V % |
| 0,07 | 1,0 | 2,0 | 0,045 | 0,015 | 17,0-19,5 | 8,0-10,5 | ||
| Nb % |
Ti | Al | Co ≤ % |
Cu ≤ % |
N ≤ % |
Fe | Ce % |
Y ≤ % |
| 0,11 | ||||||||
| ¹ in accordance with Key to Steel 2001 | ||||||||
Special characteristics |
||
| Temperature range | Density kg/dm³ | Hardness (HB) |
|---|---|---|
| Due to an inclination to precipitate chromium carbides, application temperatures of 450°C-850°C have to be tested carefully (DIN EN 10088-3) | 7,9 | 160-190 |
Welding filler |
| 1.4316 (308L), 1.4302, 1.4551 |
Main fields of application (depending on the specific conditions of use) |
| crude oil industry, chemical industry, petrochemical industry, construction industry, food industry |
| (all aforementioned specifications serve as a general orientation and have to be reviewed depending on the specific conditions of use) |

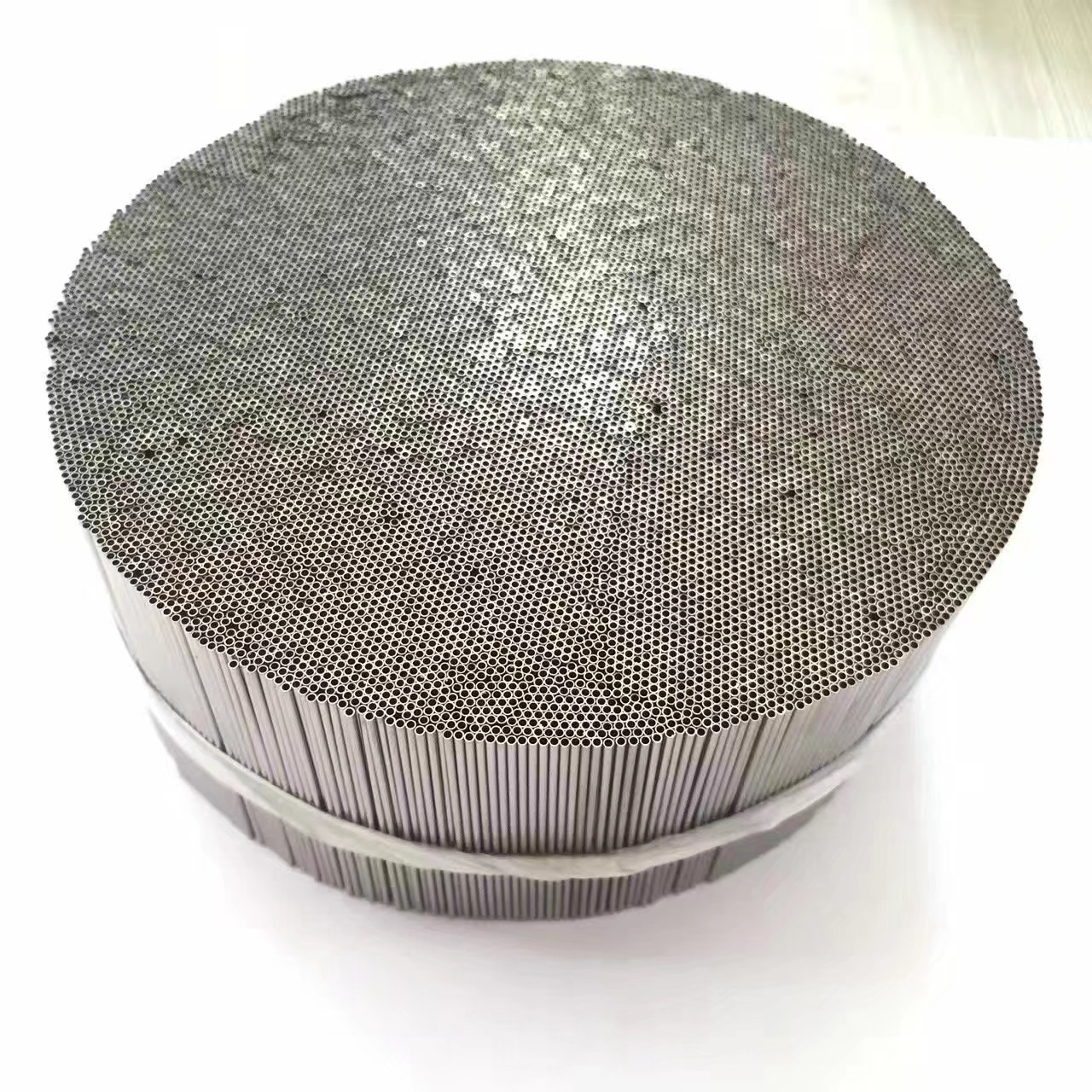

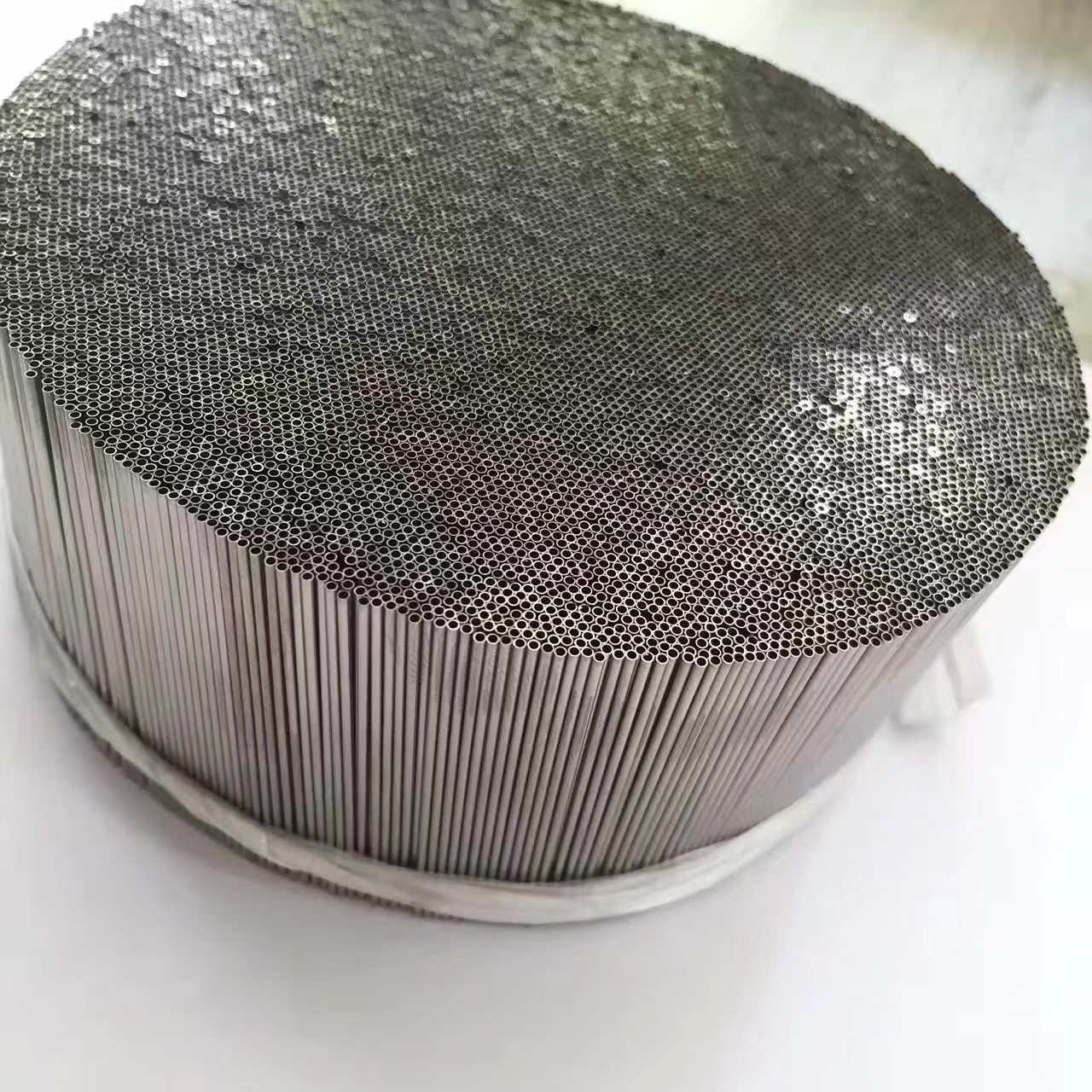

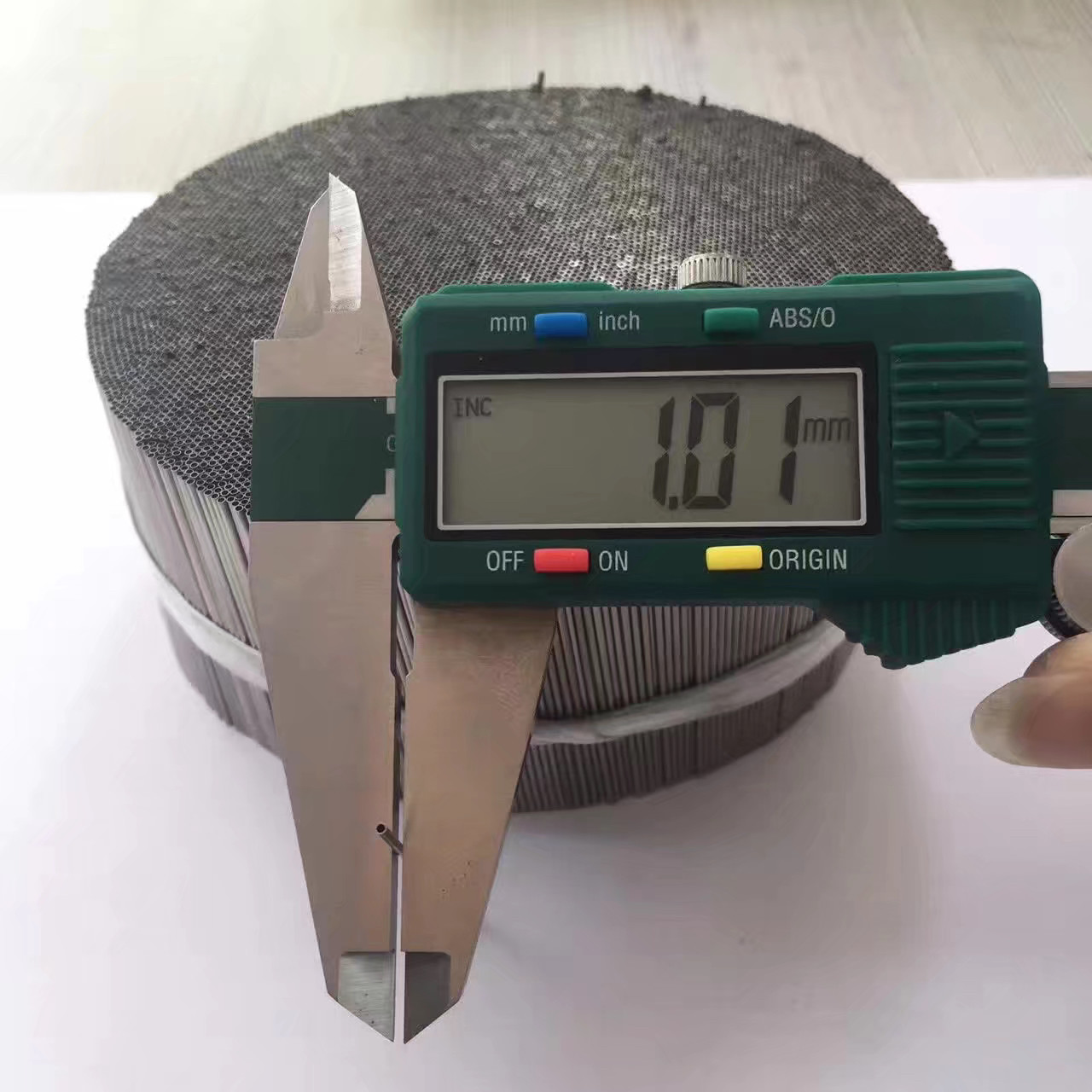

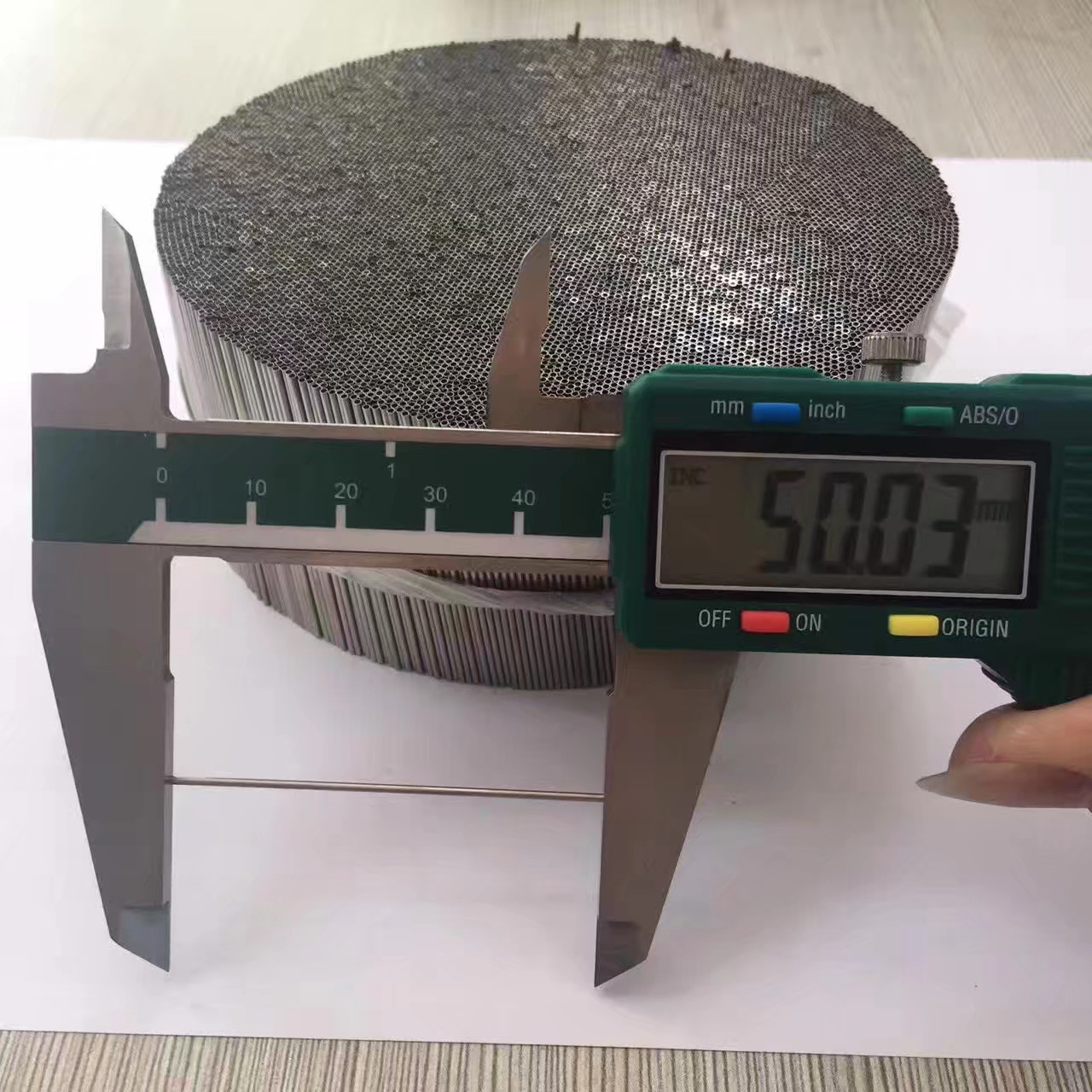

Welded stainless steel tube 304 Pipe pictures :
