A1 2005 Uing-Oing Submerged Arc Welding Pipes 15mm - 1626mm Outer Diameter Non Alloy /Alloy Steel

A1 2005  Uing-Oing Submerged Arc Welding Pipes 15mm - 1626mm Outer Diameter Non Alloy /Alloy Steel
A1 2005  Uing-Oing Submerged Arc Welding Pipes 15mm - 1626mm Outer Diameter Non Alloy /Alloy Steel A1 2005  Uing-Oing Submerged Arc Welding Pipes 15mm - 1626mm Outer Diameter Non Alloy /Alloy Steel A1 2005  Uing-Oing Submerged Arc Welding Pipes 15mm - 1626mm Outer Diameter Non Alloy /Alloy Steel A1 2005  Uing-Oing Submerged Arc Welding Pipes 15mm - 1626mm Outer Diameter Non Alloy /Alloy Steel

Large Image :  A1 2005 Uing-Oing Submerged Arc Welding Pipes 15mm - 1626mm Outer Diameter Non Alloy /Alloy Steel

Product Details:
Place of Origin: China
Brand Name: Best
Certification: API /CE / ISO /TUV
Model Number: 1/2'' -48''
Payment & Shipping Terms:
Minimum Order Quantity: 1 TONS
Price: 450 USD/TON
Packaging Details: 1) In bundle with strip; 2) First packing by plastic bag then strip; Details packing please see the picture in the detial description.
Delivery Time: Shipped in 25 days after payment
Payment Terms: L/C, T/T
Supply Ability: 100000 Ton/Year
Detailed Product Description
Standard: API/ASTM Grade: ASTM A252 Gr1/Gr2/Gr3
Technique: SAW/UOE Finish: Bared
Keyword: Welded Steel Pipe/ Tubes Inspection: With Hydraulic Testing
Surface: Barded /Painting/3PE
High Light:

spiral steel pipe

,

erw carbon steel pipe

1. Product Description



Longitudinal edges of steel plates are first beveled using carbide milling equipment. Beveled plates are then formed into a U shape using a U-press and subsequently into an O shape using an O-press.



The UOE mill features the most advanced technology and process, achieves high production efficiency, stable product quality and is equipped with complete inspection equipments.



UOE mill adopts U & O forming, the formed pipes are welded inside through five internal welding stations with three wires, and welded outside through four external welding stations with three wires.





The LSAW production line has introduced with supreme quality-guarantee technique- JCOE, can produce logitudinal submerged-arc welded steel pipe from out diameter 355.6mm to 1828.8mm(14" - 72"), wall thickness from 8mm to 60mm under various standards like API 5L, API 2B, EN10210, EN10219, EN10208, ASTM A53, ASTM A252, ASTM A500, GB/T9711, GB50205 ETC. The roller welding line can produce straight seam rolled pipe from diameter from 355.6mm to 3800mm, wall thickness from 8mm to 120mm.




STANDARD ASTM, GB, API, JIS, BS, DIN, YB, SNY, etc
MATERIAL

10#,20#,45#,A53A,A53B,A106Gr.A,A106Gr.B,A106A,A106B,ST52,ST358,16Mn,

Q235, Q195, Q345, Q215, API 5L Gr.B,Gr.65,Gr.60,Gr.70,

X42,X52,X60,X65,X70,X80,etc

SPECIFICATION

Outer diameter: 15mm-1626mm

Wall thickness: 2mm-30mm

Length: 6m-12m or as requested

SEAM

SAW(Spiral welded),SSAW(Spiral submerged-arc welded),HSAW,(Helical Submerged Arc

Welded), ERW,

SURFACE

Black painted, PE/PVC/PP coated, Galvanized, color coated, anti rust varnished,

anti rust oiled, checkered, epoxy coating, etc.

END plain end, spigot & socket joint, beveled, cut square, flanged, piling shoes
END PROTECTOR

1) Plastic pipe cap

2) Iron protector

PACKAGE Standard export package, suit for all kinds of transport or as required.
PRICE TERM EXW, FOB, CFR, CIF, etc.
PAYMENT TERM T/T, L/C at sight, etc.
APPLICATION

1) General service for industries ( petroleum, chemical, aviation, etc.)

2) Fluid, gas and oil transport,

3) Press and heat transmission,

4) City construction, etc.

CONTACT Please inform us if any item is interesting to you.

Product Name UOE Steel Pipes
Usage Used for low pressure liquid delivery, such as water, gas, and oil.
Process

LSAW - UO(UOE),RB(RBE),JCO(JCOE)

DSAW -Double Submerged arc welded

Standard API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711
Certificate API 5L PSL1 / PSL2, API 5CT
Out Diameter 355.6mm– 1828.8mm
Wall Thickness 8 -50mm
Length up to 12m
Steel Grade

ASTM A53 GR A, GR B, GR C
EN S275, S275JR, S355JRH, S355J2H
GB Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
Surface Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
Test Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

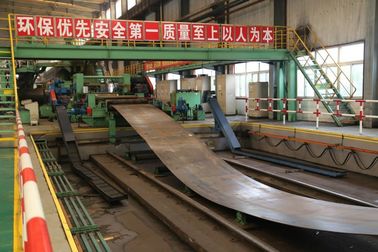

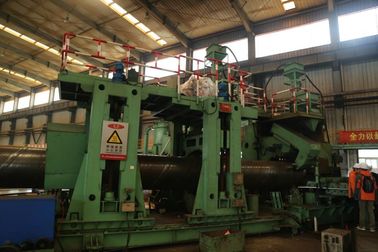

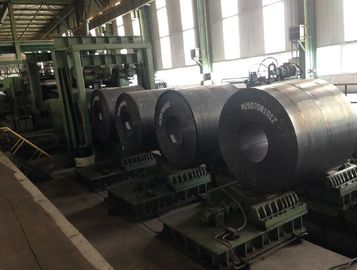

Steel Pipe Pictures

 A1 2005  Uing-Oing Submerged Arc Welding Pipes 15mm - 1626mm Outer Diameter Non Alloy /Alloy Steel 0
