DIN 17175 Seamless Alloy Steel Pipe Wall Thickness Tolerance And Mechanical Properties
| Place of Origin | China/Japan |
|---|---|
| Brand Name | BEST |
| Certification | API, CE, PED, ISO |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Pipes May be furnished bard or coated and with capped ends |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C /TT |
| Supply Ability | 10000ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 13CrMo44, 1.7335 | Thickness | 1.8mm~22mm |
|---|---|---|---|
| Out Diameter | 17.2mm~168mm | Length | 5800mm; 6000mm; 10000mm; 11500mm; 11800mm; And So On. |
| Equivalent Materials | 13CrMo4-5, T12, P12, 620-440, TU 13 CD 4-04 | Type | Seamless / Fabricated |
| Test | Heat Analysis/Tensile Test/Impact Test /NDE/PMI | Surface | Black Painted,PE Coated |
| High Light | alloy steel pipe,seamless alloy steel tube |
||
Product Description
Name : DIN 17175 13CrMo44 Alloy Seamless Steel Bolier Tubes Mechanical Properties / Wall Thickness Tolerance
Buy DIN 17175 Seamless Steel Pipes at reasonable price from us. Offered DIN 17175 Tubes is mass-produced by using best quality of stainless steel and cutting-edge technology by our professionals. With the purpose of fulfilling the extensive requirements of the customers, we provide this whole collection of DIN 17175 Pipes in different specifications. We are involved in delivering a range of DIN 17175 13CrMo44 Tubes to our well-regarded clienteles.
| Standard | : | DIN 17175 |
| Equivalent Standards | : | EN 10216-2, ASTM A213, ASME SA213, ASTM A335, BS 3606, NF A 49-213 |
| Material | : | 13CrMo44, 1.7335 |
| Equivalent Materials | : | 13CrMo4-5, T12, P12, 620-440, TU 13 CD 4-04 |
| Thickness | : | 1.8mm~22mm |
| Out Diameter | : | 17.2mm~168mm |
| Length | : | 5800mm; 6000mm; 10000mm; 11500mm; 11800mm; and so on. |
| Max length | : | 18000mm |
13CrMo44 Steel Pipe /Tube Chemical Composition :
| Grade | Material | C | Si | Mn | P | S | Cr | Mo |
| 13CrMo44 | 1.7335 | 0.10-0.18 | 0.10-0.35 | 0.40-0.70 | 0.035 | 0.035 | 0.70-1.10 | 0.45-0.65 |
DIN 17175 13CrMo44 Seamless Steel Pipes/ Tubes Mechanical properties:
| Grade | Material | Tensile strength N/mm2 | Yield strength thickness,mm | Elongation (L=5do) | Notch impact energy | |||
| ≤16 | >16≤40 | >40≤60 | ||||||
| N/mm2 min | ||||||||
| 13CrMo44 | 1.7335 | 440-590 | 290 | 290 | 280 | 22 | 20 | 34 |
Outside Diameter & Tolerance :
| Outside Diameter, mm | Tolerance, % |
| OD≤120 | ±0.6, 0.25mm min |
| OD>120 | ±0.75 |
Wall thickness & Tolerance :
| Outside Diameter , mm | Wall Thickness, mm | Tolerance, % |
| OD≤130 | WT≤2*S(DIN 2448) | +15/-10 |
| 2*S(DIN 2448)＜WT≤4*S(DIN 2448) | +12.5/-10 | |
| WT>4*S(DIN 2448) | ±9 | |
| 130＜OD≤320 | WT≤0.05*OD | +17.5/-12.5 |
| 0.05*OD＜WT≤0.11*OD | ±12.5 | |
| WT>0.11*OD | ±10 | |
| 320＜OD≤660 | WT≤0.05*OD | +22.5/-12.5 |
| 0.05*OD＜WT≤0.09*OD | +15/-12.5 | |
| WT>0.09*OD | +12.5/-10 |

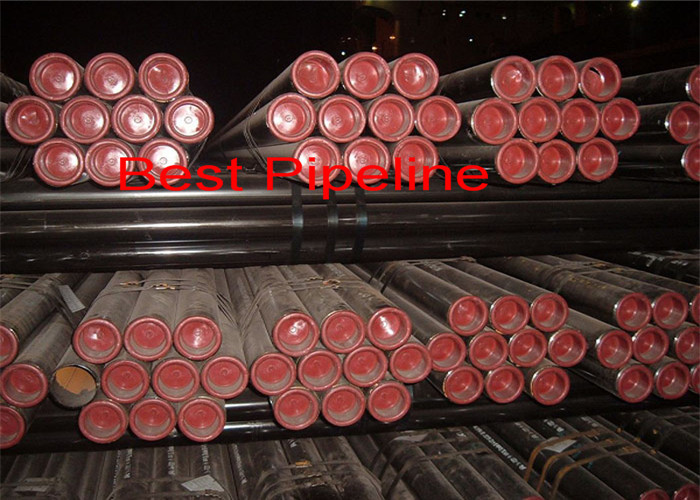

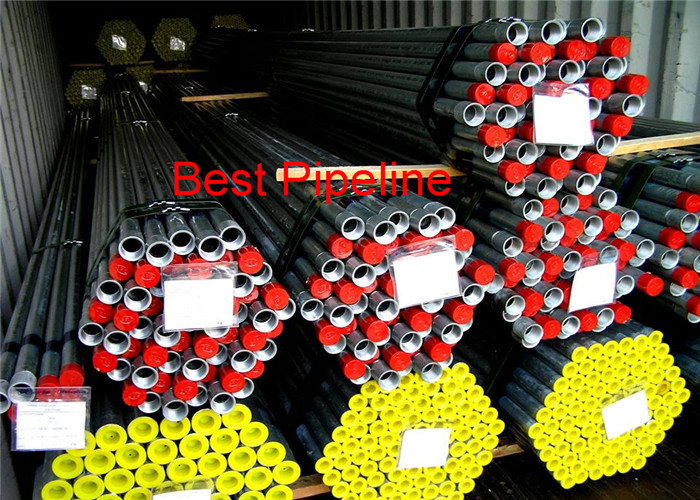

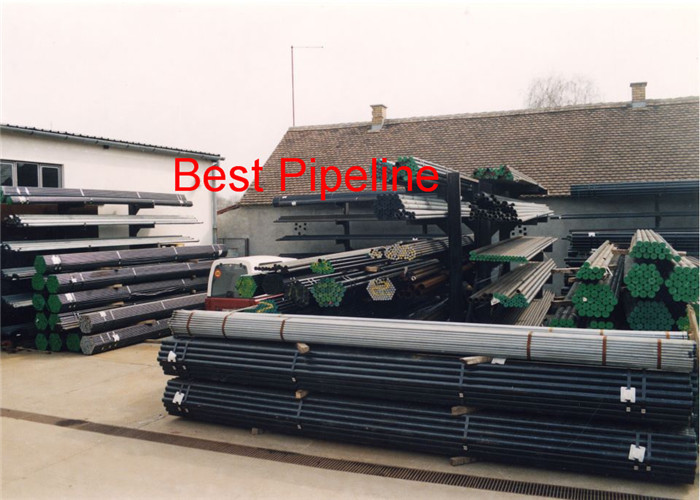

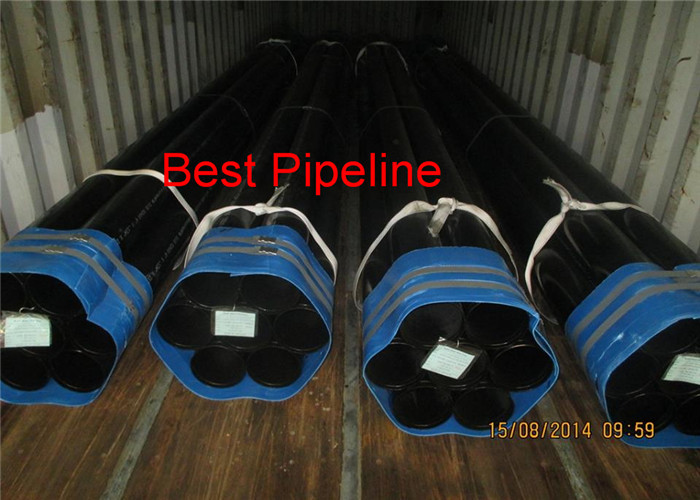

DIN 17175 13CrMo44 Alloy Seamless Steel Bolier Tubes Pictures :
