Hollow Section P355NE1 Alloy Steel Seamless Pipes , P355NH Square Steel Tubing
| Place of Origin | China/Japan |
|---|---|
| Brand Name | BEST |
| Certification | API, CE, PED, ISO |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Pipes May be furnished bard or coated and with capped ends |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C /TT |
| Supply Ability | 10000ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fob Price | 305-640 Usd/ton | Standard | EN10253-2 |
|---|---|---|---|
| Pipe Specification | P355NE1 / L415NE | Iran Standard | Molybdenum Alloy Steel Pipes In Iran |
| Packing | Pipes May Be Furnished Bard Or Coated And With Capped Ends | Test | SGS/BV/TUV |
| Leght | 6m | Application Industries | Petrochemical Industries |
| High Light | alloy steel pipe,seamless alloy steel tube |
||
Product Description
Name : Leading EN 10253-2 Grade P355NH Alloy Steel Seamless Pipes Suppliers | Hollow Sections Manufacturers in China
EN 10253-2 Grade P355NH Specification
EN Specification alloy steel Pipes are used for high temperature service applications.Seamless Alloy Steel Pipes according to EN 10253-2 Grade P355NH are reheated and furnished in full annlealed , isothermal annealed or normalised quenched and tempered condition .EN 10253-2 Grade P355NH Alloy Steel Seamless Pipes have a typical chemistry with additions of max 0.30 Chromium and max 0.08 Molybdenum.Bearing minimum tensile strength of 490 Mpa and maximum tensile strength 650 Mpa , EN 10253-2 Grade P355NH Pipes have a minimum yield strength of 355 Mpa.
EN 10253-2 Grade P355NH Properties
| Chemical Properties | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
| max 0.20 | max 0.50 | 0.90-1.70 | 0.03 | 0.025 | max 0.08 | min 0.50 | max 0.30 | max 0.30 | Nb min 0.0 |
| Mechanical Properties | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Yield Strength | Tensile Strength | Elongation A5 min | |||||||
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage | ||||
| 490 | 650 | – | 22 | ||||||
| Equivalent Designation | |||||
|---|---|---|---|---|---|
| DIN | EN | BS | NFA | ASTM | ASME |
| DIN 17178 Grade FGP 36 W | EN 10253-2 Grade P355NH | NFA A 36-2051) Grade A 52 AP | ASTM A 516 Grade 70 | ASME SA 516 Grade 70 |
–
|
Straightness
The maximum deviation from the straight line is 1 mm on a gauge length of 1000 mm.
Ovality
The maximum out-of-roundness is 65% of the total outer diameter tolerance.

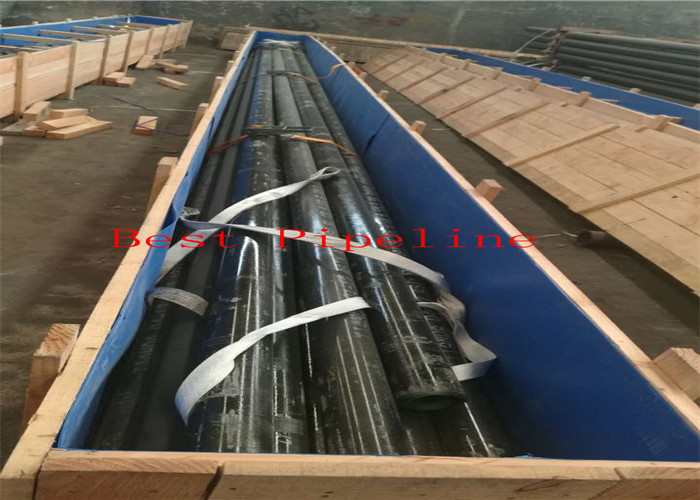

EN 10253-2 Grade P355NH Pipe Pictures
