DIN 17175 16MO3 Alloy Steel Seamless Pipes Mild Steel Tube With Alloy 4130
| Place of Origin | China/Japan |
|---|---|
| Brand Name | BEST |
| Certification | API, CE, PED, ISO |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Pipes May be furnished bard or coated and with capped ends |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C /TT |
| Supply Ability | 10000ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| DIN | 17175 | Type | High Pressure Steel Piipes |
|---|---|---|---|
| EN | EN 10216-2 SA335 / SA213 / SA209 16Mo3 Pressure Steel Pipe | Iran Standard | Molybdenum Alloy Steel Pipes In Iran |
| Specific Qualification | TUV:AD WO-TRD100 / PED97/23/EC /IBR | Application Industries | Petrochemical Industries |
| High Light | alloy steel pipe,seamless alloy steel tube |
||
Product Description
Name : EN 10216-2 16MO3 Seamless Alloy Steel Pipes
EN Specification alloy steel Tubes are used for high temperature service applications.Seamless Alloy Steel Tubes according to EN 10216-2 Grade 16Mo3 are reheated and furnished in full annlealed , isothermal annealed or normalised quenched and tempered condition . EN 10216-2 Grade 16Mo3 Alloy Steel Seamless Tubes have a typical chemistry with additions of 0.25-0.35 Molybdenum.Bearing minimum tensile strength of 450 Mpa and maximum tensile strength 600 Mpa, EN 10216-2 Grade 16Mo3 Tubes have a minimum yield strength of 280 Mpa.
Straightness
The maximum deviation from the straight line is 1 mm on a gauge length of 1000 mm.
Ovality
The maximum out-of-roundness is 65% of the total outer diameter tolerance.
16Mo3 Seamless Alloy Steel Pipe /Tube Chemical Composition :
| C, % | Si, % | Mn, % | P, % | S, % | Mo, % |
| 0.12-0.20 | 0.35 max | 0.40-0.90 | 0.025 max | 0.020 max | 0.25-0.35 |
DIN 17175 Seamless Steel Pipes Mechanical properties:
| Tensile Strength , MPa | Yield Strength, MPa | Elongation, % |
| 450-600 | 280 min | 22 min |

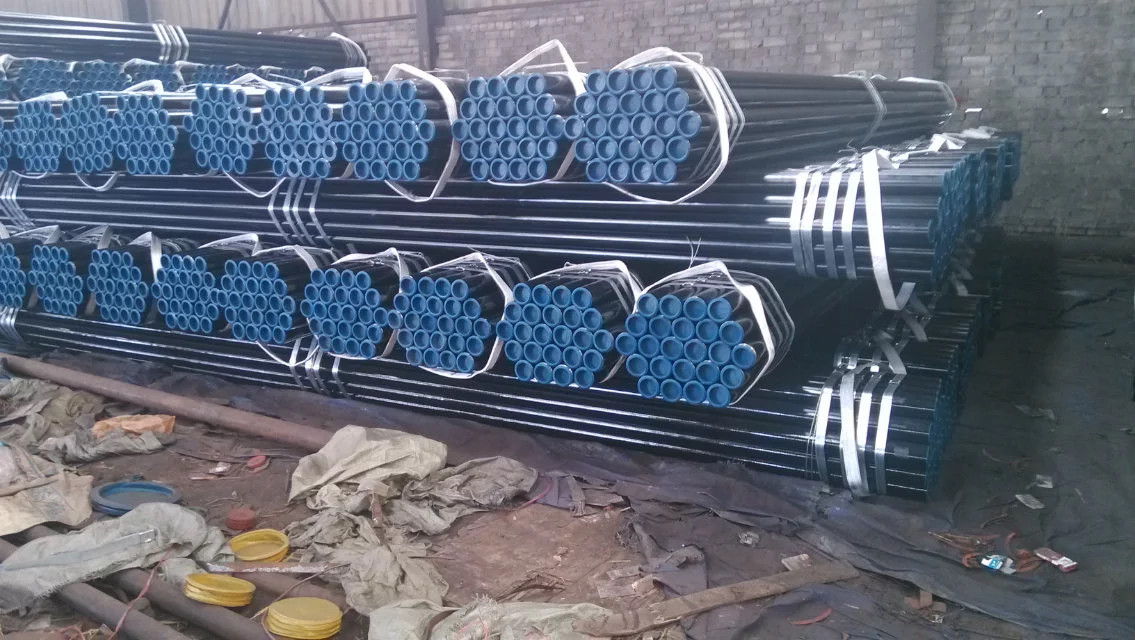

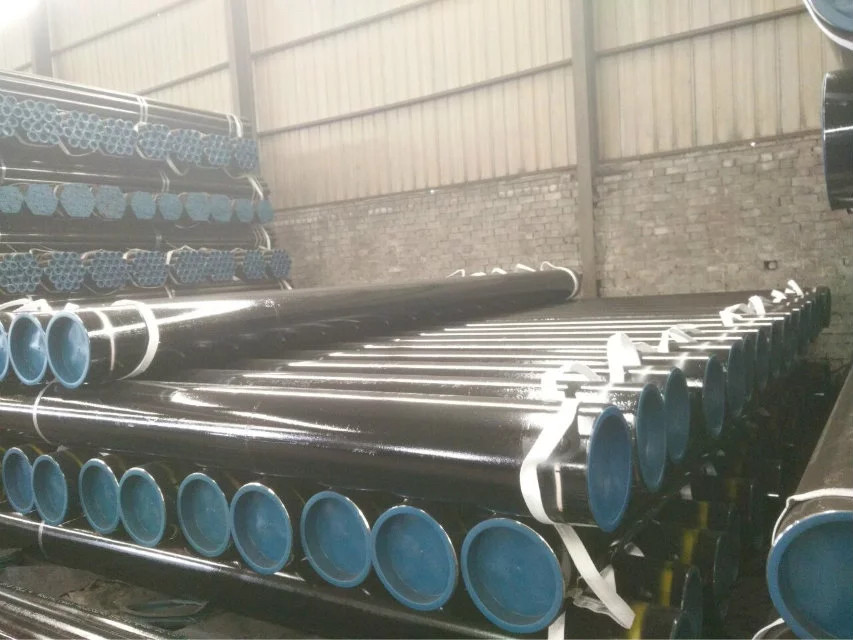

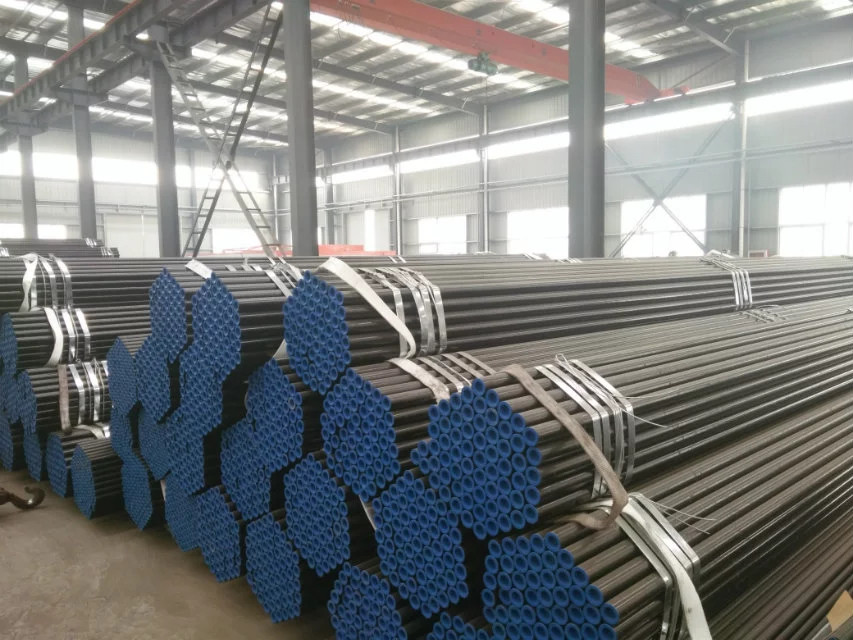

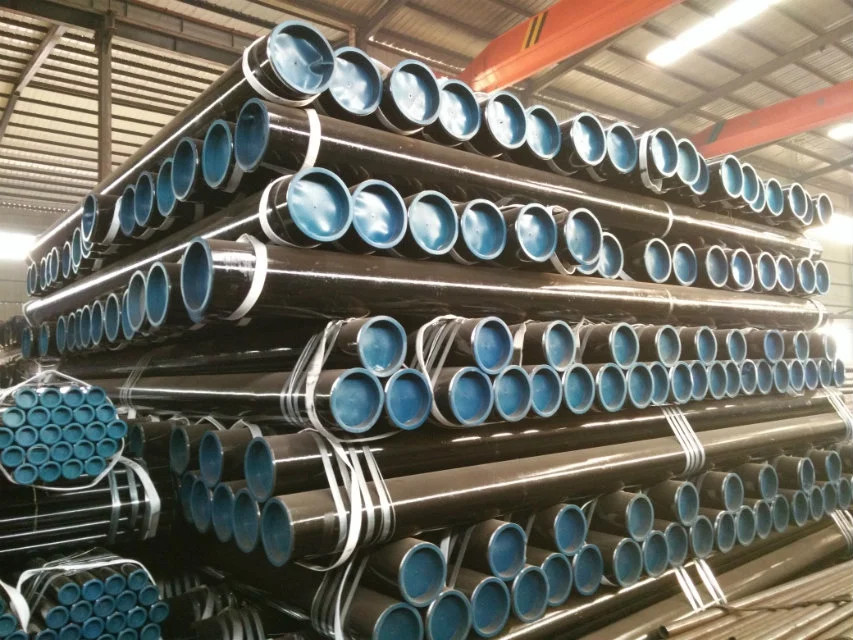

EN 10216-2 boiler steel Pipe 16MO3 in Jordan Pictures :
