EN 10297 20MNV6 Carbon Seamless Steel Pipe With Carbon Steel Plate
| Place of Origin | China/Japan |
|---|---|
| Brand Name | BEST |
| Certification | API, CE, PED, ISO |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Pipes May be furnished bard or coated and with capped ends |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C /TT |
| Supply Ability | 10000ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| DIN | 17MnV6 20MnV6 | AFNOR | 18MV5 |
|---|---|---|---|
| Great Britain | BS4360 GR | Tolerance | Maximum 1/2 Of The Diameter Tolerance |
| Packing | Pipes May Be Furnished Bard Or Coated And With Capped Ends | Specific Qualification | TUV:AD WO-TRD100 / PED97/23/EC /IBR |
| Leght | 6m | Weldability | Excellent |
| High Light | alloy steel pipe,alloy steel seamless tubes |
||
Product Description
Name : EN 10297-1 20MNV6 High Pressure Cylinder tube H8 With alloy Steel Material
Hard chrome plated barsteel Cromax® 280X/20MnV6 and C45E.
The bar is ready to use and has a diameter tolerance of f7.
The thickness of the chrome layer is minimum 20 μm; sizes <20 mm
minimum 15 μm. The surface roughness (Ra) is maximum 0,2 μm (cut-off 0,8 mm).
The surface hardness is minimum 800HV.
The X added to the 280 grade is giving clearly higher mechanical properties
for the sizes 25 - 80 mm.
The hard chrome plated bars will be mainly used as pistonrods for hydraulic and
pneumatic cylinders. In an agressive environment, like the process industry,
in the mining industry, along the shore, on the roads and in the offshore-industry,
one could use bars of chrome plated stainless steel bars or nickel chrome plated bars
EN 10297-1 Grade 20MnV6 Properties
| Chemical Properties | |||||||||
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
| 0.16-0.22 | 0.10-0.50 | 1.30-1.70 | 0.035 | 0.04 | – | – | – | – | V max 0.15 |
| Mechanical Properties | |||||||||
| Yield Strength | Tensile Strength | Elongation A5 min | |||||||
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage | ||||
| 600 | – | – | 19 | ||||||
| Equivalent Designation | |||||
| DIN | EN | BS | NFA | ASTM | ASME |
| – | EN 10297-1 Grade 20MnV6 | – | – | – | – |
Straightness
The maximum deviation from the straight line is 1 mm on a gauge length of 1000 mm.
Ovality
The maximum out-of-roundness is 65% of the total outer diameter tolerance.
Tube Ends
All tubes are supplied with clean, square cut ends.Deburring and/or chamfering can be carried out on request.
Tube Surface
Tubes are supplied normally without anti-corrosive treatment, but anti-corrosive treatment is available and is carried out on request.

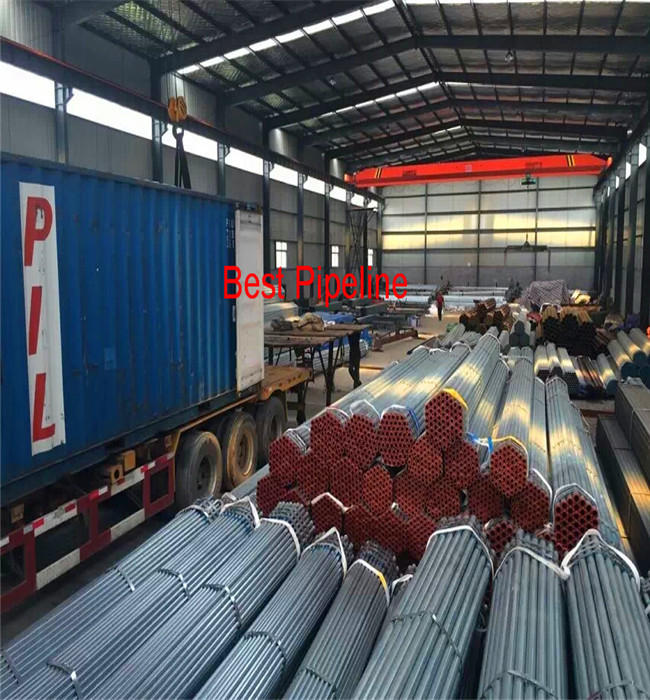

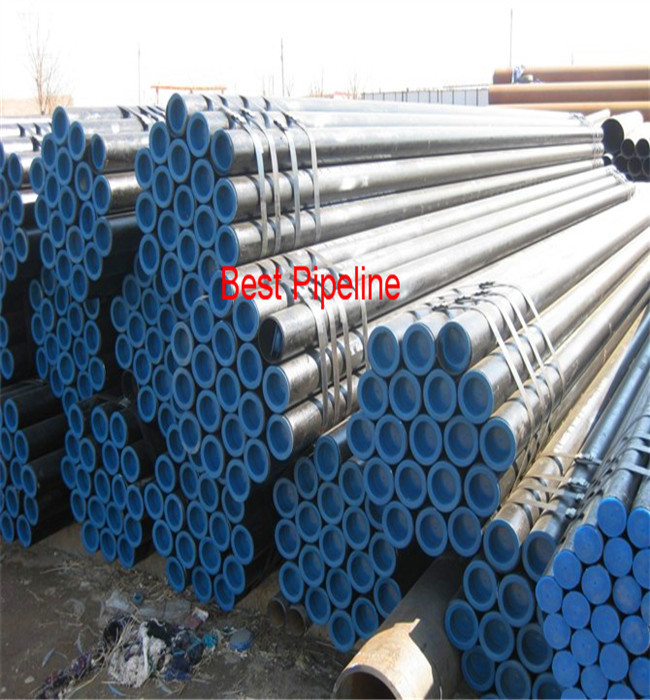

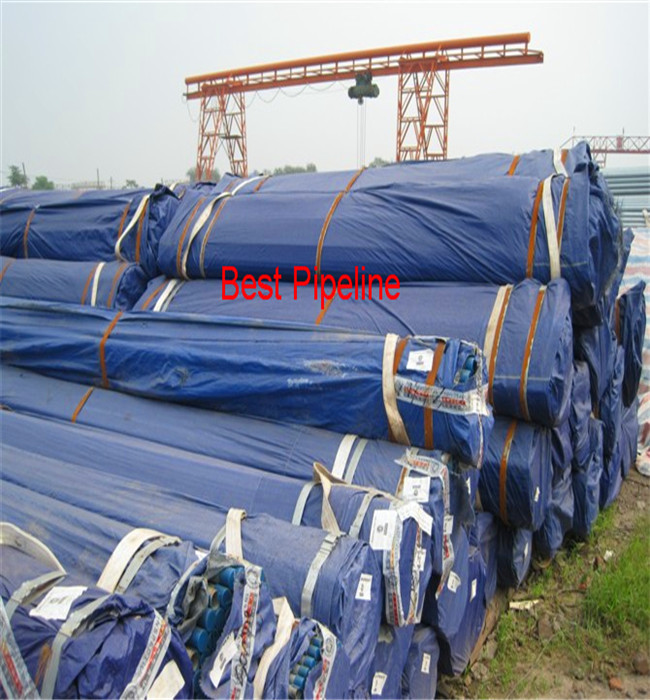

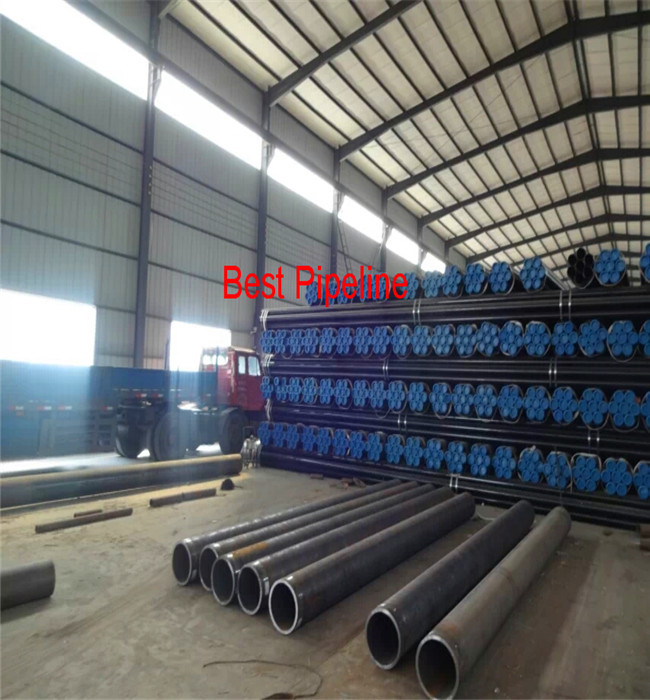

EN 10297-1 20MNV6 High Pressure Cylinder tube Pictures
