DIN 11851 Forged Pipe Fittings , Socket Weld Stainless Steel Pipe Fittings

Place of Origin China
Brand Name Best
Certification API/CE/ISO/TUV
Model Number 1/2''-12''
Minimum Order Quantity 1 pcs
Price 0.1-12 usd/pcs
Packaging Details plywood cases
Delivery Time 5-20 days after the payment received
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Ton/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN 11851 / ASME B16.11 Material 304(L)
Certificate Stainless Steel Class Rate 3000/6000/9000
Thread BSPP BSPT NPT Surface Treatnment BSPP BSPT NPT
Technics Forged Modele Number 1/2"-4"
High Light

forged steel pipe fittings

,

forged carbon steel pipe fittings

Leave a Message
Product Description

Product Name : Liner threaded outsinde DIN 11851 304(L) Standard : ASME B16.11 With : Stainloess Steel Forged Fittings



Product DESIGN / DIMENSIONS


According to: ASME B16.11, MSS SP95, BS 3799 MSSSP83
From 1/8" TO 4"

RATING / SCHED.

· BW: 40/STD/80/160/XS/XXS

· SW: 3000/6000/9000

· NPT: 2000/3000/6000



   EXAGONAL-BUSHING



  EXAGONAL BUSHING is a forged fittings manufactured in accordance with B16.11.
  EXAGONAL BUSHING is a fitting used to joint two threaded items of different size

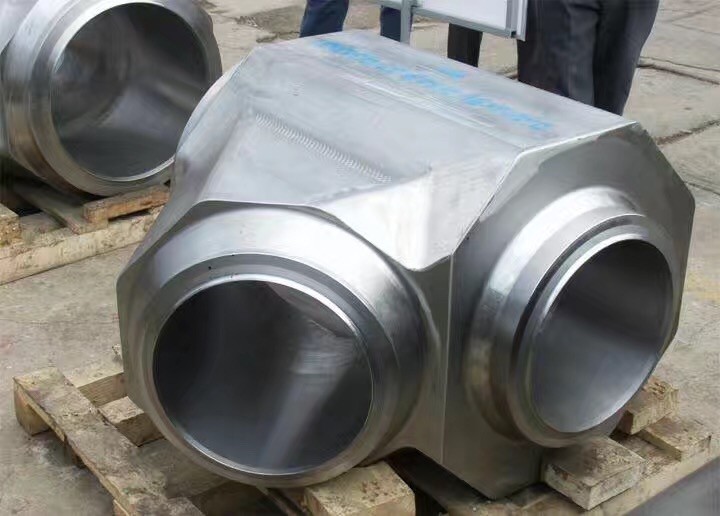

TEE

   TEE is a forged fitting used for splitting and changing flow direction of run pipe of 90° deg.
   It is available in two categories:

· EQUAL if header and branch pipe have the same size

· REDUCED if header and branch pipe have the different size

· TEE can be manufactured with butt-weld extremities, socket extremities or threaded extremities.

· Dimensions of TEE can be in accordance with ASME B16.9, MSS SP-75.
TEE can be manufactured on customer’s request with a special design.

·

·

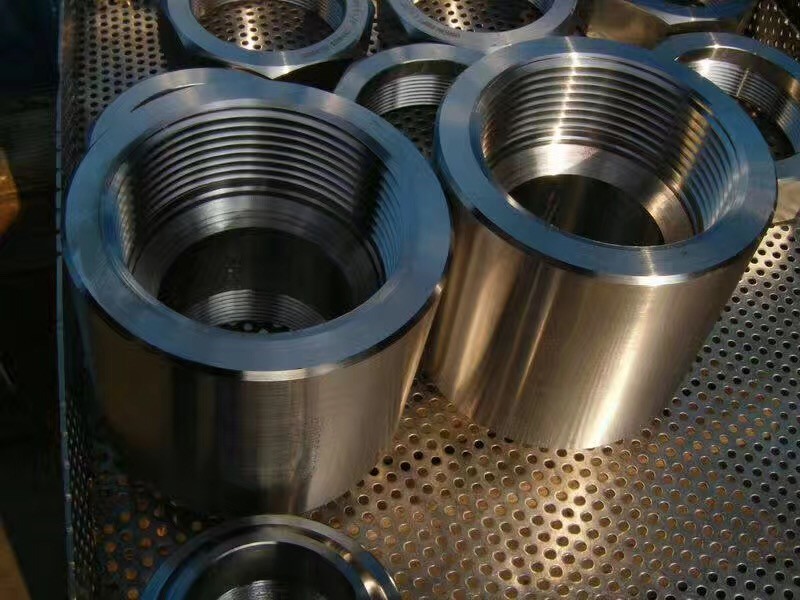

COUPLING

COUPLING is a forged fittings manufactured in accordance with B16.11.
COUPLING is a fitting that allows two pipes to be joint together.
COUPLING can per manufactured with socket-weld extremities, threaded extremities or a combination of the two



HALF-COUPLING

HALF-COUPLING is a forged fittings manufactured in accordance with B16.11.
HALF-COUPLING is a fitting that allows one pipe and one fitting to be joint together.
HALF-COUPLING can per manufactured with socket-weld extremity or threaded extremity







OD 1/8-8"
Wall Thinkness 0.5mm-10mm
SCH20,SCH30,SCH40,SCH80,SCH100,SCH120,SCH160,STD,XS,or as buyer's requirer
Length Less than 12m
Series Heavy series,Standard series,Medium series,Light series
connection Female
Shape Equal
Certificate ISO9001:2000,BV,SGS
Material 1.Carbon steel 2.Alloy steel 3.Stainless steel
Brithsh Standard Threads:BS21
DIN Standard Threads:DIN2999
American Standard Threads:ASTM A865-9
Hydraulic Test Working Pressure:Max 1.5Mpa
Test Pressure:Max 2.5Mpa
Temperature -20~120℃
Model Half coupling/socket,full coupling/socket
Surface

Galvanized
Electro glavanised
Normal black/Shining black

Package

1.Cartons Without Pallets.
2.Cartons With Pallets.
3.Double Woven Bags
Or as buyer's requirements





DIN 11851  Forged Pipe Fittings , Socket Weld Stainless Steel Pipe Fittings   0

DIN 11851  Forged Pipe Fittings , Socket Weld Stainless Steel Pipe Fittings   1

DIN 11851  Forged Pipe Fittings , Socket Weld Stainless Steel Pipe Fittings   2

DIN 11851  Forged Pipe Fittings , Socket Weld Stainless Steel Pipe Fittings   3

DIN 11851  Forged Pipe Fittings , Socket Weld Stainless Steel Pipe Fittings   4



Product Show

DIN 11851  Forged Pipe Fittings , Socket Weld Stainless Steel Pipe Fittings   5

DIN 11851  Forged Pipe Fittings , Socket Weld Stainless Steel Pipe Fittings   6
