3000# Union Stainless Steel Socket Weld Fittings 90 Degree Steel Pipe Elbow
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API/CE/ISO/TUV |
| Model Number | 1/2''-12'' |
| Minimum Order Quantity | 1 pcs |
| Price | 0.1-12 usd/pcs |
| Packaging Details | plywood cases |
| Delivery Time | 5-20 days after the payment received |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 Ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Elbow | Pressure | 6000LBS |
|---|---|---|---|
| Certificate | Stainless Steel | Class Rate | 3000/6000/9000 |
| Surface Treatnment | BSPP BSPT NPT | Standard | ASME B16.11 |
| High Light | forged steel pipe fittings,forged carbon steel pipe fittings |
||
Product Description
Product Name : Elbow 6000 lbs 90 degrees Standard : ASME B16.11 Material :316(L) With : Stainloess Steel Forged Fittings
Forged Fittings
We offer a broad range of socket weld and screwed fittings that assure smooth flow of liquid in industrial piping systems.
These forged pipe fittings are designed as per the client's specifications and are manufactured using highest quality of steel forgings, thus high in performance & durability.
| Nippolets | Swaged Nippolets (3000#) | Sockolets (3000#, 6000#) |
| Threadolets (3000#, 6000#) | Union (3000#) | Reducer Insert (3000#, 6000#) |
| Socket Welding Fittings | Forged Threaded Fittings | Plugs And Bushings |
| Olets |
Product DESIGN / DIMENSIONS
According to: ASME B16.11, MSS SP95, BS 3799 MSSSP83
From 1/8" TO 4"
RATING / SCHED.
· BW: 40/STD/80/160/XS/XXS
· SW: 3000/6000/9000
· NPT: 2000/3000/6000
EXAGONAL-BUSHING
EXAGONAL BUSHING is a forged fittings manufactured in accordance with B16.11.
EXAGONAL BUSHING is a fitting used to joint two threaded items of different size
TEE
TEE is a forged fitting used for splitting and changing flow direction of run pipe of 90° deg.
It is available in two categories:
· EQUAL if header and branch pipe have the same size
· REDUCED if header and branch pipe have the different size
· TEE can be manufactured with butt-weld extremities, socket extremities or threaded extremities.
· Dimensions of TEE can be in accordance with ASME B16.9, MSS SP-75.
TEE can be manufactured on customer’s request with a special design.
COUPLING
COUPLING is a forged fittings manufactured in accordance with B16.11.
COUPLING is a fitting that allows two pipes to be joint together.
COUPLING can per manufactured with socket-weld extremities, threaded extremities or a combination of the two
HALF-COUPLING
HALF-COUPLING is a forged fittings manufactured in accordance with B16.11.
HALF-COUPLING is a fitting that allows one pipe and one fitting to be joint together.
HALF-COUPLING can per manufactured with socket-weld extremity or threaded extremity

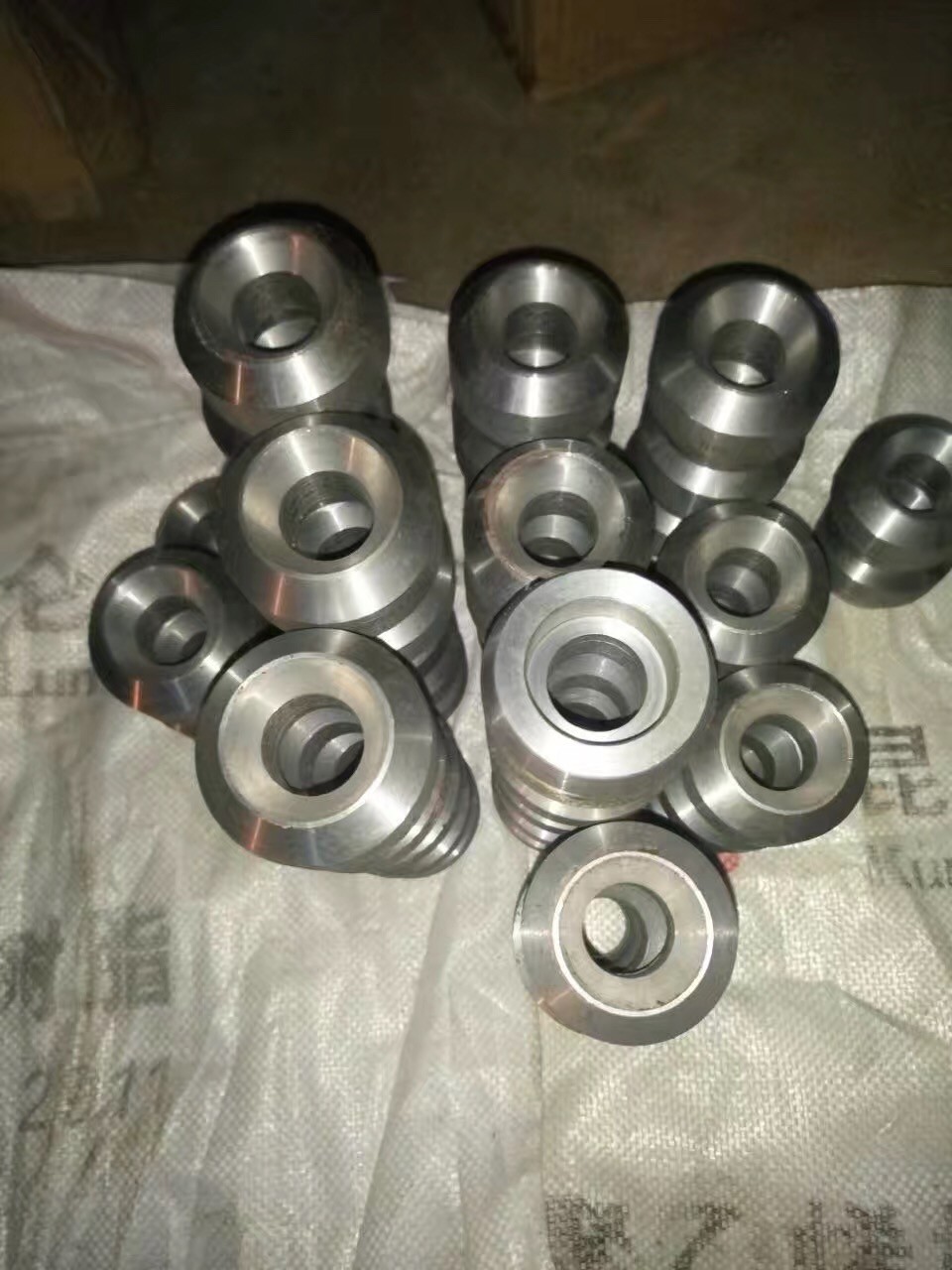

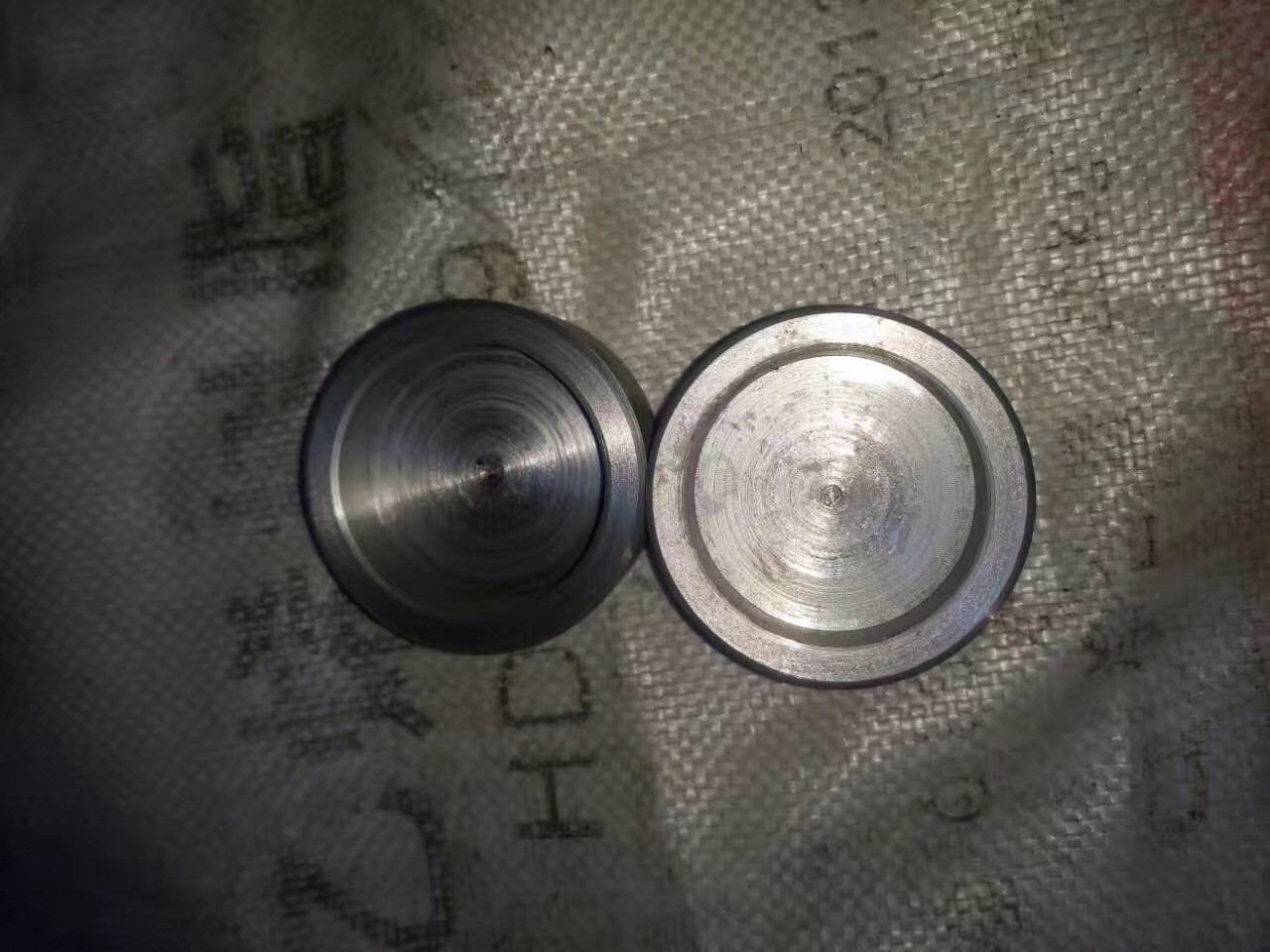

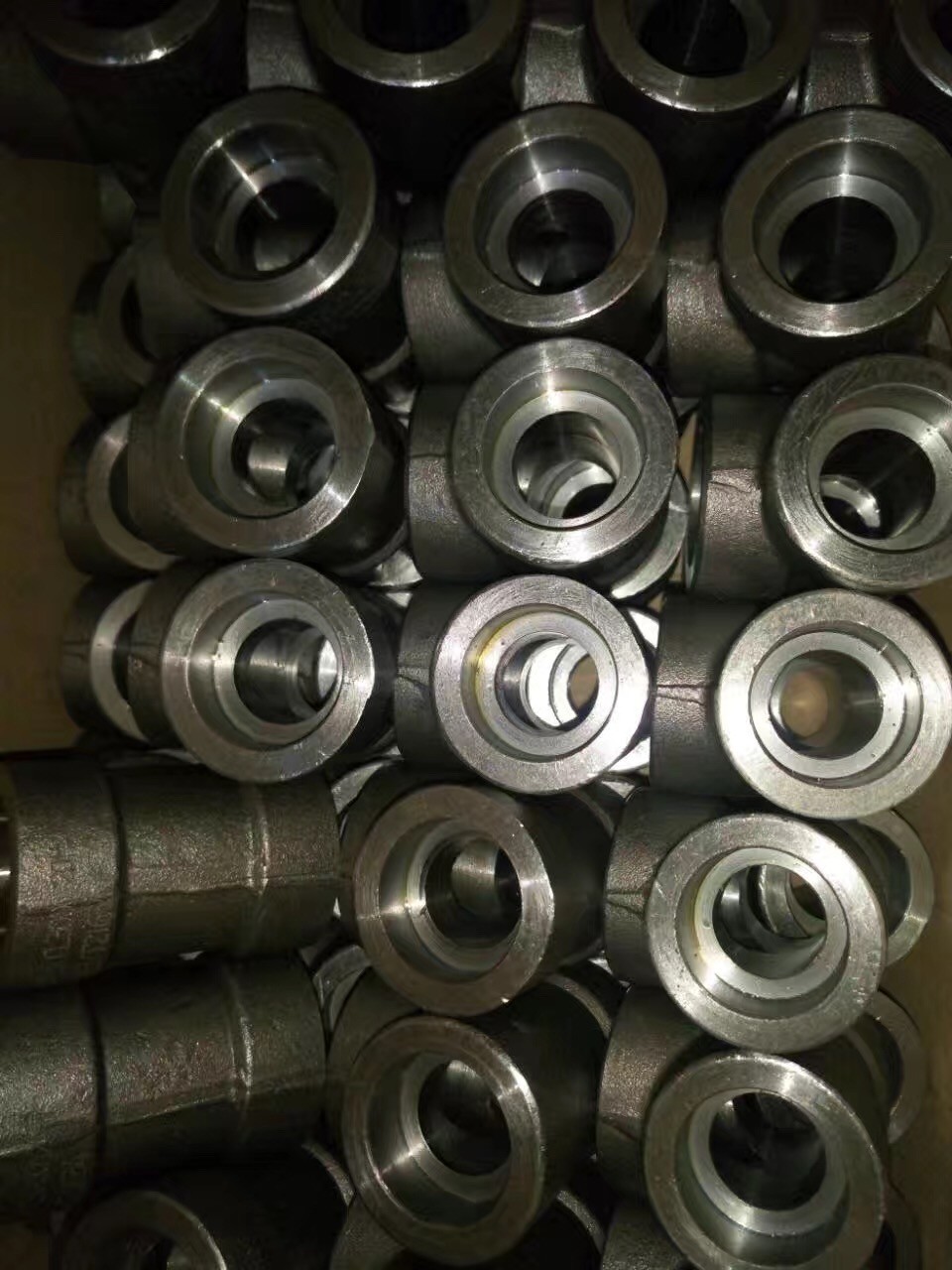

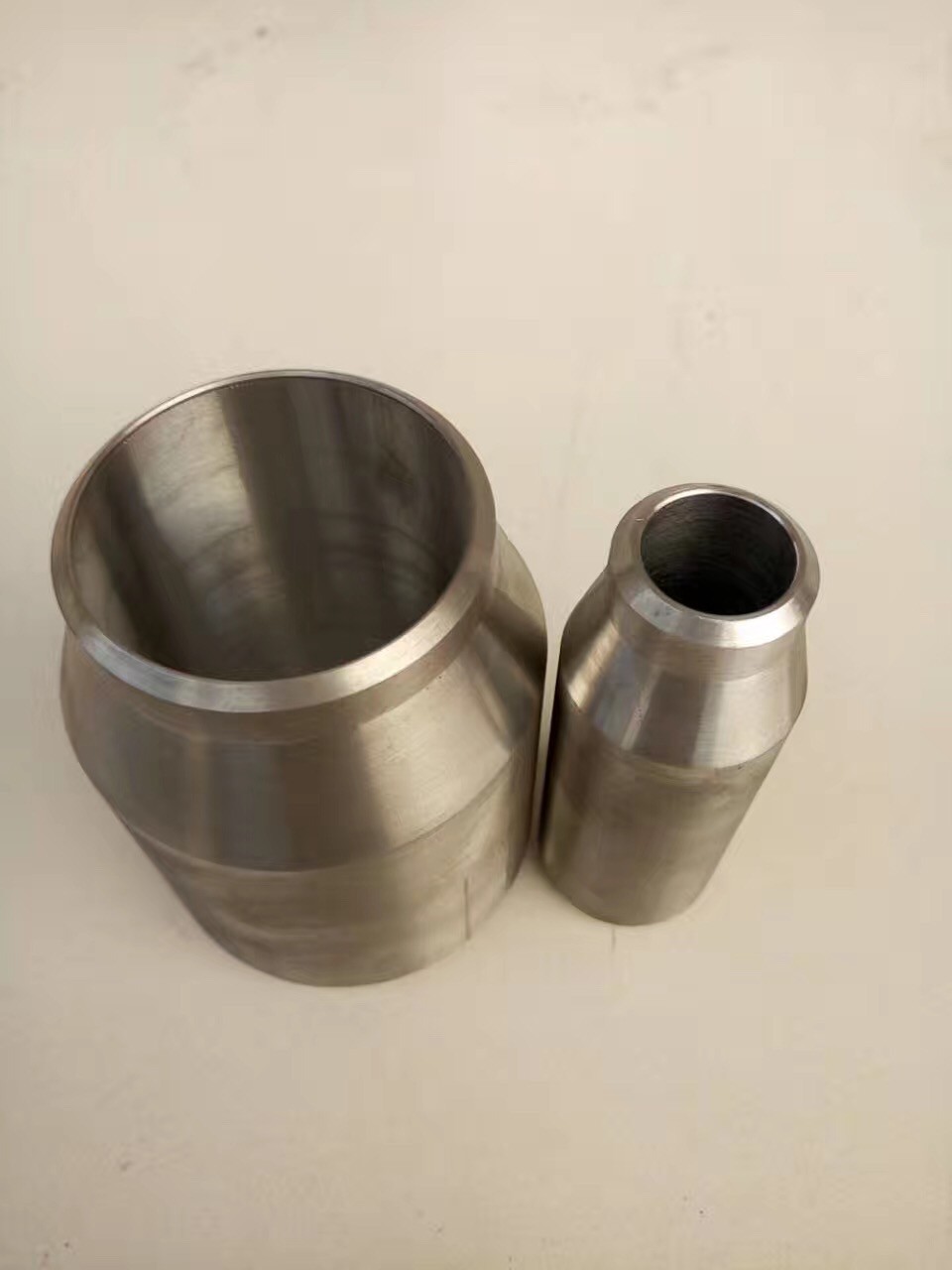

Product Show
The reason why you Choose us?
· ISO System
· DNV Audited company
· Industry experience over 20 years.
· Management Systems-Internal Software
· Monthly Exporting Quantity-More Than 100 Tons.
· Customer location -More than 50 countries worldwide.
· We have the most convenient transport and prompt delivery.
· We offer competitive price with best service .
· We have high technical production line with top quality products.
· We have won high reputation based on best quality products.
