PN 50-250 UNI Forged Steel Flanges Aluminum Steel Welding Neck
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API/CE/ISO/PED |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | 1 Pcs |
| Price | 1 usd/pcs |
| Packaging Details | Standard export seaworthy package,by wooden box,or as required |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C/ TT |
| Supply Ability | 100000 Ton/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ORIFICE FLANGES | Pressure | CLASS 300 - 1500 |
|---|---|---|---|
| Standard | ANSI /ASME/UNI/JIN/DIN/AS2129 | Place Of Origin | China |
| Model Number | RC-BL Flange | Type | Flange |
| Surface Treatment | Anti-rust Oil, | Class | 150Psi/300 Psi/600psi /1500 Psi |
| High Light | weld neck flanges,stainless steel flanges |
||
Product Description
Product Name : Best Pipeline Flange provides Forged Steel Flanges to Steel markets Material ALUMINUM - 1100, 2014, 3003, 5083, 5086
Flanges we also provide:
- ANSI/ASME FORGED FLANGES
- MSS-SP-44 FLANGES/ANSI B 16.47 SERIES A
- API TYPE 6A - RTJ Face Flanges.
- API-605 FLANGES/ANSI B 16.47 SERIES B
- A.G.A. ORIFICE UNIONS - Furnished with or without Hardware.
- ASME BOILER CODE FLANGES
- CL. 125 LIGHTWEIGHT FLANGES - For low pressure applications.
- PLATE FLANGES - From 1/4" thru 8" Thick, Including AWWA C-207,and all other
special designs. - ANSI LONG WELDNECKS & SPECIAL BODY CONNECTORS
- SPECTACLE BLINDS
- Special Ring Flanges
Forged Flanges Specification :
Standards : A-182, ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 15 NB to 750 NB
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Forged Flanges Material & Grades :
Stainless Steel Forged Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Alloy Steel Forged Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex & Super Duplex Steel Forged Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61, 2205 (UNS No. S31803), 2507 (UNS No. S32750), (UNS S32950)
Carbon Steel Forged Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70
Copper Alloy Steel Forged Flanges : UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30)
Nickel Alloy Forged Flanges : Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)
300lb Flange
Length through Hub Y
| Nominal Bore | Pipe OD A | Flange dia. B | Raised Face dia. D | Flange Thickness T | Welding Neck | Slip-on Screwed Socket-weld | Bolt PCD | No. of Bolts | Bolt Hole dia. |
| 15 | 21.4 | 95.2 | 34.9 | 14.3 | 52.4 | 22.2 | 66.7 | 4 | 15.9 |
| 20 | 27.0 | 117.5 | 42.9 | 15.9 | 57.1 | 25.4 | 82.6 | 4 | 19.0 |
| 25 | 34.1 | 123.8 | 50.8 | 17.5 | 61.9 | 27.0 | 88.9 | 4 | 19.0 |
| 32 | 42.9 | 133.3 | 63.5 | 19.0 | 65.1 | 27.0 | 98.4 | 4 | 19.0 |
| 40 | 48.4 | 155.6 | 73.0 | 20.6 | 68.3 | 30.2 | 114.3 | 4 | 19.0 |
| 50 | 60.3 | 165.1 | 92.1 | 22.2 | 69.8 | 33.3 | 127.0 | 8 | 19.0 |
| 65 | 73.0 | 190.5 | 104.8 | 25.4 | 76.2 | 38.1 | 149.2 | 8 | 22.2 |
| 80 | 88.9 | 209.5 | 127.0 | 28.6 | 79.4 | 42.9 | 168.3 | 8 | 22.2 |
| 90 | 101.6 | 228.6 | 139.7 | 30.2 | 81.0 | 44.4 | 184.1 | 8 | 22.2 |
| 100 | 114.3 | 254.0 | 157.2 | 31.7 | 85.7 | 47.6 | 200.0 | 8 | 22.2 |
| 125 | 141.3 | 279.4 | 185.7 | 34.9 | 98.4 | 50.8 | 234.9 | 8 | 22.2 |
| 150 | 165.1 | 317.5 | 215.9 | 36.5 | 98.4 | 52.4 | 269.9 | 12 | 22.2 |
| 168.3 | 317.5 | 215.9 | 36.5 | 98.4 | 52.4 | 269.9 | 12 | 22.2 | |
| 200 | 219.1 | 381.0 | 269.9 | 41.3 | 111.1 | 61.9 | 330.2 | 12 | 25.4 |
| 250 | 273.1 | 444.5 | 323.8 | 47.6 | 117.5 | 66.7 | 387.3 | 16 | 28.6 |
| 300 | 323.9 | 520.7 | 381.0 | 50.8 | 130.2 | 73.0 | 450.8 | 16 | 31.7 |
| 350 | 355.6 | 584.2 | 412.7 | 54.0 | 142.9 | 76.2 | 514.3 | 20 | 31.7 |
| 400 | 406.4 | 647.7 | 469.9 | 57.1 | 146.0 | 82.5 | 571.5 | 20 | 34.9 |
| 450 | 457.2 | 711.2 | 533.4 | 60.3 | 158.7 | 88.9 | 628.6 | 24 | 34.9 |

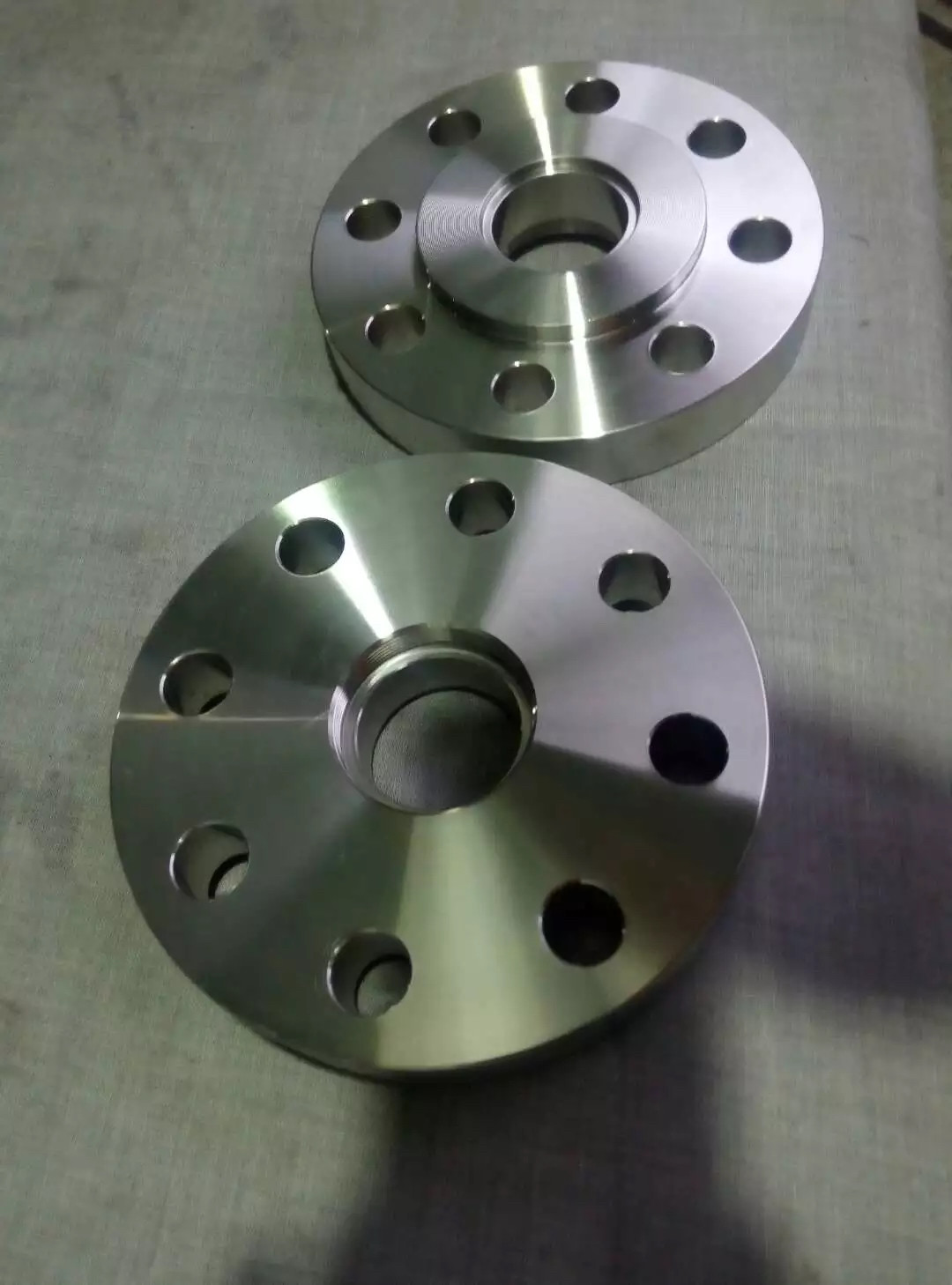

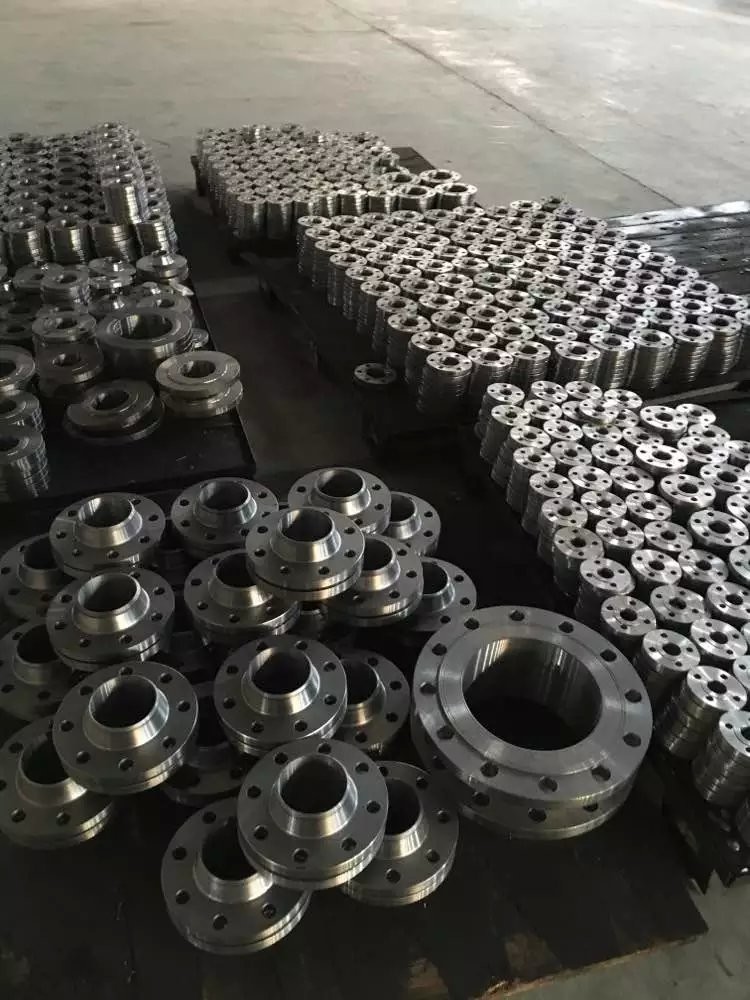

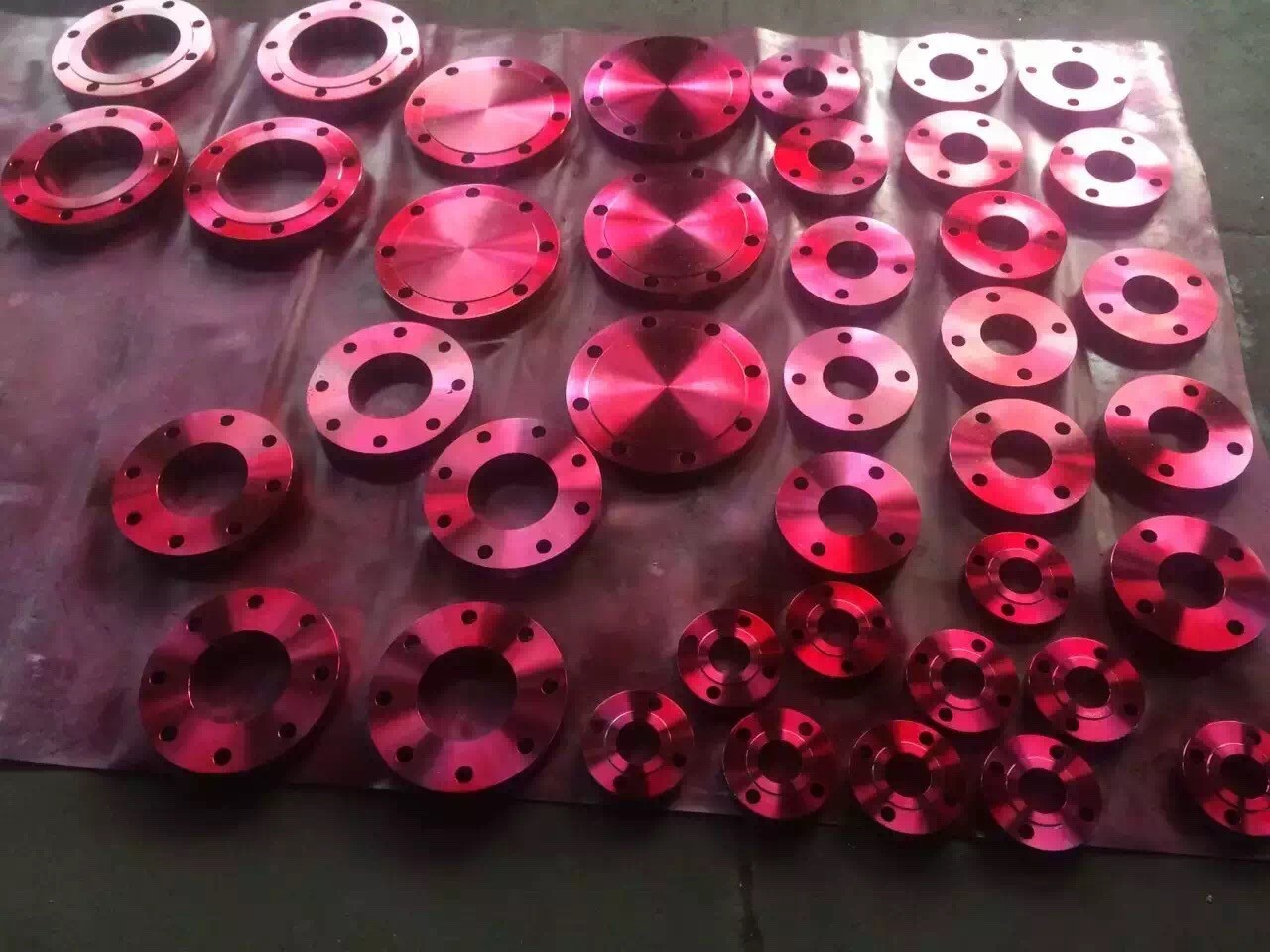

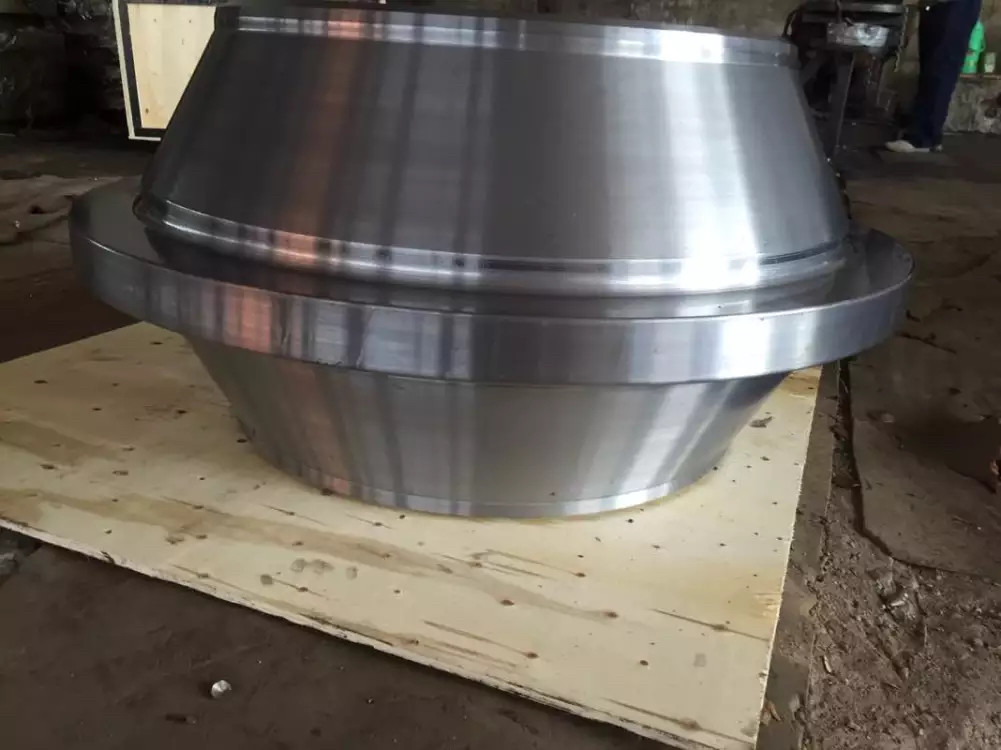

Flange Pictures
