Class Pn20 Pn420 Slip On Pipe Flanges , Stainless Steel Threaded Pipe Flange
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API/CE/ISO/PED |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | 1 Pcs |
| Price | 1 usd/pcs |
| Packaging Details | Standard export seaworthy package,by wooden box,or as required |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C/ TT |
| Supply Ability | 100000 Ton/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Welding Neck, Slip-on, Threaded | Pressure | CLASS 150 (PN20) |
|---|---|---|---|
| Standard | ANSI /ASME/UNI/JIN/DIN/AS2129 | Place Of Origin | China |
| Surface Treatment | Anti-rust Oil, | Class | 150Psi/300 Psi/600psi /1500 Psi |
| High Light | weld neck flanges,stainless steel flanges |
||
Product Description
Product Name : FLANGES CLASS 150 (PN20) to CLASS 2500 (PN 420) Welding Neck, Slip-on, Threaded, Socket Welding Lap Joint, Blind ..
WELDING NECK
They join the buttwelded pipe. They are preferred when radio graphed joints is required, or when e fforts are highest on the union. The long conical neck optimazis stress distribution.
| Size Heading | Pressure | Dimensional Standard |
| 1/2”To 48” | 150# | ANSI/ASMEB16.5 |
| 1/2”To 48” | 300# | ASMEB16.47 |
| 1/2”To 24” | 400# | SR.A |
| 1/2”To 30” | 600# | SR.B |
| 1/2”To 24” | 900# | MSSSP44 |
| 1/2”To 12” | 1500# | BS3293 |
| 1/2”To 08” | 2500# | BS4504 /DIN |
Slip On Flange
Place two fillets by welding, sliding inside the tube. So its installation cost is lower, requiring less precision in cutting the pipe
| Size Heading | Pressure | Dimensional Standard |
| 1/2”To 48” | 150# | ANSI/ASMEB16.5 |
| 1/2”To 48” | 300# | ASMEB16.47 |
| 1/2”To 24” | 400# | SR.A |
| 1/2”To 30” | 600# | SR.B |
| 1/2”To 24” | 900# | MSSSP44 |
| 1/2”To 12” | 1500# | BS3293 |
| 1/2”To 08” | 2500# | BS4504 /DIN |
Blind Flange
Developed especially for small diameters and high pressures. Tube is inserted in them to the seat and then is welded in against the cube steak.
| Size Heading | Pressure | Dimensional Standard |
| 1/2”To 24” | 150# | ANSI/ASMEB16.5 |
| 1/2”To 24” | 300# | ASMEB16.47 |
| 1/2”To 24” | 400# | SR.A |
| 1/2”To 24” | 600# | SR.B |
| 1/2”To 24” | 900# | MSSSP44 |
| 1/2”To 12” | 1500# | BS3293 |

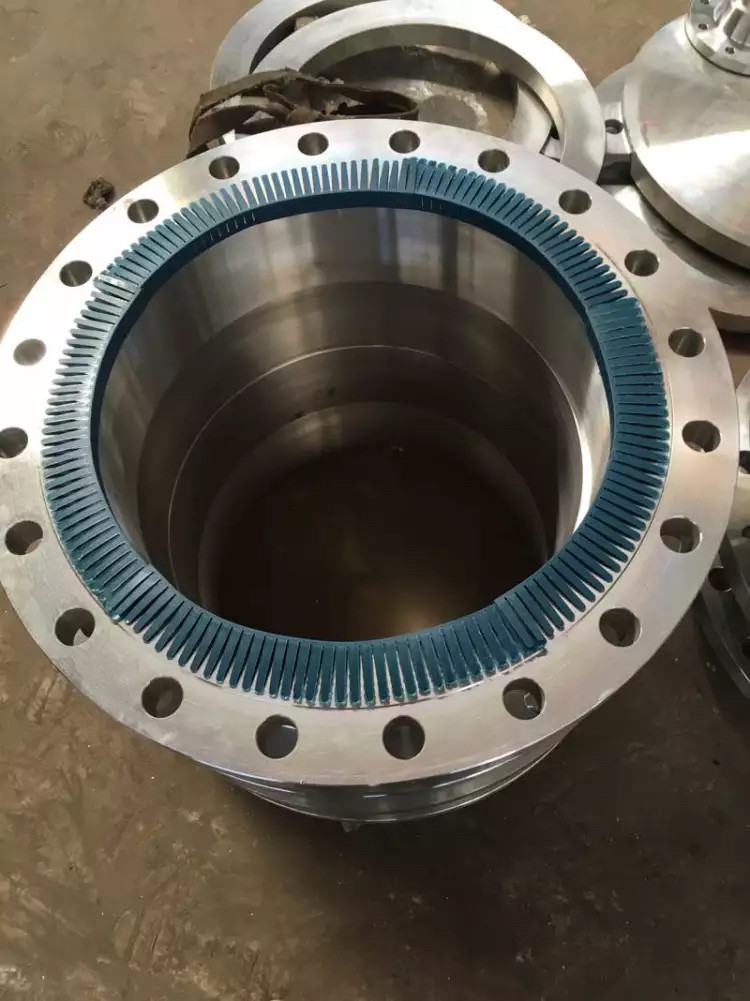

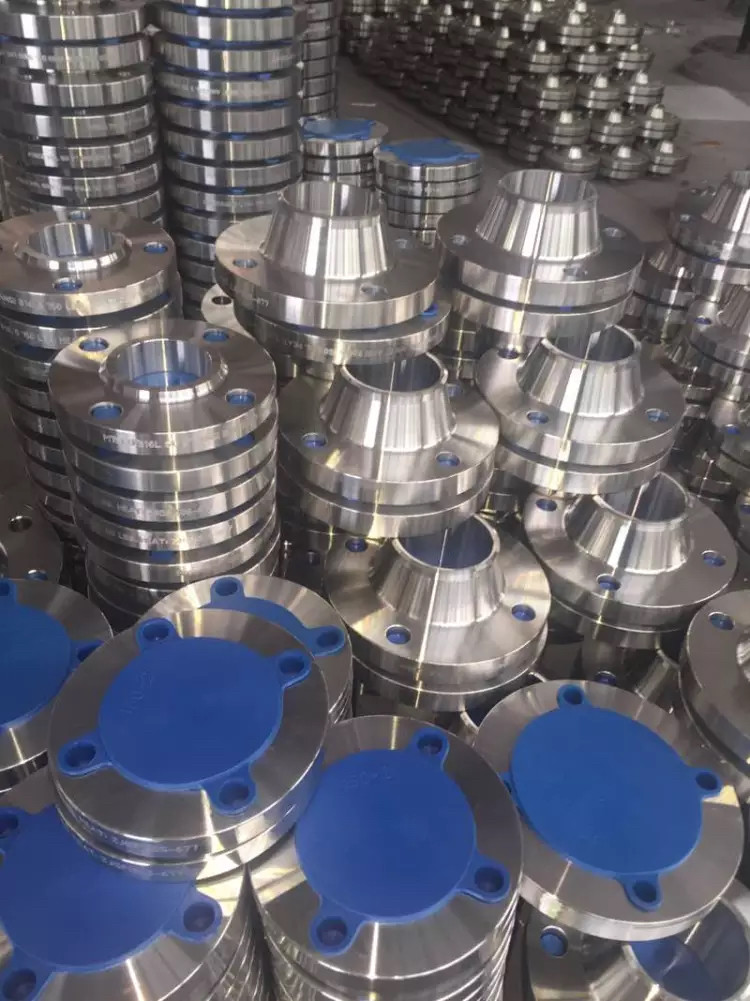

3: Product Show

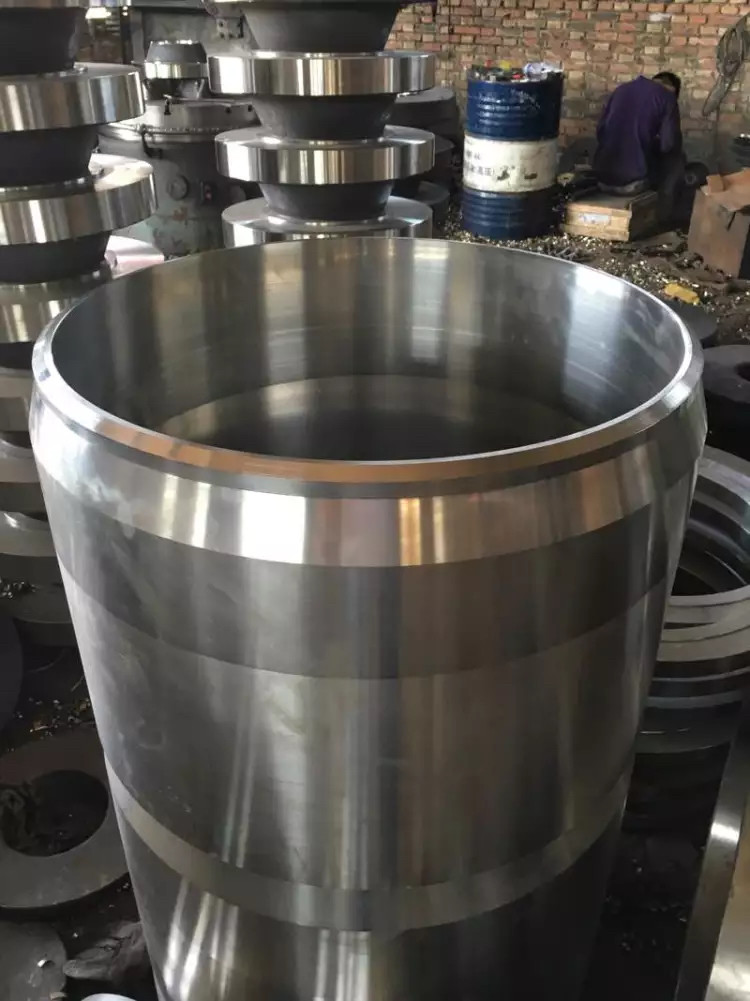

4: Flange Process
6:Packing and Shiping
