NFA 49-710 Polyethylene Coated Steel Pipe 610 x 6.3 Thickness St 52.0 Grade
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API/CE/TUV/ISO |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | 1 Tons |
| Price | 450 usd/ton |
| Packaging Details | Bare Packing, Seaworthy Packing or As Required |
| Delivery Time | 10~120 (according to the order quantity) |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000Ton/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | NFA 49-710, | Grade Gruop | St 52.0 |
|---|---|---|---|
| Thickness | 610 X 6.3 | Out Diameter | 355.6-1229mm |
| Surface | PE/2PE/3PE | Keyword | Epoxy |
| Usage | Oil/gas/water Pipe,structure | Din Standard | 3L-PE DIN 30 670 |
| High Light | coated steel tube,pe coated steel pipepe |
||
Product Description
Product Name : NFA 49-710, Coated steel pipe 610 x 6.3 - St 52.0 Polyethylene coating 3L-PE DIN 30 670-N-n
External coating
CPW has two high capacity anti-corrosion coating lines suitable for coating a full range of welded and seamless pipes from 4.5” up to 100” diameter and 23,2 min length.
Our anti-corrosion coatings include single and dual layer fusion bonded epoxy (FBE), three layer polyethylene (3LPE) and three layer polypropylene (3LPP) systems.
- CPW offers pipes in compliance with all major international standards used for coating onshore and offshore pipelines such as DNV RP F106, ISO 21809-1,2, NFA 49-71
- NFA 49-711, CAN CSA Z245.20, CAN CSA Z245.21, DEP 31.40.30.31or DIN30670, DIN30671, DIN30678 supplemented where necessary by additional client specification requirements addressing industry requirements
CPW’s external coating solutions will provide the optimum combination of resistance to chemical and physical changes arising from:
- Heat aging
- Ultra Violet radiation
- Corrosive soil
- Sweet water
- Salt water
- Micro-organisms
- Atmospheric corrosion
- Water vapour
- Cathodic disbondment
Mechanical and physical impact resistance is also vital and our coating solutions will provide high levels of protection against damage during
- Handling
- Transportation
- Stockpiling
- Installation
- Burial
Coated pipes supplied by CPW ensure the pipeline will withstand prolonged exposure to harsh environmental conditions with as little maintenance as possible, ensuring a long and predicable lifespan.
| Coating grade | Coating type | Coating thickness depending on the pipe outer diameter [mm] | ||||
| 159 – 273 | 323,9 – 457 | 508 – 559 | 610 – 762 | 813 – 1420 | ||
| Polietylenowa | N-n, S-n | 2 | 2,2 | 2,5 | 2,5 | 3 |
| N-v, S-v | 2,7 | 2,9 | 3,2 | 3,2 | 3,7 | |
| Polipropylenowa | standardowa | 2 | 2,2 | 2,2 | 2,5 | 2,5 |
Note: for the diameters over 1420 mm are made coating by polyethylene tapes acc. to DIN 30672 class B30, C30 and C50.
N-n, N-v coating with low density polyethylene (LDPE) or medium density polyethylene (MDPE) with regular –n and reinforced –v thickness
S-n, S-v coating with high density polyethylene (HDPE) with regular –n and reinforced –v thickness
Anticorrosive coating 3LPE/ 3LPP according to PN-EN ISO 21809-1 is composed of:
- epoxy layer of minimum 125 μm thickness,
- copolymer layer of minimum 150 μm thickness,
- polyethylene or polypropylene layer from 1,8 mm to 4,7 mm.
Layer thickness
| C kg/m | Klasa A1 | Klasa A2 | Klasa A3 | Klasa B1 | Klasa B2 | Klasa B3 | Klasa C1 | Klasa C2 | Klasa C3 |
| ≤15 | 1,8 | 2,1 | 2,6 | 1,3 | 1,8 | 2,3 | 1,3 | 1,7 | 2,1 |
| 15≤ C ≤50 | 2,0 | 2,4 | 3,0 | 1,5 | 2,1 | 2,7 | 1,5 | 1,9 | 2,4 |
| 50≤ C ≤130 | 2,4 | 2,8 | 3,5 | 1,8 | 2,5 | 3,1 | 1,8 | 2,3 | 2,8 |
| 130≤ C ≤300 | 2,6 | 3,2 | 3,9 | 2,2 | 2,8 | 3,5 | 2,2 | 2,5 | 3,2 |
| 300 < C | 3,2 | 3,8 | 4,7 | 2,5 | 3,3 | 4,2 | 2,5 | 3,0 | 3,8 |
The coating manufacturing process consists of the following operations:
- the surface blast cleaning to Sa 2 1/2 acc. to ISO 8501-1,
- the electrostatic spraying of epoxy powder onto a heated pipe,
- wrapping a pipe with extruded copolymer,
- wrapping a pipe with polyethylene/polyetylene in continuous way,
- cooling the coating and dressing the pipe ends.
An extruded polyethylene coating has higher mechanical properties in comparison with cold applied polyethylene tape coating. Anticorrosive coatings made of three-layer PE/PP are characterized by:
- high mechanical strength,
- high adherence of the coating to the pipe,
- guaranteed long lasting anticorrosive protection of underground pipelines for minimum 50 years,
- 100% protection of weld zone of coated longitudinally and spirally welded pipes,
- suitability for bending of coated steel without damaging the insulation layer.

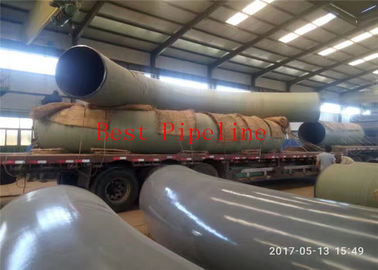

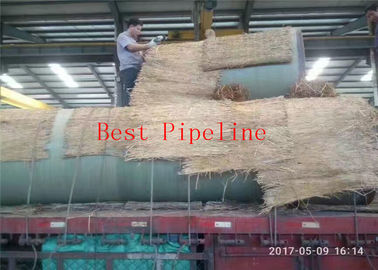

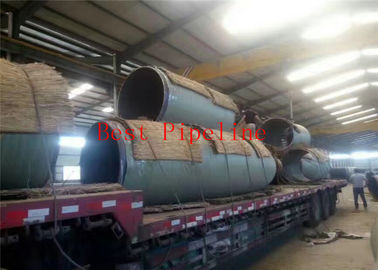

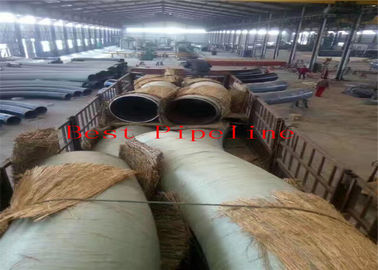

NFA 49-710, Coated steel pipe Picture
