DIN 11851 Forged Pipe Fittings , Socket Weld Stainless Steel Pipe Fittings 　

Product Name : Liner threaded outsinde DIN 11851 304(L) Standard : ASME B16.11 With : Stainloess Steel Forged Fittings

Product DESIGN / DIMENSIONS


According to: ASME B16.11, MSS SP95, BS 3799 MSSSP83
From 1/8" TO 4"

RATING / SCHED.

· BW: 40/STD/80/160/XS/XXS

· SW: 3000/6000/9000

· NPT: 2000/3000/6000



   EXAGONAL-BUSHING

  EXAGONAL BUSHING is a forged fittings manufactured in accordance with B16.11.
  EXAGONAL BUSHING is a fitting used to joint two threaded items of different size

TEE

   TEE is a forged fitting used for splitting and changing flow direction of run pipe of 90° deg.
   It is available in two categories:

· EQUAL if header and branch pipe have the same size

· REDUCED if header and branch pipe have the different size

· TEE can be manufactured with butt-weld extremities, socket extremities or threaded extremities.

· Dimensions of TEE can be in accordance with ASME B16.9, MSS SP-75.
TEE can be manufactured on customer’s request with a special design.

·

·

COUPLING

COUPLING is a forged fittings manufactured in accordance with B16.11.
COUPLING is a fitting that allows two pipes to be joint together.
COUPLING can per manufactured with socket-weld extremities, threaded extremities or a combination of the two

HALF-COUPLING

HALF-COUPLING is a forged fittings manufactured in accordance with B16.11.
HALF-COUPLING is a fitting that allows one pipe and one fitting to be joint together.
HALF-COUPLING can per manufactured with socket-weld extremity or threaded extremity

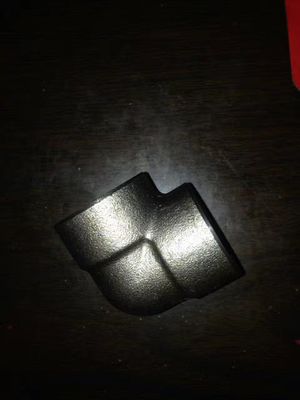

Product Show
