Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection

Place of Origin China
Brand Name Best
Certification API/CE/ISO /TUV
Model Number 1/2''-48''
Minimum Order Quantity 1 PCS
Price 1 usd/pcs
Packaging Details wooden case and pallet or as per client demand
Delivery Time oil gas water industrial
Payment Terms L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability 100000 Ton/ year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Carbon Steel Technics Forged
Connection Welding Surface Black Painting, Rust-proof Oil,
Tolerances ASME B16.9 Usage Oil Gas Water Industrial
Standard Oil Gas Water Industrial Production Year 2018
High Light

butt weld tube fittings

,

butt weld connection

Leave a Message
Product Description

Product Name : BUTT WELDING FITTINGS ACCORDING TO ANSI/ASME from 1/2 in. to 24 incertified acc. to EN 10204/3.1.

Rohrbogen 90°
Geschweißte Ausführung, DIN EN 10253-4 -w- Bauart A, Typ 2D
Elbow 90°
welded, DIN EN 10253-4/A -w- type 2D



Rohrbogen 90°
nahtlose Ausführung, EN 10253-4 -s- Bauart A, Typ 3D,
AD 2000-W2/W10, HP 8/3, VdTÜV 1252
Elbow 90°
seamless, EN 10253-4/A -s- type 3D,
AD 2000-W2/W10, HP 8/3, VdTÜV 1252

Rohrbogen 90°
geschweißte Ausführung, EN 10253-4 -w- Bauart A, Typ 3D,
geschliffen K 240
Elbow 90°
welded, EN 10253-4/A -w-, type 3D,
polished gritt 240



KS : KOREAN INDUSTRIAL STANDARDS
KSB 1522 : Steel Butt Welding Pipe Fittings for Oidinary use  and Fuel Gas.
KSB  1541:  Steel Butt Welding Pipe Fittings.
KSB 1542 : Steel Socket Welding Pipe Fittings.
KSB 1543 : Steel Plate Butt Welding Pipe Fittings.


JIS : JAPANESE INDUSTRIAL STANDARDS
JIS B2311 : Steel Butt Welding Pipe Fittings for Ordinary use.
JIS B2312:  Steel Butt Welding Pipe Fittings.
JIS 2313 : Steel Plate Butt Welding Pipe Fittings.
JIS B2316 : Steel Socket Welding Pipe Fittings.



ASTM : AMERICAN SOCIETY FOR TESTING AND MATERIALS
ASTM A105:  Carbon Steel Forgings for Piping Applications
ASTM A182:  Forged or Rolled Alloy Steel Pipe Flanges, Forged Fittings, and Valves and Parts for high Temperature Service
ASTM A234:  Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service
ASTM A350: Carbon and Low-Alloy Steel Forgings, Requiring Notch
Toughness Testing for Piping Components
ASTM A403 : Wrought Austenitic Stainless Steel Piping Fittings

ASTM A420 : Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service
ASTM A694: Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service
ASTM A815 : Wrought Ferritic, Ferritic/Austenitic, and Martensitic
Stainless Steel Piping Fittings
ASTM A860: Wrought High-Strength Low-Alloy Steel Butt-Welding
Fittings
ASTM B366  : Factory-Made Wrought Nickel and Nickel Alloy Fittings





MSS : MANUFACTURERS STANDARDIZATION SOCIETY OF THE VALVE AND FITTINGS INDUSTRY
MSS SP-25: Standard Marketing System for Valves, Fittings, Flanges and Unions.
MSS SP-43: Wrought Stainless Steel Butt Welding Fittings.
MSS SP-44: Standard for Steel Pipe Line Flanges.
MSS SP-75: Specification for High Test Wrought Butt Welding Fittings.
MSS SP-79: Socket Welding Reducer Inserts.
MSS SP-83: Carbon Steel Pipe Union Socket welding and Threaded.
MSS SP-87: Factory-Made Butt Welding Fittings for Class 1 Nuclear Piping Applications.
MSS SP-95: Swage(d) Nipples and Bull Plugs.
MSS SP-97:  Integrally Reinforced Forged Branch Outlet Fittingssocket
Welding, Threaded and Butt Welding Ends



ASME : AMERICAN SOCIETY OF MECHANICAL ENGINEERS
ASME : ASME BOILER AND PRESSURE VESSEL CODE AN
INTERNATIONAL CODE

ASME B16.5 : Pipe Flanges and Flanged Fittings.
ASME B16.9 : Factory Made Wrought Steel Butt Welding Fittings.
ASME B16.11 : Forged Fittings, Socket welding and Threaded
ASME B16.25 : Butt Welding Ends.
ASME B36.10 : Welded and Seamless Wrought Steel Pipe.
ASME B36.19: Stainless Steel Pipe.
ASME B31.1 : Power piping.
ASME B31.3: Process piping.
ASME Section  : Materials.
ASME Section: Rules for Construction of Nuclear Facirity Components.
ASME Section:Nondestructive Examination.
ASME Section: Rule for Construction of Pressure Vessels.
ASME Section: Welding and Brazing Qualifications.



Product Information :



size 1/2"-72"(DN15-DN1200)1.5*1.5~80*80
connection welding
technic forged
varieties SCH20, SGP, STD, SCH40, SCH80, SCH160
material carbon steel ,alloy steel ,stainless steel WPBA234,Q235,20#,A420 A403-WP304,A403-WP316,A403-WP316L,A403-WP317,A403-WP321 etc.
standard BS, DIN ,JIS,etc. ANSI B16.9/16.28, ASTM,API 5L, DIN2605/2615/2616, JIS P2311/2312 ASME B36.10M---1996
connection welding
quality first grade
Certification ISO9001 - 2000, CE, SGS, etc.
Application petroleum, electricity, chemicals, natural gas, construction, shipbuilding and other fields because of its high pressure, high temperature, etc
Packaging wooden case,pallet ,container or in accordance with the requirements of customers
principle quality first,customer first,credit first,
delivery time 7-25 days after payment
payment L/C T/T
Surface treatment Black rust-proof oil, transparent oil, hot galvanizing
notes The bevel can be made according to the special requirements of the customers
others we can also produce the products accordance with the requirements of customers





Pipe Caps Information :

PIPE CAP
Type BW(butt-welding); High pressure cap ; Threaded cap, Seamless cap; Welded cap, carbon steel pipe fitting
Standard ANSI B16.9 / 16.28, API 5L, ASME B36.10M---1996, DIN2605/2615/2616, JIS P2311/2312
Size 1/2" ~ 48"( Seamless); 16" ~ 72"(Welded)
Wall Thickness SGP ~ SCH XXS
Surface treatment Transparent oil, rust-proof oil or hot galvanizing.





Elbow Information :

ELBOW TECHNICAL INFORMATION:
Type BW(butt-welding); SW(socket-welding); Threaded elbow; Seamless elbow; Welded elbow carbon steel pipe fitting
Standard

ASME/ANSI B16.9, B16.11, B16.28, B16.5; MSS SP-43, 83,

SY/T051-1998, SY5257-91

Size 1/2" ~ 48"( Seamless); 16" ~ 72"(Welded)
Wall Thickness SCH 5 ~ SCH XXS
Radius LR(R=1.5D); SR(R=1.0D), Special design available.
Angel 45°,60°, 90°,180°,Special design available.
Surface treatment Transparent oil, rust-proof black oil or hot galvanized.





Tee Information :

TEE
Type carbon pipe fittings Equal tee; Reducing tee; Y type; 45°type; welded tee; seamless tee; BW(butt-welding)
Standard ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M---1996, DIN2605 / 2615 / 2616, JIS
Size 1/2" ~ 48"( Seamless); 16" ~ 72"(Welded)
Wall Thickness SCH 5 ~ SCH XXS
Surface treatment Transparent oil, rust-proof oil or hot galvanizing.





Company Information :

We are a real and direct manufacturer of B.W. pipe fitting,such as elbow, bend, reducer,cap, flange and tee. The above item is a very common-uesd Tee.

Nearly every mill of pipe fitting can produce.But capability of manufacturing is not the

key to make the customer sastified.The capability of quality-controlling shows

the importance.

In order to make every piece of products in good quality, Best Pipeline, invested USD285000.00 to build professional testing laboratory and trained a team of technicians.

So, the metallographical examination,chemicial composition, mechnical properties

,hardness and all out-side measurements will be carefully checked and well-controlled.



With the development of 10 years, our pipe fittings are exported to all over the world, the middle east, southeast Asia, south America, central Asia, Taiwan etc.

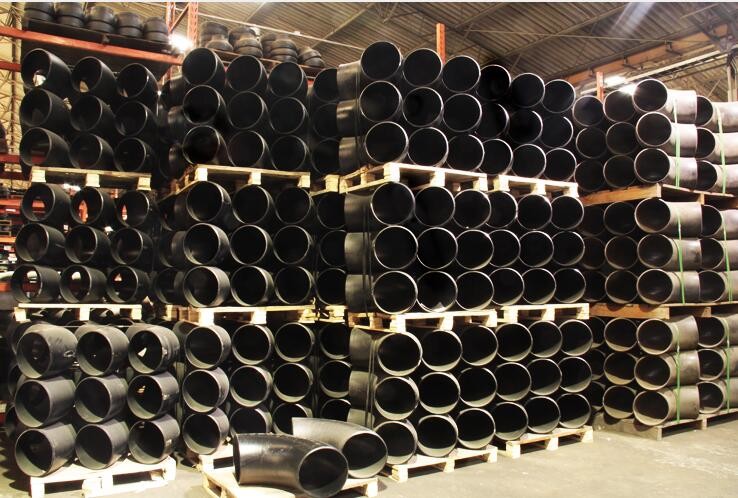

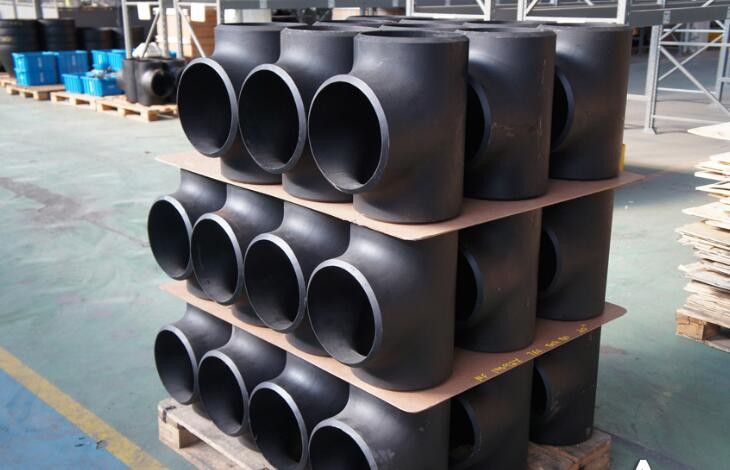

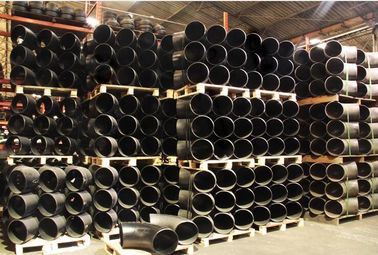

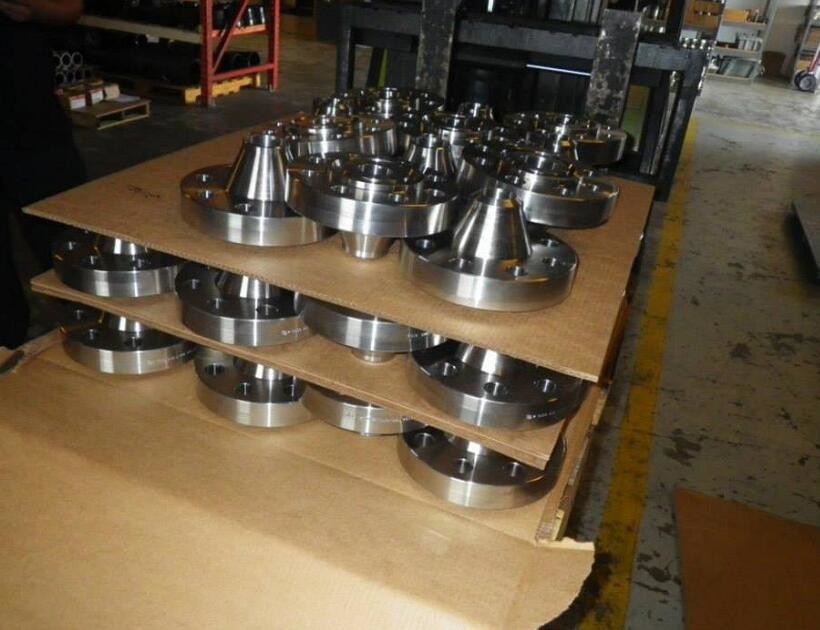

Product Show

Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 0Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 1Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 2Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 3

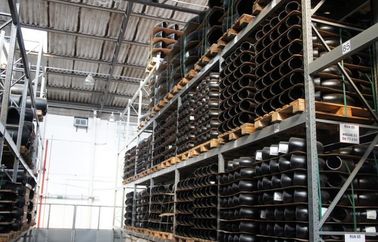

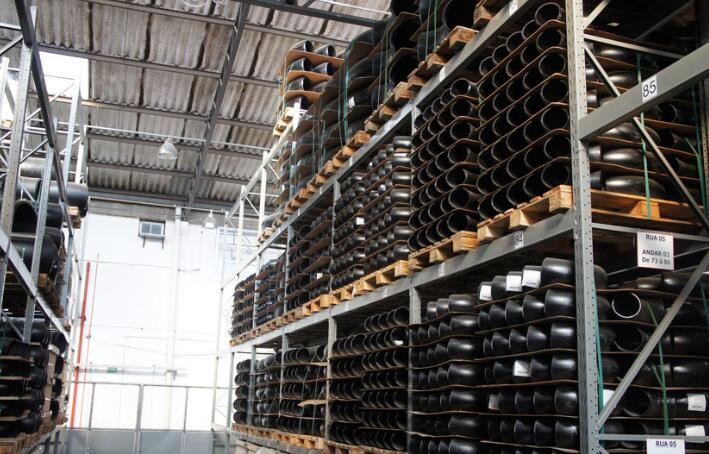

Packing &Shipping

Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 4Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 5Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 6Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 7Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 8

Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 9

Analog DIN EN 10253 / DIN 2615 Butt Weld Fittings Forged Welding Connection 10
