ASTM A213 T11 Alloy Steel Pipe P11 Alloy Steel SCH 40 Fabricated Type
| Place of Origin | China/Japan |
|---|---|
| Brand Name | BEST |
| Certification | API, CE, PED, ISO |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Pipes May be furnished bard or coated and with capped ends |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C /TT |
| Supply Ability | 10000ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Special | Alloy Steel T11 Seamless Boiler Tube Specification | Standard | ASTM A213 Gr. T11 Alloy Steel Tubes Chemical Composition |
|---|---|---|---|
| Size | 6.35mm O.d To 101.60mm O.d | Schedule | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules, Upto 12mm Thk |
| Packing | Pipes May Be Furnished Bard Or Coated And With Capped Ends | Type | Seamless / Fabricated |
| Test | Heat Analysis/Tensile Test/Impact Test /NDE/PMI | Surface | Black Painted,PE Coated |
| High Light | alloy steel pipe,alloy steel seamless tubes |
||
Product Description
Name : ASME / ASTM A213 Alloy Steel seamless T11 Tubes such as Corrosion Resistance, High Performance, Toughness,
ASTM A213 Alloy Steel T11 Pipes is also extremely recognized by our customers for rigid construction, high performance, corrosion resistance, durability and precise dimensions.By providingASME SA 213 Alloy Steel T11 Pipes, we have been fulfilling the requirements of the automotive, oil and gas industries, power plants,shipbuilding, and more.Patrons can avail these Alloy Steel T11 Pipes from us at standard industry rates.
| Specifications | : | ASTM A 213 / ASME SA 213 |
| Dimensions | : | ASTM, ASME and API |
| Range | : | 1/2” OD up to 5” OD, customs diameters also available |
| Size | : | 6.35mm o.d to 101.60mm o.d |
| Schedule | : | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules, upto 12mm thk |
| Type | : | Seamless / Fabricated |
| Form | : | Round, Square, Rectangular, Hydraulic Etc. |
| Length | : | Single Random, Double Random & Cut Length. |
| Tubing End | : | Plain End, Beveled End, Treaded. |
ASTM A213/ASME SA213 T11 High Pressure Steel Tube Chemical Composition :
| Grade | UNS | C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| T11 | K11597 | 0.15 max | 0.30-0.60 | 0.025 max | 0.025 max | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
Seamless Heat Exchange Alloy Steel T11 Tubes Mechanical properties:
| Tensile Strength , MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
| 415 min | 205 min | 30 min | 179 max |
Outside Diameter & Tolerance :
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |

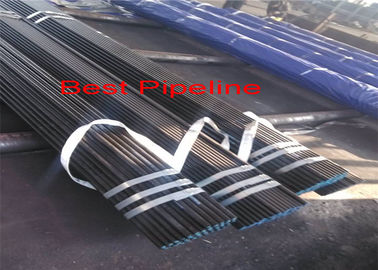

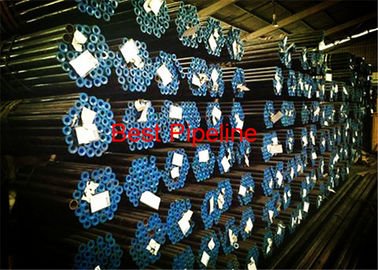

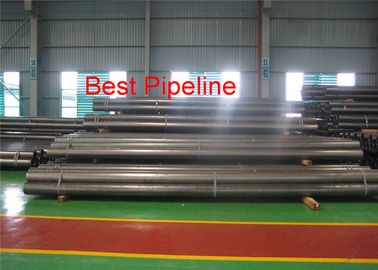

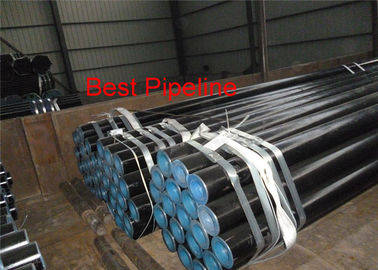

ASTM A213/ASME SA213 T11 High Pressure Steel Tube Pictures
