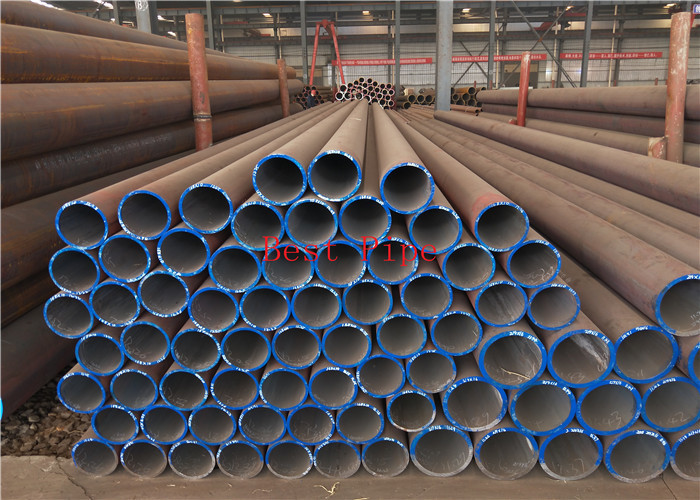

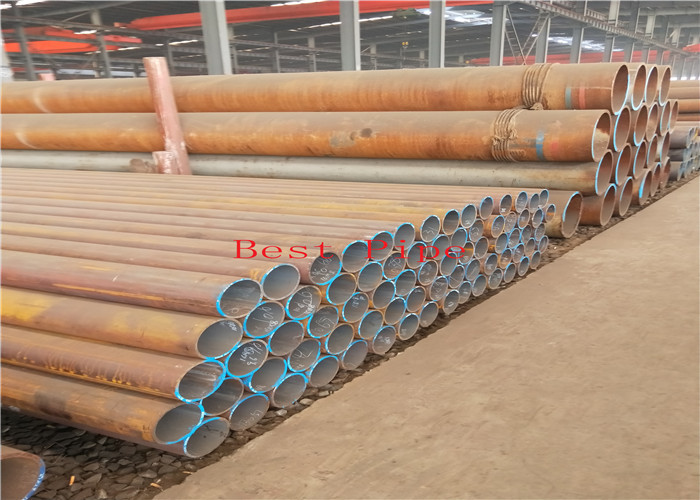

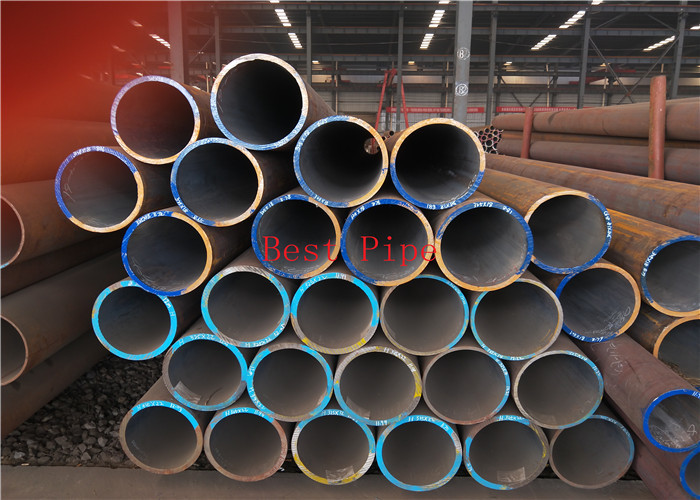

Grade T23 P23 Alloy Steel Seamless Pipes , High-temperature Strength Steam Boiler Tubes
| Place of Origin | China/Japan |
|---|---|
| Brand Name | BEST |
| Certification | API, CE, PED, ISO |
| Model Number | 1/2''-48'' |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Pipes May be furnished bard or coated and with capped ends |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C /TT |
| Supply Ability | 10000ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| OD Tolerance | ±1% Or ±0.5mm , Whichever Is The Greater | Standard | API / GB / DIN/ ASTM /EN |
|---|---|---|---|
| Certificate | EN10204 -3.1 /3.2 | Packing | Pipes May Be Furnished Bard Or Coated And With Capped Ends |
| Specific Qualification | TUV:AD WO-TRD100 / PED97/23/EC /IBR | Test | Heat Analysis/Tensile Test/Impact Test /NDE/PMI |
| High Light | alloy steel seamless tubes,seamless alloy steel tube |
||
Product Description
Name : T23/P23 (7CrWVMoNb9-6) ferritic/bainitic-martensitic Seamless hot finished tubes and pipes
These Pipes Can be used for: Boiler superheater and reheater tubes and water wall panels in complex fossil-fuelled power plants and HRSG (Heat Recovery Steam Generators)
DEFINITION
Grade T/P23 is a ferritic/bainitic-martensitic (2.25 % chromium, 1.6 % tungsten, 0.2 % molybdenum) steel, micro-alloyed with vanadium and niobium and having controlled boron and nitrogen contents according to ASTM A 335, A 213 or to EN 10216-2 standard under the designation 7CrWVMoNb9-6. It was introduced into the ASME Code with Code Case 2199 in 1995.
APPLICATION
This grade can be used for:
- Boiler superheater and reheater tubes and water wall panels in complex fossil-fuelled power plants and HRSG (Heat Recovery Steam Generators)
- Headers and steam piping in fossil-fuelled power plants
- Repair and revamping projects involving the replacement of steels such as ASTM T/P22 (EN10216-2 10CrMo9-10), T/P12 (13CrMo4-5) or 14MoV6-3.
CHALLENGES
Grade T/P23 exhibits superior high-temperature strength and creep behavior compared to other low-alloy ferritic steels.
Accordingly, the weight of boiler and piping components in this steel can be reduced and they possess increased resistance to thermal fatigue. Compared with austenitic steels, grade T/P23 has higher heat transfer and lower thermal expansion coefficients. Low tube hardness in the as-welded condition cuts out the need for preheating and post-weld heat treatment.
Chemical Composition - ASTM A213 T23 Tubes
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- Physical Properties - ASTM A213 T23 Tubes
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
- ASTM A213/ASME SA213 T23 Tubes Specification
- Port: Tianjin, Qingdao , Shanghai
Payment Terms: L/C, T/T, Western Union
Standard: ASTM A213, ASME SA213
Equivalent Standards: EN 10216-2, ASTM A213, GOST 550-75
Material: T23, K41650
Equivalent Material: P23,K41650 - SPECIAL NOTICE
- To the Users of ASME Boiler and Pressure Vessel Code
- Code Case 2199, 2199-1, 2199-2, and 2199-3
2.25Cr-1.6W-V-Cb Material (Section I) - Other Available Products of Alloy Steel ASTM A213 T23 Tube
